H200 上的 GLM-5.2 吞吐量优化

结论

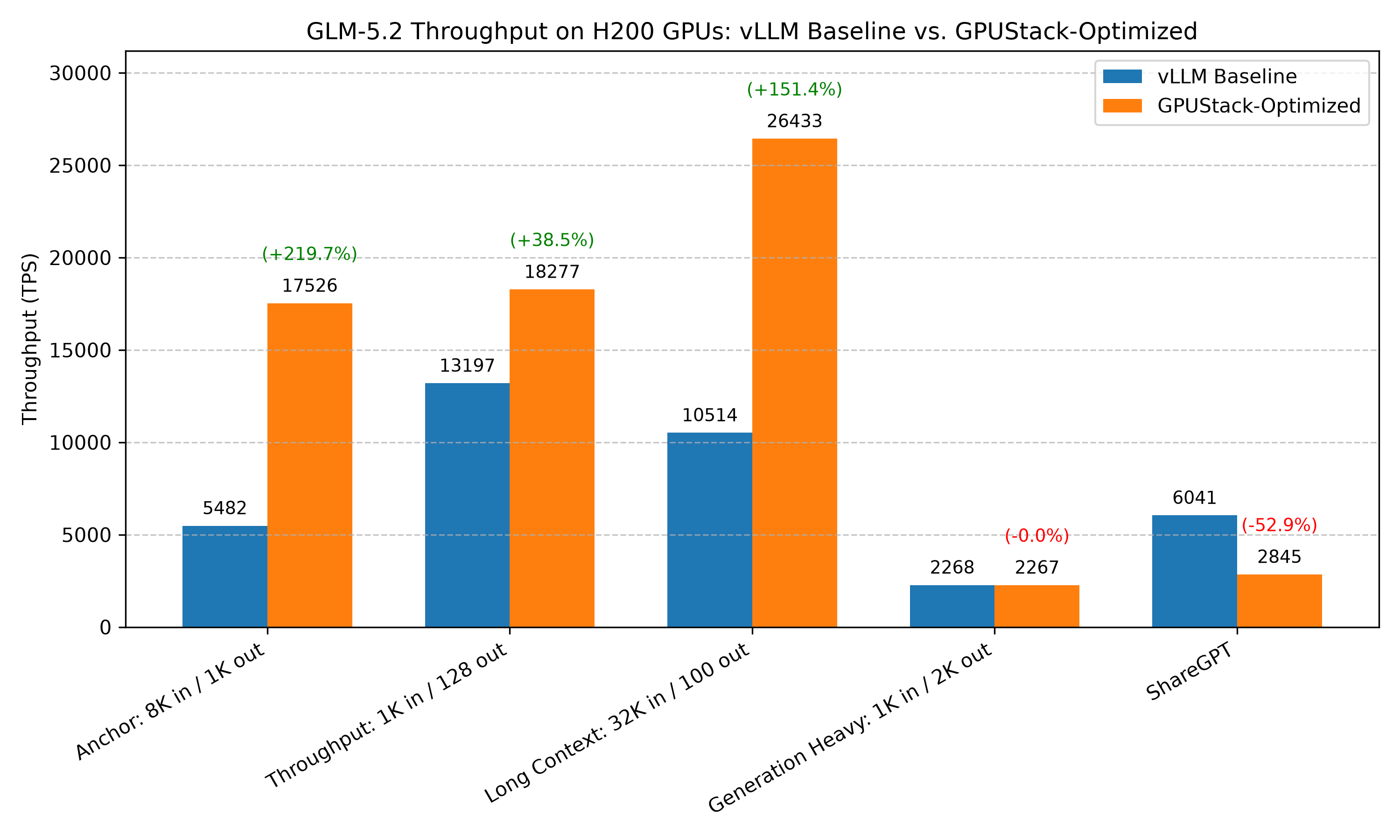

吞吐量优化结果

zai-org/GLM-5.2-FP8 在 NVIDIA H200x8 上的吞吐量优化推荐配置：

推理服务命令
1
2
3
4
5
6
7
8
9
python3 -m sglang.launch_server \
    --model-path zai-org/GLM-5.2-FP8 \
    --tp-size=8 \
    --dp-size=8 \
    --enable-dp-attention \
    --mem-fraction-static=0.85 \
    --moe-a2a-backend=deepep \
    --max-running-requests=256 \
    --kv-cache-dtype=fp8_e4m3

优化前后的基准测试结果对比：

基准测试用例 基准配置（未做任何优化的 vLLM） 优化后
均衡： 8K 输入 / 1K 输出 (优化目标) Total TPS: 5481.90
Mean TPOT(ms): 636.24		 Total TPS: 17525.76 (+219.70%)
Mean TPOT(ms): 217.89
短上下文 (1K 输入 / 128 输出) Total TPS: 13196.90
Mean TPOT(ms): 316.73		 Total TPS: 18276.60 (+38.49%)
Mean TPOT(ms): 211.06
长上下文 (32K 输入 / 100 输出) Total TPS: 10513.68
Mean TPOT(ms): 1320.02		 Total TPS: 26433.15 (+151.42%)
Mean TPOT(ms): 537.26
生成密集型 (1K 输入 / 2K 输出) Total TPS: 2268.18
Mean TPOT(ms): 42.11		 Total TPS: 2267.33 (-0.04%)
Mean TPOT(ms): 46.54
ShareGPT Total TPS: 6040.94
Mean TPOT(ms): 149.24		 Total TPS: 2845.48 (-52.90%)
Mean TPOT(ms): 331.21

说明

  1. 基准测试未覆盖所有可能的优化组合。例如，我们会选择默认配置下表现最好的推理引擎作为后续调优的起点。这种剪枝方式得到的是局部最优解，未必是全局最优解。
  2. 其他优化方法取决于具体使用场景，包括最大批大小、调度配置、扩展 KV cache、CUDA graph 等。本文结论可作为进一步针对性优化的起点。
  3. 测试基于特定的硬件和软件环境。推理引擎的改进可能带来新的结论。
  4. 量化可能影响准确率，但对于大多数模型，FP8 量化的准确率下降可控制在 1% 以内。详情参见评估结果。因此，强烈建议在低延迟推理服务场景中使用 FP8 量化。
  5. 推荐配置针对高并发、中长输入场景调优（以 8K 输入 / 1K 输出工作负载为基准）。对于 ShareGPT 等短输入、短输出的对话工作负载，其性能低于单纯使用张量并行，因为 DP-attention 和 DeepEP 优化面向长序列，短请求无法摊薄这些优化的额外开销（参见“其他基准测试用例”中的 ShareGPT）。这一取舍符合 GLM-5.2 的目标场景：其较强的编程能力使编程 Agent 推理服务成为主要使用场景，而该场景通常具有较长上下文，恰好适合本配置。

如有遗漏或需要根据最新变化更新的内容，请告诉我们。

实验环境

模型

zai-org/GLM-5.2-FP8

硬件

NVIDIA H200x8

引擎版本

  • vLLM v0.24.0
  • SGLang v0.5.14

基准测试方法

本项目使用 GPUStack 的一键基准测试功能评估推理服务工作负载。本文中的基准测试均通过该流程执行。

GPUStack 的基准测试通过封装项目 benchmark-runner，基于 guidellm 实现。

对于以下基准测试配置，GPUStack 负责模型部署、基准测试任务提交和结果收集。

基准测试配置

均衡
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 8192
dataset_output_tokens: 1024
dataset_seed: 42
request_rate: 1000
total_requests: 1000
短上下文
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 1024
dataset_output_tokens: 128
dataset_seed: 42
request_rate: 1000
total_requests: 1000
长上下文
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 32000
dataset_output_tokens: 100
dataset_seed: 42
request_rate: 1
total_requests: 100
生成密集型
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 1000
dataset_output_tokens: 2000
dataset_seed: 42
request_rate: 1
total_requests: 200
ShareGPT
1
2
3
dataset_name: ShareGPT
request_rate: 1000
total_requests: 1000

实验结果

选择推理引擎

vLLM

  • 测试配置：Balanced
  • 后端参数：
    1
    --tensor-parallel-size=8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1684.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.59
Output token throughput (tok/s):         608.31
Peak output token throughput (tok/s):    21900.04
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5481.90
----------------------Latency---------------------
Mean Latency(s):                          651.51
Median Latency(s):                        823.57
P95 Latency(s):                           857.92
P99 Latency(s):                           858.57
---------------Time to First Token----------------
Mean TTFT (ms):                          592315.54
Median TTFT (ms):                        762631.30
P95 TTFT (ms):                           799738.92
P99 TTFT (ms):                           800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          636.24
Median TPOT (ms):                        804.27
P95 TPOT (ms):                           837.81
P99 TPOT (ms):                           838.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.86
Median ITL (ms):                         56.85
P95 ITL (ms):                            69.41
P99 ITL (ms):                            90.01
==================================================

SGLang

  • 测试配置：Balanced
  • 后端参数：
    1
    --tp-size=8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1425.58
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         719.90
Peak output token throughput (tok/s):    36770.60
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6487.53
----------------------Latency---------------------
Mean Latency(s):                          553.77
Median Latency(s):                        674.98
P95 Latency(s):                           738.28
P99 Latency(s):                           1087.06
---------------Time to First Token----------------
Mean TTFT (ms):                          499353.08
Median TTFT (ms):                        640537.31
P95 TTFT (ms):                           692823.09
P99 TTFT (ms):                           694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          540.79
Median TPOT (ms):                        659.16
P95 TPOT (ms):                           720.97
P99 TPOT (ms):                           1061.58
---------------Inter-token Latency----------------
Mean ITL (ms):                           53.19
Median ITL (ms):                         41.87
P95 ITL (ms):                            53.14
P99 ITL (ms):                            661.38
==================================================
  • 汇总：SGLang Total TPS = 6487.53, vLLM Total TPS = 5481.90. SGLang 性能更优，差值为 1005.62 tok/s (18.34%); Mean TPOT = 540.79 ms 与 636.24 ms, 减少 95.45 ms (15.00%).

并行策略

TP

  • 测试配置：Balanced
  • 后端参数：
    1
    --tp-size=8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1425.58
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         719.90
Peak output token throughput (tok/s):    36770.60
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6487.53
----------------------Latency---------------------
Mean Latency(s):                          553.77
Median Latency(s):                        674.98
P95 Latency(s):                           738.28
P99 Latency(s):                           1087.06
---------------Time to First Token----------------
Mean TTFT (ms):                          499353.08
Median TTFT (ms):                        640537.31
P95 TTFT (ms):                           692823.09
P99 TTFT (ms):                           694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          540.79
Median TPOT (ms):                        659.16
P95 TPOT (ms):                           720.97
P99 TPOT (ms):                           1061.58
---------------Inter-token Latency----------------
Mean ITL (ms):                           53.19
Median ITL (ms):                         41.87
P95 ITL (ms):                            53.14
P99 ITL (ms):                            661.38
==================================================

TP + DP-Attention

  • 测试配置：Balanced
  • 后端参数：
    1
2
    --tp-size=8
--enable-dp-attention
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1464.79
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.68
Output token throughput (tok/s):         707.03
Peak output token throughput (tok/s):    36792.16
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6371.59
----------------------Latency---------------------
Mean Latency(s):                          566.77
Median Latency(s):                        691.84
P95 Latency(s):                           758.76
P99 Latency(s):                           1226.15
---------------Time to First Token----------------
Mean TTFT (ms):                          508420.96
Median TTFT (ms):                        649948.91
P95 TTFT (ms):                           704806.45
P99 TTFT (ms):                           709287.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          553.48
Median TPOT (ms):                        675.62
P95 TPOT (ms):                           740.98
P99 TPOT (ms):                           1197.41
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.03
Median ITL (ms):                         40.44
P95 ITL (ms):                            52.07
P99 ITL (ms):                            658.59
==================================================

TP + DP + DP-Attention

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
    --tp-size=8
--dp-size=8
--enable-dp-attention
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1334.85
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         778.01
Peak output token throughput (tok/s):    33009.89
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          7011.17
----------------------Latency---------------------
Mean Latency(s):                          509.42
Median Latency(s):                        662.31
P95 Latency(s):                           667.58
P99 Latency(s):                           667.92
---------------Time to First Token----------------
Mean TTFT (ms):                          474839.81
Median TTFT (ms):                        625093.03
P95 TTFT (ms):                           635816.93
P99 TTFT (ms):                           636463.47
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          497.48
Median TPOT (ms):                        646.79
P95 TPOT (ms):                           651.93
P99 TPOT (ms):                           652.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           33.81
Median ITL (ms):                         33.03
P95 ITL (ms):                            37.77
P99 ITL (ms):                            38.03
==================================================

TP + DP + DP-Attention + EP

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
    --tp-size=8
--enable-dp-attention
--dp-size=8
--ep-size=8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1430.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         724.90
Peak output token throughput (tok/s):    36964.00
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6532.56
----------------------Latency---------------------
Mean Latency(s):                          546.29
Median Latency(s):                        710.24
P95 Latency(s):                           716.16
P99 Latency(s):                           716.23
---------------Time to First Token----------------
Mean TTFT (ms):                          509145.51
Median TTFT (ms):                        672291.77
P95 TTFT (ms):                           682441.07
P99 TTFT (ms):                           682611.26
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          533.49
Median TPOT (ms):                        693.59
P95 TPOT (ms):                           699.37
P99 TPOT (ms):                           699.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           36.31
Median ITL (ms):                         35.36
P95 ITL (ms):                            40.52
P99 ITL (ms):                            40.69
==================================================
  • 汇总：TP + DP + DP-Attention Total TPS = 7011.17, TP + DP-Attention Total TPS = 6371.59. TP + DP + DP-Attention 性能更优，差值为 639.58 tok/s (10.04%); Mean TPOT = 497.48 ms 与 553.48 ms, 减少 56.00 ms (10.12%).

内存占用比例

auto

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
    --tp-size=8
--dp-size=8
--enable-dp-attention
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1587.01
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.63
Output token throughput (tok/s):         652.68
Peak output token throughput (tok/s):    28960.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5881.79
----------------------Latency---------------------
Mean Latency(s):                          608.53
Median Latency(s):                        792.41
P95 Latency(s):                           798.47
P99 Latency(s):                           798.63
---------------Time to First Token----------------
Mean TTFT (ms):                          565850.91
Median TTFT (ms):                        749005.91
P95 TTFT (ms):                           758437.70
P99 TTFT (ms):                           759022.89
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          594.26
Median TPOT (ms):                        773.84
P95 TPOT (ms):                           779.76
P99 TPOT (ms):                           779.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           41.71
Median ITL (ms):                         41.02
P95 ITL (ms):                            45.77
P99 ITL (ms):                            45.99
==================================================

0.8

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  890.94
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.12
Output token throughput (tok/s):         1173.22
Peak output token throughput (tok/s):    36646.25
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          10572.77
----------------------Latency---------------------
Mean Latency(s):                          352.36
Median Latency(s):                        385.98
P95 Latency(s):                           453.81
P99 Latency(s):                           743.15
---------------Time to First Token----------------
Mean TTFT (ms):                          283237.85
Median TTFT (ms):                        338538.99
P95 TTFT (ms):                           395476.65
P99 TTFT (ms):                           398036.19
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          344.10
Median TPOT (ms):                        376.93
P95 TPOT (ms):                           443.17
P99 TPOT (ms):                           725.73
---------------Inter-token Latency----------------
Mean ITL (ms):                           67.57
Median ITL (ms):                         52.23
P95 ITL (ms):                            61.80
P99 ITL (ms):                            400.53
==================================================

0.85

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  688.60
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1527.01
Peak output token throughput (tok/s):    46500.08
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13760.98
----------------------Latency---------------------
Mean Latency(s):                          273.29
Median Latency(s):                        272.67
P95 Latency(s):                           362.52
P99 Latency(s):                           488.73
---------------Time to First Token----------------
Mean TTFT (ms):                          201642.60
Median TTFT (ms):                        219374.83
P95 TTFT (ms):                           293139.84
P99 TTFT (ms):                           297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.89
Median TPOT (ms):                        266.28
P95 TPOT (ms):                           354.02
P99 TPOT (ms):                           477.28
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.04
Median ITL (ms):                         65.72
P95 ITL (ms):                            85.73
P99 ITL (ms):                            276.51
==================================================
  • 汇总：0.85 Total TPS = 13760.98, auto Total TPS = 5881.79. 0.85 性能更优，差值为 7879.19 tok/s (133.96%); Mean TPOT = 266.89 ms 与 594.26 ms, 减少 327.38 ms (55.09%).

分块预填充大小

default

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  688.60
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1527.01
Peak output token throughput (tok/s):    46500.08
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13760.98
----------------------Latency---------------------
Mean Latency(s):                          273.29
Median Latency(s):                        272.67
P95 Latency(s):                           362.52
P99 Latency(s):                           488.73
---------------Time to First Token----------------
Mean TTFT (ms):                          201642.60
Median TTFT (ms):                        219374.83
P95 TTFT (ms):                           293139.84
P99 TTFT (ms):                           297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.89
Median TPOT (ms):                        266.28
P95 TPOT (ms):                           354.02
P99 TPOT (ms):                           477.28
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.04
Median ITL (ms):                         65.72
P95 ITL (ms):                            85.73
P99 ITL (ms):                            276.51
==================================================

8K

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--chunked-prefill-size=8192
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  689.11
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1526.75
Peak output token throughput (tok/s):    52394.68
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13758.60
----------------------Latency---------------------
Mean Latency(s):                          273.27
Median Latency(s):                        272.75
P95 Latency(s):                           362.79
P99 Latency(s):                           489.22
---------------Time to First Token----------------
Mean TTFT (ms):                          201640.48
Median TTFT (ms):                        219319.19
P95 TTFT (ms):                           293076.86
P99 TTFT (ms):                           297429.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.86
Median TPOT (ms):                        266.36
P95 TPOT (ms):                           354.28
P99 TPOT (ms):                           477.76
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.02
Median ITL (ms):                         65.70
P95 ITL (ms):                            85.80
P99 ITL (ms):                            276.29
==================================================
  • 汇总：default Total TPS = 13760.98, 8K Total TPS = 13758.60. default 性能更优，差值为 2.37 tok/s (0.02%); Mean TPOT = 266.89 ms 与 266.86 ms, 增加 0.03 ms (0.01%，耗时增加).

分块预填充过大会导致内存不足

在此配置下，将 --chunked-prefill-size 设置为 16384 或 32768 会触发内存不足错误并崩溃：增大分块预填充大小会提高激活值的预留空间，内存规划器会从 KV-cache 预算中扣除这部分空间，导致剩余容量不足以容纳约 700B 的 FP8 权重和 KV cache。只有 8192（以及默认值）能够运行，两者的性能差异处于测量噪声范围内。对于 8K 输入，调整分块预填充大小无法提升吞吐量，因此推荐配置保留默认值。

DeepEP + 最大运行请求数

max-running 64

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=64
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  945.02
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.05
Output token throughput (tok/s):         1105.14
Peak output token throughput (tok/s):    49070.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          9959.18
----------------------Latency---------------------
Mean Latency(s):                          367.92
Median Latency(s):                        462.73
P95 Latency(s):                           516.66
P99 Latency(s):                           517.52
---------------Time to First Token----------------
Mean TTFT (ms):                          325930.74
Median TTFT (ms):                        419854.01
P95 TTFT (ms):                           468446.97
P99 TTFT (ms):                           469030.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          359.30
Median TPOT (ms):                        451.88
P95 TPOT (ms):                           504.55
P99 TPOT (ms):                           505.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           41.05
Median ITL (ms):                         41.00
P95 ITL (ms):                            47.87
P99 ITL (ms):                            48.31
==================================================

max-running 256

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

max-running 512

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=512
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  666.14
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.50
Output token throughput (tok/s):         1581.39
Peak output token throughput (tok/s):    38164.10
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14251.08
----------------------Latency---------------------
Mean Latency(s):                          265.47
Median Latency(s):                        292.45
P95 Latency(s):                           368.40
P99 Latency(s):                           482.40
---------------Time to First Token----------------
Mean TTFT (ms):                          203755.52
Median TTFT (ms):                        239495.62
P95 TTFT (ms):                           301525.04
P99 TTFT (ms):                           304478.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          259.25
Median TPOT (ms):                        285.59
P95 TPOT (ms):                           359.76
P99 TPOT (ms):                           471.09
---------------Inter-token Latency----------------
Mean ITL (ms):                           60.33
Median ITL (ms):                         54.22
P95 ITL (ms):                            70.59
P99 ITL (ms):                            291.22
==================================================
  • 汇总：max-running 256 Total TPS = 14451.05, max-running 64 Total TPS = 9959.18. max-running 256 性能更优，差值为 4491.87 tok/s (45.10%); Mean TPOT = 255.63 ms 与 359.30 ms, 减少 103.67 ms (28.85%).

DeepEP 模式

auto

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

normal

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--deepep-mode=normal
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  2722.41
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.37
Output token throughput (tok/s):         378.79
Peak output token throughput (tok/s):    63639.56
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          3413.56
----------------------Latency---------------------
Mean Latency(s):                          1084.11
Median Latency(s):                        1206.16
P95 Latency(s):                           1510.02
P99 Latency(s):                           1897.83
---------------Time to First Token----------------
Mean TTFT (ms):                          773983.92
Median TTFT (ms):                        924140.14
P95 TTFT (ms):                           1214572.96
P99 TTFT (ms):                           1217017.99
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1058.70
Median TPOT (ms):                        1177.89
P95 TPOT (ms):                           1474.63
P99 TPOT (ms):                           1853.35
---------------Inter-token Latency----------------
Mean ITL (ms):                           303.15
Median ITL (ms):                         277.82
P95 ITL (ms):                            294.11
P99 ITL (ms):                            1229.38
==================================================
  • 汇总：auto Total TPS = 14451.05, normal Total TPS = 3413.56. auto 性能更优，差值为 11037.49 tok/s (323.34%); Mean TPOT = 255.63 ms 与 1058.70 ms, 减少 803.07 ms (75.85%).

KV Cache 数据类型

bf16

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

fp8_e4m3

  • 测试配置：Balanced
  • 后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  539.39
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.85
Output token throughput (tok/s):         1944.77
Peak output token throughput (tok/s):    60301.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          17525.76
----------------------Latency---------------------
Mean Latency(s):                          223.12
Median Latency(s):                        219.64
P95 Latency(s):                           327.25
P99 Latency(s):                           327.80
---------------Time to First Token----------------
Mean TTFT (ms):                          143076.43
Median TTFT (ms):                        151142.06
P95 TTFT (ms):                           234645.47
P99 TTFT (ms):                           239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          217.89
Median TPOT (ms):                        214.49
P95 TPOT (ms):                           319.58
P99 TPOT (ms):                           320.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           78.24
Median ITL (ms):                         74.83
P95 ITL (ms):                            105.11
P99 ITL (ms):                            217.21
==================================================
  • 汇总：fp8_e4m3 Total TPS = 17525.76, bf16 Total TPS = 14451.05. fp8_e4m3 性能更优，差值为 3074.72 tok/s (21.28%); Mean TPOT = 217.89 ms 与 255.63 ms, 减少 37.74 ms (14.76%).

FP8 KV cache 准确率验证（GSM8K）

在 Hopper 上，FP8 KV cache 不是默认配置（SGLang 自动选择 bf16）；它仅在受 KV cache 容量限制的场景（高并发、长上下文）中提高吞吐量。为确认其不会降低质量，我们运行了 GSM8K 基础验证（200 个样例、关闭思考、贪心解码）：

KV 数据类型 GSM8K 得分
bf16 0.975
fp8_e4m3 0.980

差异处于测量噪声范围内（约 1 题 / 200），未发现可测量的准确率下降。仍应使用自己的工作负载验证准确率，尤其是在 FP8 量化误差可能累积的长上下文场景中。

优化选项汇总

基准测试用例 优化后 基准配置
选择推理引擎 Total TPS: 6487.53 (+18.34%)
Mean TPOT(ms): 540.79		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
并行策略 Total TPS: 7011.17 (+27.90%)
Mean TPOT(ms): 497.48		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
内存占用比例 Total TPS: 13760.98 (+151.03%)
Mean TPOT(ms): 266.89		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
分块预填充大小 Total TPS: 13760.98 (+151.03%)
Mean TPOT(ms): 266.89		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
DeepEP + 最大运行请求数 Total TPS: 14451.05 (+163.61%)
Mean TPOT(ms): 255.63		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
DeepEP 模式 Total TPS: 14451.05 (+163.61%)
Mean TPOT(ms): 255.63		 Total TPS: 5481.90
Mean TPOT(ms): 636.24
KV Cache 数据类型 Total TPS: 17525.76 (+219.70%)
Mean TPOT(ms): 217.89		 Total TPS: 5481.90
Mean TPOT(ms): 636.24

其他基准测试用例

均衡： 8K 输入 / 1K 输出 (优化目标)

  • 基准配置的后端参数：
    1
    --tensor-parallel-size=8
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1684.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.59
Output token throughput (tok/s):         608.31
Peak output token throughput (tok/s):    21900.04
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5481.90
----------------------Latency---------------------
Mean Latency(s):                          651.51
Median Latency(s):                        823.57
P95 Latency(s):                           857.92
P99 Latency(s):                           858.57
---------------Time to First Token----------------
Mean TTFT (ms):                          592315.54
Median TTFT (ms):                        762631.30
P95 TTFT (ms):                           799738.92
P99 TTFT (ms):                           800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          636.24
Median TPOT (ms):                        804.27
P95 TPOT (ms):                           837.81
P99 TPOT (ms):                           838.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.86
Median ITL (ms):                         56.85
P95 ITL (ms):                            69.41
P99 ITL (ms):                            90.01
==================================================
  • 优化后的后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  539.39
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.85
Output token throughput (tok/s):         1944.77
Peak output token throughput (tok/s):    60301.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          17525.76
----------------------Latency---------------------
Mean Latency(s):                          223.12
Median Latency(s):                        219.64
P95 Latency(s):                           327.25
P99 Latency(s):                           327.80
---------------Time to First Token----------------
Mean TTFT (ms):                          143076.43
Median TTFT (ms):                        151142.06
P95 TTFT (ms):                           234645.47
P99 TTFT (ms):                           239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          217.89
Median TPOT (ms):                        214.49
P95 TPOT (ms):                           319.58
P99 TPOT (ms):                           320.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           78.24
Median ITL (ms):                         74.83
P95 ITL (ms):                            105.11
P99 ITL (ms):                            217.21
==================================================

短上下文 (1K 输入 / 128 输出)

  • 基准配置的后端参数：N/A
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  88.45
Total input tokens:                      1036000
Total generated tokens:                  128000
Request throughput (req/s):              11.29
Output token throughput (tok/s):         1451.20
Peak output token throughput (tok/s):    102180.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13196.90
----------------------Latency---------------------
Mean Latency(s):                          40.54
Median Latency(s):                        39.42
P95 Latency(s):                           57.97
P99 Latency(s):                           60.17
---------------Time to First Token----------------
Mean TTFT (ms):                          19596.45
Median TTFT (ms):                        22675.56
P95 TTFT (ms):                           34452.65
P99 TTFT (ms):                           36690.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          316.73
Median TPOT (ms):                        307.96
P95 TPOT (ms):                           452.86
P99 TPOT (ms):                           470.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           164.92
Median ITL (ms):                         179.87
P95 ITL (ms):                            185.20
P99 ITL (ms):                            223.80
==================================================
  • 优化后的后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  65.34
Total input tokens:                      1036000
Total generated tokens:                  128000
Request throughput (req/s):              15.29
Output token throughput (tok/s):         2009.80
Peak output token throughput (tok/s):    54517.94
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          18276.60
----------------------Latency---------------------
Mean Latency(s):                          27.02
Median Latency(s):                        29.93
P95 Latency(s):                           30.87
P99 Latency(s):                           44.75
---------------Time to First Token----------------
Mean TTFT (ms):                          17437.67
Median TTFT (ms):                        19408.58
P95 TTFT (ms):                           24509.18
P99 TTFT (ms):                           31027.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          211.06
Median TPOT (ms):                        233.85
P95 TPOT (ms):                           241.16
P99 TPOT (ms):                           349.60
---------------Inter-token Latency----------------
Mean ITL (ms):                           75.41
Median ITL (ms):                         75.81
P95 ITL (ms):                            109.63
P99 ITL (ms):                            113.08
==================================================

长上下文 (32K 输入 / 100 输出)

  • 基准配置的后端参数：N/A
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             77
Benchmark duration (s):                  308.44
Total input tokens:                      3201200
Total generated tokens:                  10000
Request throughput (req/s):              0.32
Output token throughput (tok/s):         32.74
Peak output token throughput (tok/s):    4245.77
Peak concurrent requests:                77.00
Total Token throughput (tok/s):          10513.68
----------------------Latency---------------------
Mean Latency(s):                          132.00
Median Latency(s):                        131.48
P95 Latency(s):                           214.57
P99 Latency(s):                           217.83
---------------Time to First Token----------------
Mean TTFT (ms):                          106054.23
Median TTFT (ms):                        104360.05
P95 TTFT (ms):                           198608.95
P99 TTFT (ms):                           206310.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1320.02
Median TPOT (ms):                        1314.76
P95 TPOT (ms):                           2145.71
P99 TPOT (ms):                           2178.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           262.10
Median ITL (ms):                         274.05
P95 ITL (ms):                            281.04
P99 ITL (ms):                            281.32
==================================================
  • 优化后的后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             77
Benchmark duration (s):                  135.63
Total input tokens:                      3201200
Total generated tokens:                  10000
Request throughput (req/s):              0.74
Output token throughput (tok/s):         82.32
Peak output token throughput (tok/s):    13906.10
Peak concurrent requests:                77.00
Total Token throughput (tok/s):          26433.15
----------------------Latency---------------------
Mean Latency(s):                          53.73
Median Latency(s):                        53.63
P95 Latency(s):                           76.27
P99 Latency(s):                           78.63
---------------Time to First Token----------------
Mean TTFT (ms):                          23225.41
Median TTFT (ms):                        20088.83
P95 TTFT (ms):                           34063.13
P99 TTFT (ms):                           35622.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          537.26
Median TPOT (ms):                        536.30
P95 TPOT (ms):                           762.65
P99 TPOT (ms):                           786.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           308.09
Median ITL (ms):                         304.06
P95 ITL (ms):                            621.19
P99 ITL (ms):                            625.53
==================================================

生成密集型 (1K 输入 / 2K 输出)

  • 基准配置的后端参数：N/A
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             91
Benchmark duration (s):                  265.81
Total input tokens:                      202400
Total generated tokens:                  400000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         1506.10
Peak output token throughput (tok/s):    41424.97
Peak concurrent requests:                91.00
Total Token throughput (tok/s):          2268.18
----------------------Latency---------------------
Mean Latency(s):                          84.22
Median Latency(s):                        86.45
P95 Latency(s):                           90.73
P99 Latency(s):                           90.83
---------------Time to First Token----------------
Mean TTFT (ms):                          236.63
Median TTFT (ms):                        235.39
P95 TTFT (ms):                           254.39
P99 TTFT (ms):                           257.63
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          42.11
Median TPOT (ms):                        43.22
P95 TPOT (ms):                           45.37
P99 TPOT (ms):                           45.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           42.01
Median ITL (ms):                         43.13
P95 ITL (ms):                            45.27
P99 ITL (ms):                            45.32
==================================================
  • 优化后的后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             103
Benchmark duration (s):                  266.01
Total input tokens:                      202400
Total generated tokens:                  400000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         1505.53
Peak output token throughput (tok/s):    33577.32
Peak concurrent requests:                103.00
Total Token throughput (tok/s):          2267.33
----------------------Latency---------------------
Mean Latency(s):                          93.09
Median Latency(s):                        96.15
P95 Latency(s):                           102.79
P99 Latency(s):                           102.95
---------------Time to First Token----------------
Mean TTFT (ms):                          374.11
Median TTFT (ms):                        355.12
P95 TTFT (ms):                           479.63
P99 TTFT (ms):                           747.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          46.54
Median TPOT (ms):                        48.07
P95 TPOT (ms):                           51.40
P99 TPOT (ms):                           51.47
---------------Inter-token Latency----------------
Mean ITL (ms):                           46.38
Median ITL (ms):                         47.92
P95 ITL (ms):                            51.24
P99 ITL (ms):                            51.32
==================================================

ShareGPT

  • 基准配置的后端参数：N/A
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  99.70
Total input tokens:                      328145
Total generated tokens:                  270248
Request throughput (req/s):              10.03
Output token throughput (tok/s):         2728.23
Peak output token throughput (tok/s):    99078.05
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6040.94
----------------------Latency---------------------
Mean Latency(s):                          40.33
Median Latency(s):                        36.92
P95 Latency(s):                           80.82
P99 Latency(s):                           89.73
---------------Time to First Token----------------
Mean TTFT (ms):                          3745.78
Median TTFT (ms):                        1735.57
P95 TTFT (ms):                           11581.05
P99 TTFT (ms):                           13380.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          149.24
Median TPOT (ms):                        140.13
P95 TPOT (ms):                           242.35
P99 TPOT (ms):                           318.37
---------------Inter-token Latency----------------
Mean ITL (ms):                           135.88
Median ITL (ms):                         132.05
P95 ITL (ms):                            209.02
P99 ITL (ms):                            246.28
==================================================
  • 优化后的后端参数：
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  211.07
Total input tokens:                      328145
Total generated tokens:                  270248
Request throughput (req/s):              4.74
Output token throughput (tok/s):         1285.09
Peak output token throughput (tok/s):    33224.09
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          2845.48
----------------------Latency---------------------
Mean Latency(s):                          89.51
Median Latency(s):                        87.50
P95 Latency(s):                           162.23
P99 Latency(s):                           186.86
---------------Time to First Token----------------
Mean TTFT (ms):                          41335.55
Median TTFT (ms):                        53587.71
P95 TTFT (ms):                           71490.14
P99 TTFT (ms):                           79840.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          331.21
Median TPOT (ms):                        270.24
P95 TPOT (ms):                           620.79
P99 TPOT (ms):                           1143.93
---------------Inter-token Latency----------------
Mean ITL (ms):                           178.92
Median ITL (ms):                         205.22
P95 ITL (ms):                            223.71
P99 ITL (ms):                            239.28
==================================================
