NVIDIA H200 GPUs 上的 DeepSeek-V3.2 吞吐量优化

结论

在配备 H200x8 的单节点上优化 DeepSeek-V3.2 吞吐量的推荐配置：

推理服务命令

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

tool_chat_template_deepseekv32.jinja 文件链接。

根据以下基准测试，建议使用上述配置优化 DeepSeek-V3.2 在 8×H200 上的吞吐量。

并行策略和工具调用配置带来的性能提升最大，因此纳入推荐命令。调整上下文长度可以进一步提高吞吐量，但效果高度依赖工作负载，应根据实际使用情况调优。 注意力后端优化虽然有效，但收益相对较小，且可能随数据集变化，因此未纳入默认推荐配置。

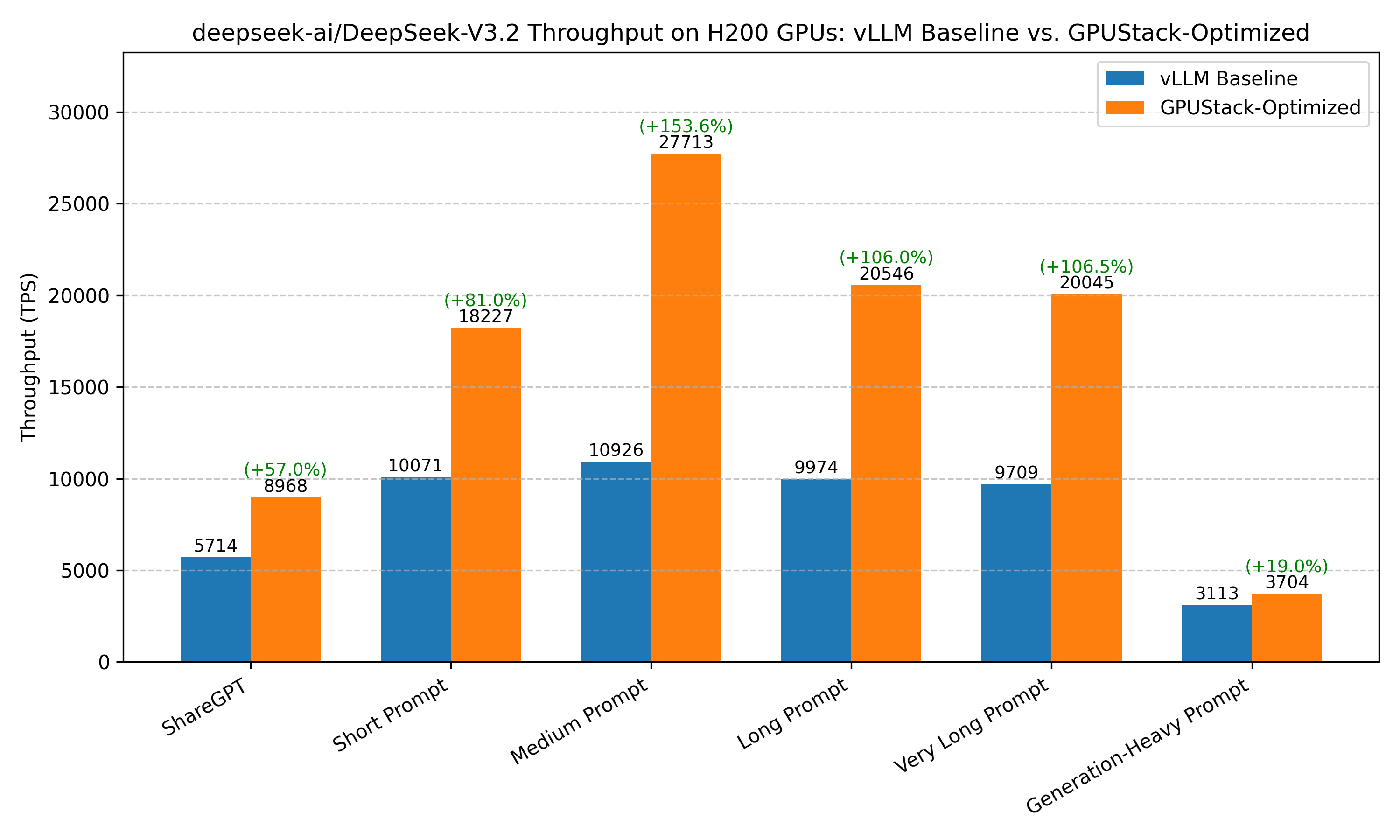

优化前后的基准测试结果对比：

基准测试用例	基准配置（未做任何优化的 vLLM）	优化后
ShareGPT	Total TPS: 5713.95 Mean TPOT(ms): 275.03	Total TPS: 8968.32 (+56.95%) Mean TPOT(ms): 203.05
短提示词	Total TPS: 10071.49 Mean TPOT(ms): 781.80	Total TPS: 18227.38 (+80.98%) Mean TPOT(ms): 776.55
中等长度提示词	Total TPS: 10925.59 Mean TPOT(ms): 354.59	Total TPS: 27712.54 (+153.65%) Mean TPOT(ms): 192.24
长提示词	Total TPS: 9974.26 Mean TPOT(ms): 226.74	Total TPS: 20545.67 (+105.99%) Mean TPOT(ms): 177.95
超长提示词	Total TPS: 9709.27 Mean TPOT(ms): 472.52	Total TPS: 20045.18 (+106.45%) Mean TPOT(ms): 246.26
生成密集型提示词	Total TPS: 3112.52 Mean TPOT(ms): 45.72	Total TPS: 3703.98 (+19.0%) Mean TPOT(ms): 39.45

说明

基准测试未覆盖所有可能的优化组合。例如，我们会选择默认配置下表现最好的推理引擎作为后续调优的起点。这种剪枝方式得到的是局部最优解，未必是全局最优解。
其他优化方法取决于具体使用场景，包括最大批大小、调度配置、扩展 KV cache、CUDA graph 等。本文结论可作为进一步针对性优化的起点。
测试基于特定的硬件和软件环境。推理引擎的改进可能带来新的结论。

如有遗漏或需要根据最新变化更新的内容，请告诉我们。

优化目标

在高并发请求场景下实现高吞吐量。

实验环境

模型

deepseek-ai/DeepSeek-V3.2

硬件

单节点配备 8 × NVIDIA H200 SXM GPU。

引擎版本

vLLM: v0.13.0
SGLang: v0.5.6.post2
TensorRT-LLM: 1.2.0rc5

基准测试数据集

ShareGPT
不同序列长度的随机数据集：
- 超长提示词：32000 输入 tokens，100 输出 tokens
- 长提示词：4000 输入 tokens，200 输出 tokens
- 中等长度提示词：2000 输入 tokens，100 输出 tokens
- 短提示词：128 输入 tokens，4 输出 tokens
- 生成密集型提示词：1K 输入 tokens，2K 输出 tokens

基准测试脚本

使用 vLLM bench CLI 工具对模型性能进行基准测试。运行基准测试的命令如下：

# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 1000

# Benchmark on random dataset (fixed seed for reproducibility)
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name random --random-input-len 4000 --random-output-len 200 --num-prompts 500 --seed 42

实验结果

1. 推理引擎基准配置

vLLM

推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  72.75
Total input tokens:                      219111
Total generated tokens:                  196599
Request throughput (req/s):              13.75
Output token throughput (tok/s):         2702.26
Peak output token throughput (tok/s):    6009.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5713.95
---------------Time to First Token----------------
Mean TTFT (ms):                          13054.63
Median TTFT (ms):                        12849.39
P99 TTFT (ms):                           22754.42
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          275.03
Median TPOT (ms):                        171.63
P99 TPOT (ms):                           666.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           131.14
Median ITL (ms):                         81.97
P99 ITL (ms):                            668.29
==================================================

SGLang

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  138.25
Total input tokens:                      219111
Total generated tokens:                  197337
Request throughput (req/s):              7.23
Output token throughput (tok/s):         1427.44
Peak output token throughput (tok/s):    7949.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3012.37
---------------Time to First Token----------------
Mean TTFT (ms):                          11470.15
Median TTFT (ms):                        11240.35
P99 TTFT (ms):                           22363.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1103.96
Median TPOT (ms):                        672.86
P99 TPOT (ms):                           4231.55
---------------Inter-token Latency----------------
Mean ITL (ms):                           389.06
Median ITL (ms):                         64.46
P99 ITL (ms):                            3013.62
==================================================

TensorRT-LLM

推理服务脚本

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  236.70
Total input tokens:                      215176
Total generated tokens:                  194893
Request throughput (req/s):              4.16
Output token throughput (tok/s):         823.39
Peak output token throughput (tok/s):    4212.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          1732.48
---------------Time to First Token----------------
Mean TTFT (ms):                          65710.22
Median TTFT (ms):                        66076.17
P99 TTFT (ms):                           125723.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1391.76
Median TPOT (ms):                        608.74
P99 TPOT (ms):                           4785.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           459.69
Median ITL (ms):                         141.56
P99 ITL (ms):                            4910.46
==================================================

结果：vLLM (5713.95 tok/s) > SGLang(3012.37 tok/s) > TensorRT-LLM (1732.48 tok/s)

2. 优化 vLLM

并行策略: DP+EP

推理服务脚本

# 81920 is half context, full context OOM
vllm serve deepseek-ai/DeepSeek-V3.2 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-tp 1 -dp 8 --enable-expert-parallel --max-model-len 81920

基准测试结果

Successful requests:                     1000
Benchmark duration (s):                  65.62
Total input tokens:                      219111
Total generated tokens:                  197109
Request throughput (req/s):              15.24
Output token throughput (tok/s):         3003.90
Peak output token throughput (tok/s):    10222.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          6343.10
---------------Time to First Token----------------
Mean TTFT (ms):                          9144.24
Median TTFT (ms):                        10233.68
P99 TTFT (ms):                           14920.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          278.22
Median TPOT (ms):                        115.72
P99 TPOT (ms):                           2048.82
---------------Inter-token Latency----------------
Mean ITL (ms):                           100.47
Median ITL (ms):                         74.61
P99 ITL (ms):                            1239.62
==================================================

并行策略: DCP

推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-dcp 8

DeepSeek V3.2 依赖 FlashMLA 稀疏注意力后端，该后端目前在解码阶段不提供 softmax log-sum-exp（LSE）。由于解码上下文并行（DCP）需要 softmax LSE 才能正确执行跨 rank 聚合，FlashMLA 目前不支持 DCP，在 vLLM 中使用时会导致运行失败。vLLM 仓库中已讨论这一限制（参见 issue #27544）。

MTP

推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
--speculative-config {"method":"mtp","num_speculative_tokens":1}

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.13
Total input tokens:                      219111
Total generated tokens:                  197345
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2626.63
Peak output token throughput (tok/s):    3940.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5542.96
---------------Time to First Token----------------
Mean TTFT (ms):                          11110.51
Median TTFT (ms):                        10739.31
P99 TTFT (ms):                           21886.92
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          291.48
Median TPOT (ms):                        250.14
P99 TPOT (ms):                           735.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           290.48
Median ITL (ms):                         144.81
P99 ITL (ms):                            4636.00
==================================================

在 vLLM 中禁用 DeepGEMM

推理服务脚本

export VLLM_USE_DEEP_GEMM=0
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.92
Total input tokens:                      219111
Total generated tokens:                  197222
Request throughput (req/s):              13.35
Output token throughput (tok/s):         2632.38
Peak output token throughput (tok/s):    6010.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5556.92
---------------Time to First Token----------------
Mean TTFT (ms):                          11250.21
Median TTFT (ms):                        10762.25
P99 TTFT (ms):                           20723.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.49
Median TPOT (ms):                        188.99
P99 TPOT (ms):                           667.67
---------------Inter-token Latency----------------
Mean ITL (ms):                           140.98
Median ITL (ms):                         83.88
P99 ITL (ms):                            671.43
==================================================

启用工具调用配置

推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --tool-call-parser deepseek_v32 --enable-auto-tool-choice

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.16
Total input tokens:                      219111
Total generated tokens:                  197012
Request throughput (req/s):              13.48
Output token throughput (tok/s):         2656.40
Peak output token throughput (tok/s):    6095.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5610.78
---------------Time to First Token----------------
Mean TTFT (ms):                          13648.83
Median TTFT (ms):                        13557.38
P99 TTFT (ms):                           23498.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          280.78
Median TPOT (ms):                        176.29
P99 TPOT (ms):                           677.36
---------------Inter-token Latency----------------
Mean ITL (ms):                           132.99
Median ITL (ms):                         82.69
P99 ITL (ms):                            683.11
==================================================

调整上下文长度

推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --max-model-len 32768

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.12
Total input tokens:                      219111
Total generated tokens:                  196938
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2621.48
Peak output token throughput (tok/s):    6293.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5538.11
---------------Time to First Token----------------
Mean TTFT (ms):                          10439.14
Median TTFT (ms):                        10296.60
P99 TTFT (ms):                           23842.17
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          357.68
Median TPOT (ms):                        223.35
P99 TPOT (ms):                           1169.74
---------------Inter-token Latency----------------
Mean ITL (ms):                           154.24
Median ITL (ms):                         78.13
P99 ITL (ms):                            660.95
==================================================

注意力后端: CUTLASS_MLA

推理服务脚本

export VLLM_ATTENTION_BACKEND="CUTLASS_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.CUTLASS_MLA is not valid for this configuration. Reason: ['sparse not supported', 'compute capability not supported']

注意力后端: FLASHMLA

推理服务脚本

export VLLM_ATTENTION_BACKEND="FLASHMLA"

ValueError: Selected backend AttentionBackendEnum.FLASHMLA is not valid for this configuration. Reason: ['sparse not supported']

注意力后端: TRITON_MLA

推理服务脚本

export VLLM_ATTENTION_BACKEND="TRITON_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.TRITON_MLA is not valid for this configuration. Reason: ['sparse not supported']

3. 优化 SGLang

并行策略: TP+DP Attention

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --enable-dp-attention

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  99.46
Total input tokens:                      219111
Total generated tokens:                  197633
Request throughput (req/s):              10.05
Output token throughput (tok/s):         1987.11
Peak output token throughput (tok/s):    8911.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          4190.17
---------------Time to First Token----------------
Mean TTFT (ms):                          13679.11
Median TTFT (ms):                        12663.74
P99 TTFT (ms):                           21665.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          608.90
Median TPOT (ms):                        398.19
P99 TPOT (ms):                           3453.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           230.03
Median ITL (ms):                         59.95
P99 ITL (ms):                            1824.84
==================================================

并行策略: TP+DP+DP Attention

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  56.62
Total input tokens:                      219111
Total generated tokens:                  197116
Request throughput (req/s):              17.66
Output token throughput (tok/s):         3481.55
Peak output token throughput (tok/s):    11298.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7351.59
---------------Time to First Token----------------
Mean TTFT (ms):                          7815.00
Median TTFT (ms):                        8024.81
P99 TTFT (ms):                           12928.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.86
Median TPOT (ms):                        107.58
P99 TPOT (ms):                           2096.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           91.68
Median ITL (ms):                         58.87
P99 ITL (ms):                            317.43
==================================================

并行策略: TP+DP+DP Attention+EP

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention --ep-size 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  57.14
Total input tokens:                      219111
Total generated tokens:                  197614
Request throughput (req/s):              17.50
Output token throughput (tok/s):         3458.68
Peak output token throughput (tok/s):    11757.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7293.61
---------------Time to First Token----------------
Mean TTFT (ms):                          8437.36
Median TTFT (ms):                        8346.50
P99 TTFT (ms):                           15410.07
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          319.46
Median TPOT (ms):                        111.65
P99 TPOT (ms):                           2443.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           94.48
Median ITL (ms):                         56.54
P99 ITL (ms):                            451.92
==================================================

MTP

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--tp-size 8 \
--speculative-algorithm EAGLE --speculative-num-steps 1 --speculative-eagle-topk 1 --speculative-num-draft-tokens 2

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  278.36
Total input tokens:                      219111
Total generated tokens:                  193349
Request throughput (req/s):              3.59
Output token throughput (tok/s):         694.61
Peak output token throughput (tok/s):    974.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          1481.77
---------------Time to First Token----------------
Mean TTFT (ms):                          139046.94
Median TTFT (ms):                        144733.94
P99 TTFT (ms):                           260932.68
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          68.88
Median TPOT (ms):                        63.31
P99 TPOT (ms):                           280.02
---------------Inter-token Latency----------------
Mean ITL (ms):                           115.50
Median ITL (ms):                         48.42
P99 ITL (ms):                            337.68
==================================================

禁用 DeepGEMM

推理服务脚本

export SGLANG_ENABLE_JIT_DEEPGEMM=0
python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

禁用 DeepGEMM 后，Server 无法启动。

启用工具调用配置

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.70
Total input tokens:                      219111
Total generated tokens:                  197192
Request throughput (req/s):              20.12
Output token throughput (tok/s):         3967.70
Peak output token throughput (tok/s):    13083.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8376.43
---------------Time to First Token----------------
Mean TTFT (ms):                          6577.70
Median TTFT (ms):                        6815.18
P99 TTFT (ms):                           11936.83
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          250.64
Median TPOT (ms):                        95.20
P99 TPOT (ms):                           1825.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           81.42
Median ITL (ms):                         53.51
P99 ITL (ms):                            269.50
==================================================

调整上下文长度

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  47.60
Total input tokens:                      219111
Total generated tokens:                  197380
Request throughput (req/s):              21.01
Output token throughput (tok/s):         4146.96
Peak output token throughput (tok/s):    12798.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8750.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5615.34
Median TTFT (ms):                        5448.81
P99 TTFT (ms):                           10053.28
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          214.05
Median TPOT (ms):                        87.57
P99 TPOT (ms):                           1553.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           76.04
Median ITL (ms):                         54.16
P99 ITL (ms):                            210.36
==================================================

KV Cache 数据类型

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--kv-cache-dtype fp8_e4m3

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.00
Total input tokens:                      219111
Total generated tokens:                  197078
Request throughput (req/s):              20.41
Output token throughput (tok/s):         4022.27
Peak output token throughput (tok/s):    12674.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8494.23
---------------Time to First Token----------------
Mean TTFT (ms):                          5472.04
Median TTFT (ms):                        5289.41
P99 TTFT (ms):                           9731.02
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          213.50
Median TPOT (ms):                        92.04
P99 TPOT (ms):                           1471.85
---------------Inter-token Latency----------------
Mean ITL (ms):                           79.15
Median ITL (ms):                         58.50
P99 ITL (ms):                            100.53
==================================================

注意力后端: fa3 + fa3

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  46.37
Total input tokens:                      219111
Total generated tokens:                  196786
Request throughput (req/s):              21.56
Output token throughput (tok/s):         4243.46
Peak output token throughput (tok/s):    13860.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8968.32
---------------Time to First Token----------------
Mean TTFT (ms):                          5303.50
Median TTFT (ms):                        5145.47
P99 TTFT (ms):                           9366.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          203.05
Median TPOT (ms):                        85.23
P99 TPOT (ms):                           1399.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           74.03
Median ITL (ms):                         53.86
P99 ITL (ms):                            177.03
==================================================

注意力后端: flashmla_sparse + flashmla_kv

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend flashmla_sparse \
--nsa-decode-backend flashmla_kv

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  77.68
Total input tokens:                      219111
Total generated tokens:                  197443
Request throughput (req/s):              12.87
Output token throughput (tok/s):         2541.62
Peak output token throughput (tok/s):    8352.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5362.16
---------------Time to First Token----------------
Mean TTFT (ms):                          4811.25
Median TTFT (ms):                        4727.17
P99 TTFT (ms):                           9086.60
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          260.25
Median TPOT (ms):                        128.33
P99 TPOT (ms):                           1625.53
---------------Inter-token Latency----------------
Mean ITL (ms):                           114.47
Median ITL (ms):                         91.44
P99 ITL (ms):                            256.14
==================================================

4. 优化 TensorRT-LLM

并行策略: TP+EP

推理服务脚本

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  142.99
Total input tokens:                      216405
Total generated tokens:                  195740
Request throughput (req/s):              6.88
Output token throughput (tok/s):         1368.90
Peak output token throughput (tok/s):    4635.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          2882.32
---------------Time to First Token----------------
Mean TTFT (ms):                          24155.45
Median TTFT (ms):                        23945.42
P99 TTFT (ms):                           45683.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          561.24
Median TPOT (ms):                        312.75
P99 TPOT (ms):                           1473.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           248.40
Median ITL (ms):                         142.18
P99 ITL (ms):                            1819.83
==================================================

禁用 DeepGEMM

推理服务脚本

export TRTLLM_DG_ENABLED=0
trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  134.65
Total input tokens:                      216484
Total generated tokens:                  194509
Request throughput (req/s):              7.31
Output token throughput (tok/s):         1444.56
Peak output token throughput (tok/s):    4661.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          3052.33
---------------Time to First Token----------------
Mean TTFT (ms):                          23229.65
Median TTFT (ms):                        23100.28
P99 TTFT (ms):                           44648.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          541.07
Median TPOT (ms):                        264.04
P99 TPOT (ms):                           1588.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           226.30
Median ITL (ms):                         137.80
P99 ITL (ms):                            1624.47
==================================================

优化选项汇总

优化选项	吞吐量提升
并行策略	+28.66%
工具调用配置	+13.94%
调整上下文长度	+4.47%
注意力后端	+2.49%
KV Cache 数据类型	-
MTP	-
DeepGEMM	-
总计（相对于基准配置）	+56.97%

其他基准测试用例

我们进一步对优化后的配置进行了基准测试，评估其在不同工作负载下的泛化表现。

基准配置的推理服务脚本

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

基准配置的测试结果

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  13.11
Total input tokens:                      128000
Total generated tokens:                  4000
Request throughput (req/s):              76.30
Output token throughput (tok/s):         305.20
Peak output token throughput (tok/s):    1029.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          10071.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5786.15
Median TTFT (ms):                        4666.02
P99 TTFT (ms):                           12922.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          781.80
Median TPOT (ms):                        687.63
P99 TPOT (ms):                           1637.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           586.79
Median ITL (ms):                         664.73
P99 ITL (ms):                            3545.51
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  96.10
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              5.20
Output token throughput (tok/s):         520.27
Peak output token throughput (tok/s):    4085.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          10925.59
---------------Time to First Token----------------
Mean TTFT (ms):                          45667.57
Median TTFT (ms):                        43997.53
P99 TTFT (ms):                           87384.57
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          354.59
Median TPOT (ms):                        433.59
P99 TPOT (ms):                           452.30
---------------Inter-token Latency----------------
Mean ITL (ms):                           353.26
Median ITL (ms):                         68.59
P99 ITL (ms):                            661.87
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  210.54
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              2.37
Output token throughput (tok/s):         474.96
Peak output token throughput (tok/s):    2769.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          9974.26
---------------Time to First Token----------------
Mean TTFT (ms):                          103386.88
Median TTFT (ms):                        97324.68
P99 TTFT (ms):                           200514.23
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          226.74
Median TPOT (ms):                        246.98
P99 TPOT (ms):                           275.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           228.79
Median ITL (ms):                         49.50
P99 ITL (ms):                            683.63
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  330.61
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.30
Output token throughput (tok/s):         30.25
Peak output token throughput (tok/s):    384.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          9709.27
---------------Time to First Token----------------
Mean TTFT (ms):                          164003.81
Median TTFT (ms):                        164174.93
P99 TTFT (ms):                           325134.01
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          472.52
Median TPOT (ms):                        512.36
P99 TPOT (ms):                           514.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           477.69
Median ITL (ms):                         741.90
P99 ITL (ms):                            949.57
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  96.39
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.04
Output token throughput (tok/s):         2075.01
Peak output token throughput (tok/s):    2598.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3112.52
---------------Time to First Token----------------
Mean TTFT (ms):                          4789.20
Median TTFT (ms):                        4590.83
P99 TTFT (ms):                           10608.88
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          45.72
Median TPOT (ms):                        45.83
P99 TPOT (ms):                           47.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           46.34
Median ITL (ms):                         43.13
P99 ITL (ms):                            44.29
==================================================

优化后的推理服务脚本

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

优化后的测试结果

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  7.13
Total input tokens:                      125952
Total generated tokens:                  3936
Request throughput (req/s):              138.09
Output token throughput (tok/s):         552.34
Peak output token throughput (tok/s):    2526.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          18227.38
---------------Time to First Token----------------
Mean TTFT (ms):                          4441.81
Median TTFT (ms):                        4685.89
P99 TTFT (ms):                           6735.22
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          776.55
Median TPOT (ms):                        714.97
P99 TPOT (ms):                           1659.07
---------------Inter-token Latency----------------
Mean ITL (ms):                           465.93
Median ITL (ms):                         59.97
P99 ITL (ms):                            4564.16
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  37.89
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              13.20
Output token throughput (tok/s):         1319.64
Peak output token throughput (tok/s):    9477.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          27712.54
---------------Time to First Token----------------
Mean TTFT (ms):                          18696.78
Median TTFT (ms):                        18939.89
P99 TTFT (ms):                           32138.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          192.24
Median TPOT (ms):                        189.20
P99 TPOT (ms):                           349.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           189.18
Median ITL (ms):                         55.05
P99 ITL (ms):                            219.74
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  102.21
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              4.89
Output token throughput (tok/s):         978.37
Peak output token throughput (tok/s):    7180.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          20545.67
---------------Time to First Token----------------
Mean TTFT (ms):                          44019.81
Median TTFT (ms):                        40806.24
P99 TTFT (ms):                           90171.38
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          177.95
Median TPOT (ms):                        161.14
P99 TPOT (ms):                           321.10
---------------Inter-token Latency----------------
Mean ITL (ms):                           177.57
Median ITL (ms):                         49.55
P99 ITL (ms):                            224.52
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  160.14
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.62
Output token throughput (tok/s):         62.45
Peak output token throughput (tok/s):    1189.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          20045.18
---------------Time to First Token----------------
Mean TTFT (ms):                          83964.72
Median TTFT (ms):                        88265.70
P99 TTFT (ms):                           157005.30
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          246.26
Median TPOT (ms):                        229.67
P99 TPOT (ms):                           514.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           244.63
Median ITL (ms):                         33.21
P99 ITL (ms):                            898.58
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  80.99
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.23
Output token throughput (tok/s):         2469.32
Peak output token throughput (tok/s):    2800.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3703.98
---------------Time to First Token----------------
Mean TTFT (ms):                          2103.54
Median TTFT (ms):                        2216.52
P99 TTFT (ms):                           3514.77
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          39.45
Median TPOT (ms):                        39.40
P99 TPOT (ms):                           40.17
---------------Inter-token Latency----------------
Mean ITL (ms):                           40.56
Median ITL (ms):                         38.90
P99 ITL (ms):                            43.63
==================================================
