NVIDIA H200 GPUs 上的 DeepSeek-R1 吞吐量优化

结论

在配备 H200x8 的单节点上优化 DeepSeek-R1 吞吐量的推荐配置：

推理服务命令

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-R1-0528 --tp 8 --enable-dp-attention

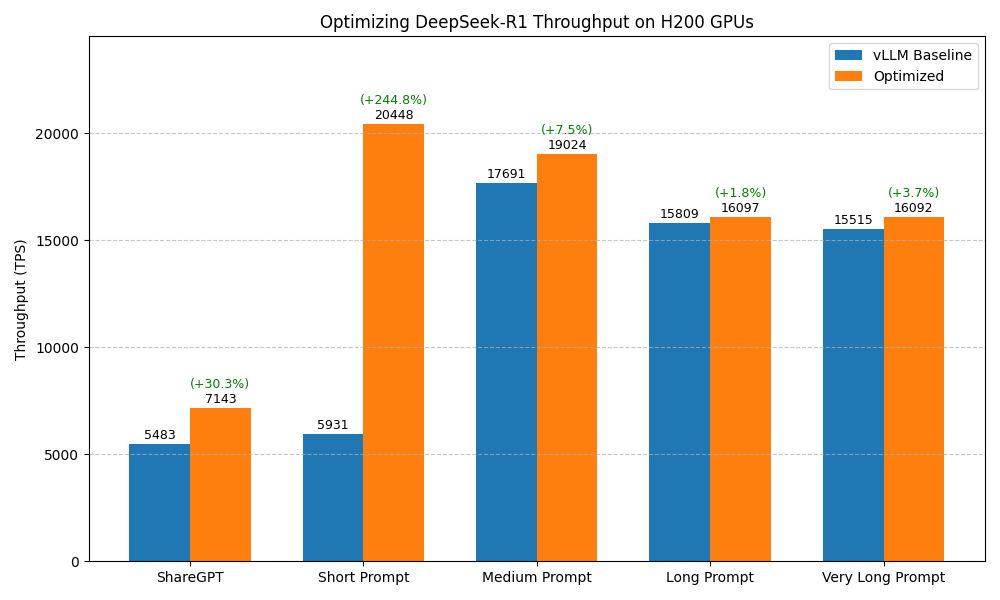

优化前后的基准测试结果对比：

基准测试用例	基准配置（未做任何优化的 vLLM）	优化后
ShareGPT	Total TPS: 5482.59 Mean TPOT(ms): 227.45	Total TPS: 7143.30 (+30.3%) Mean TPOT(ms): 304.71
短提示词	Total TPS: 5931.25 Mean TPOT(ms): 351.83	Total TPS: 20448.42 (+244.8%) Mean TPOT(ms): 802.48
中等长度提示词	Total TPS: 17690.89 Mean TPOT(ms): 237.02	Total TPS: 19024.33 (+7.5%) Mean TPOT(ms): 154.49
长提示词	Total TPS: 15808.55 Mean TPOT(ms): 164.23	Total TPS: 16096.80 (+1.8%) Mean TPOT(ms): 107.91
超长提示词	Total TPS: 15514.57 Mean TPOT(ms): 365.79	Total TPS: 16091.68 (+3.7%) Mean TPOT(ms): 198.62

说明

基准测试未覆盖所有可能的优化组合。例如，我们会选择默认配置下表现最好的推理引擎作为后续调优的起点。这种剪枝方式得到的是局部最优解，未必是全局最优解。
其他优化方法取决于具体使用场景，包括最大批大小、调度配置、扩展 KV cache、CUDA graph 等。本文结论可作为进一步针对性优化的起点。
测试基于特定的硬件和软件环境。推理引擎的改进可能带来新的结论。

如有遗漏或需要根据最新变化更新的内容，请告诉我们。

优化目标

在高并发请求场景下实现高吞吐量。

实验环境

模型

deepseek-ai/DeepSeek-R1-0528

硬件

单节点配备 8 × NVIDIA H200 SXM GPU。

引擎版本

vLLM: v0.11.0
SGLang: v0.5.3
TensorRT-LLM: v1.0.0

基准测试数据集

ShareGPT
不同序列长度的随机数据集：
- 超长提示词：32000 输入 tokens，100 输出 tokens
- 长提示词：4000 输入 tokens，200 输出 tokens
- 中等长度提示词：2000 输入 tokens，100 输出 tokens
- 短提示词：128 输入 tokens，4 输出 tokens

基准测试脚本

使用 vLLM bench CLI 工具对模型性能进行基准测试。运行基准测试的命令如下：

# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model deepseek-ai/DeepSeek-R1-0528 --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 1000

# Benchmark on random dataset (fixed seed for reproducibility)
vllm bench serve --model deepseek-ai/DeepSeek-R1-0528 --backend openai-chat --endpoint /v1/chat/completions --dataset-name random --random-input-len 4000 --random-output-len 200 --num-prompts 500 --seed 42

实验结果

1. 选择推理引擎

vLLM

推理服务脚本

vllm serve deepseek-ai/DeepSeek-R1-0528 -tp 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  76.59
Total input tokens:                      219171
Total generated tokens:                  200752
Request throughput (req/s):              13.06
Output token throughput (tok/s):         2621.05
Peak output token throughput (tok/s):    7451.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5482.59
---------------Time to First Token----------------
Mean TTFT (ms):                          17743.08
Median TTFT (ms):                        17698.39
P99 TTFT (ms):                           24371.87
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          227.45
Median TPOT (ms):                        177.90
P99 TPOT (ms):                           568.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           119.29
Median ITL (ms):                         66.09
P99 ITL (ms):                            384.38
==================================================

SGLang

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1-0528 --host 0.0.0.0 --port 8000 --tp-size 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  63.28
Total input tokens:                      219171
Total generated tokens:                  200767
Request throughput (req/s):              15.80
Output token throughput (tok/s):         3172.46
Peak output token throughput (tok/s):    9699.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          6635.73
---------------Time to First Token----------------
Mean TTFT (ms):                          6948.08
Median TTFT (ms):                        6793.80
P99 TTFT (ms):                           13674.05
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          420.18
Median TPOT (ms):                        216.55
P99 TPOT (ms):                           2473.09
---------------Inter-token Latency----------------
Mean ITL (ms):                           138.99
Median ITL (ms):                         51.66
P99 ITL (ms):                            1159.64
==================================================

TensorRT-LLM

推理服务脚本

trtllm-serve /workspace/DeepSeek-R1-0528 --tp_size 8 --ep_size 8

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  124.04
Total input tokens:                      219171
Total generated tokens:                  200813
Request throughput (req/s):              8.06
Output token throughput (tok/s):         1618.94
Peak output token throughput (tok/s):    7636.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3385.88
---------------Time to First Token----------------
Mean TTFT (ms):                          20253.90
Median TTFT (ms):                        20524.78
P99 TTFT (ms):                           23743.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          221.31
Median TPOT (ms):                        167.15
P99 TPOT (ms):                           726.85
---------------Inter-token Latency----------------
Mean ITL (ms):                           155.18
Median ITL (ms):                         111.57
P99 ITL (ms):                            1518.10
==================================================

结果：SGLang(6635.73 tok/s) > vLLM (5482.59 tok/s) > TensorRT-LLM (3385.88 tok/s)

2. SGLang 中的并行策略

TP+DP Attention

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1-0528 --host 0.0.0.0 --port 8000 --tp-size 8 --enable-dp-attention

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  58.79
Total input tokens:                      219171
Total generated tokens:                  200752
Request throughput (req/s):              17.01
Output token throughput (tok/s):         3414.99
Peak output token throughput (tok/s):    9601.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7143.30
---------------Time to First Token----------------
Mean TTFT (ms):                          5992.00
Median TTFT (ms):                        5976.11
P99 TTFT (ms):                           9650.89
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          304.71
Median TPOT (ms):                        188.40
P99 TPOT (ms):                           1704.65
---------------Inter-token Latency----------------
Mean ITL (ms):                           121.64
Median ITL (ms):                         51.15
P99 ITL (ms):                            464.61
==================================================

3. SGLang 中的 Torch.compile

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1-0528 --host 0.0.0.0 --port 8000 --tp-size 8 --enable-dp-attention --enable-torch-compile

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  61.72
Total input tokens:                      219171
Total generated tokens:                  200813
Request throughput (req/s):              16.20
Output token throughput (tok/s):         3253.37
Peak output token throughput (tok/s):    9287.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          6804.17
---------------Time to First Token----------------
Mean TTFT (ms):                          6978.36
Median TTFT (ms):                        6965.90
P99 TTFT (ms):                           10888.39
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          306.37
Median TPOT (ms):                        203.10
P99 TPOT (ms):                           1807.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           127.42
Median ITL (ms):                         51.90
P99 ITL (ms):                            596.33
==================================================

4. SGLang 中的 MTP

推理服务脚本

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-R1-0528 --host 0.0.0.0 --port 8000 --tp-size 8 --enable-dp-attention --enable-torch-compile --speculative-algorithm EAGLE --speculative-num-steps 1 --speculative-eagle-topk 1 --speculative-num-draft-tokens 2

基准测试结果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  189.43
Total input tokens:                      219171
Total generated tokens:                  200813
Request throughput (req/s):              5.28
Output token throughput (tok/s):         1060.10
Peak output token throughput (tok/s):    1121.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          2217.12
---------------Time to First Token----------------
Mean TTFT (ms):                          95444.76
Median TTFT (ms):                        98104.26
P99 TTFT (ms):                           176418.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          42.24
Median TPOT (ms):                        42.11
P99 TPOT (ms):                           82.73
---------------Inter-token Latency----------------
Mean ITL (ms):                           74.27
Median ITL (ms):                         36.60
P99 ITL (ms):                            200.54
==================================================

优化选项汇总

优化选项	吞吐量提升
引擎选择	+21.0%
并行策略	+7.6%
Torch Compile	-
MTP	-

其他基准测试用例

我们进一步对优化后的配置进行了基准测试，评估其在不同工作负载下的泛化表现。

基准配置的推理服务脚本

vllm serve deepseek-ai/DeepSeek-R1-0528 -tp 8

基准配置的测试结果

# random 32K input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  206.90
Total input tokens:                      3199900
Total generated tokens:                  10000
Request throughput (req/s):              0.48
Output token throughput (tok/s):         48.33
Peak output token throughput (tok/s):    498.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          15514.57
---------------Time to First Token----------------
Mean TTFT (ms):                          101351.99
Median TTFT (ms):                        101163.80
P99 TTFT (ms):                           200267.68
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          365.79
Median TPOT (ms):                        400.72
P99 TPOT (ms):                           404.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           362.20
Median ITL (ms):                         459.96
P99 ITL (ms):                            614.75
==================================================

# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  132.68
Total input tokens:                      1997530
Total generated tokens:                  100000
Request throughput (req/s):              3.77
Output token throughput (tok/s):         753.67
Peak output token throughput (tok/s):    2922.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          15808.55
---------------Time to First Token----------------
Mean TTFT (ms):                          63058.71
Median TTFT (ms):                        61952.74
P99 TTFT (ms):                           124112.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          164.23
Median TPOT (ms):                        177.37
P99 TPOT (ms):                           195.80
---------------Inter-token Latency----------------
Mean ITL (ms):                           163.74
Median ITL (ms):                         57.87
P99 ITL (ms):                            383.79
==================================================

# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  59.26
Total input tokens:                      998393
Total generated tokens:                  50000
Request throughput (req/s):              8.44
Output token throughput (tok/s):         843.71
Peak output token throughput (tok/s):    4036.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          17690.89
---------------Time to First Token----------------
Mean TTFT (ms):                          28911.90
Median TTFT (ms):                        27559.21
P99 TTFT (ms):                           53497.07
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          237.02
Median TPOT (ms):                        276.56
P99 TPOT (ms):                           322.76
---------------Inter-token Latency----------------
Mean ITL (ms):                           235.10
Median ITL (ms):                         357.74
P99 ITL (ms):                            379.46
==================================================

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  22.07
Total input tokens:                      126882
Total generated tokens:                  4000
Request throughput (req/s):              45.32
Output token throughput (tok/s):         181.27
Peak output token throughput (tok/s):    2082.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5931.25
---------------Time to First Token----------------
Mean TTFT (ms):                          19392.11
Median TTFT (ms):                        18992.42
P99 TTFT (ms):                           21440.63
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          351.83
Median TPOT (ms):                        389.74
P99 TPOT (ms):                           432.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           263.87
Median ITL (ms):                         368.43
P99 ITL (ms):                            470.22
==================================================

# ShareGPT batch size 4
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  108.42
Total input tokens:                      22836
Total generated tokens:                  21338
Request throughput (req/s):              0.92
Output token throughput (tok/s):         196.81
Peak output token throughput (tok/s):    216.00
Peak concurrent requests:                9.00
Total Token throughput (tok/s):          407.45
---------------Time to First Token----------------
Mean TTFT (ms):                          123.30
Median TTFT (ms):                        117.53
P99 TTFT (ms):                           258.12
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          19.36
Median TPOT (ms):                        19.13
P99 TPOT (ms):                           22.67
---------------Inter-token Latency----------------
Mean ITL (ms):                           19.41
Median ITL (ms):                         18.84
P99 ITL (ms):                            48.61
==================================================

优化后的推理服务脚本

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-R1-0528 --tp 8 --enable-dp-attention

优化后的测试结果

# random 32K input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  199.47
Total input tokens:                      3199900
Total generated tokens:                  9952
Request throughput (req/s):              0.50
Output token throughput (tok/s):         49.89
Peak output token throughput (tok/s):    521.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          16091.68
---------------Time to First Token----------------
Mean TTFT (ms):                          98133.46
Median TTFT (ms):                        97539.39
P99 TTFT (ms):                           196094.04
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          198.62
Median TPOT (ms):                        198.45
P99 TPOT (ms):                           365.31
---------------Inter-token Latency----------------
Mean ITL (ms):                           209.45
Median ITL (ms):                         35.27
P99 ITL (ms):                            1680.63
==================================================

# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  130.31
Total input tokens:                      1997530
Total generated tokens:                  100000
Request throughput (req/s):              3.84
Output token throughput (tok/s):         767.42
Peak output token throughput (tok/s):    3227.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          16096.80
---------------Time to First Token----------------
Mean TTFT (ms):                          62808.37
Median TTFT (ms):                        61113.90
P99 TTFT (ms):                           122763.87
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          107.91
Median TPOT (ms):                        105.31
P99 TPOT (ms):                           179.79
---------------Inter-token Latency----------------
Mean ITL (ms):                           115.81
Median ITL (ms):                         46.40
P99 ITL (ms):                            155.40
==================================================

# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  55.11
Total input tokens:                      998393
Total generated tokens:                  50000
Request throughput (req/s):              9.07
Output token throughput (tok/s):         907.31
Peak output token throughput (tok/s):    5778.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          19024.33
---------------Time to First Token----------------
Mean TTFT (ms):                          27248.86
Median TTFT (ms):                        25136.93
P99 TTFT (ms):                           49876.53
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          154.49
Median TPOT (ms):                        148.01
P99 TPOT (ms):                           294.80
---------------Inter-token Latency----------------
Mean ITL (ms):                           159.34
Median ITL (ms):                         48.78
P99 ITL (ms):                            801.82
==================================================

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  6.40
Total input tokens:                      126882
Total generated tokens:                  4000
Request throughput (req/s):              156.24
Output token throughput (tok/s):         624.94
Peak output token throughput (tok/s):    2769.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          20448.42
---------------Time to First Token----------------
Mean TTFT (ms):                          3626.25
Median TTFT (ms):                        3413.13
P99 TTFT (ms):                           4879.78
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          802.48
Median TPOT (ms):                        940.27
P99 TPOT (ms):                           1182.88
---------------Inter-token Latency----------------
Mean ITL (ms):                           481.68
Median ITL (ms):                         139.56
P99 ITL (ms):                            3031.24
==================================================

NVIDIA H200 GPUs 上的 DeepSeek-R1 吞吐量优化

结论

优化目标

实验环境

模型

硬件

引擎版本

基准测试数据集

基准测试脚本

实验结果

1. 选择推理引擎

2. SGLang 中的 并行策略

3. SGLang 中的 Torch.compile

4. SGLang 中的 MTP

优化选项汇总

其他基准测试用例

2. SGLang 中的并行策略
