Desktop Setup

Note

Supported since v0.7.0

You can install GPUStack on macOS and Windows using an installer. The GPUStackHelper, a system tray application for managing GPUStack, will be installed during setup. Follow the Desktop Installer guide to complete the installation.

GPUStackHelper

GPUStackHelper provides the following functions to configure and manage GPUStack.

tray-menu

  • Status - Shows the current state of the GPUStack service. The Status submenu supports Start, Stop, and Restart operations.
  • Web Console - Opens the GPUStack portal in your default browser if the service is running.
  • Run at Startup - Configures whether GPUStack should automatically start at system boot.
  • Quick Config - Opens the Quick Config Dialog.
  • Config Directory - Opens the directory containing the GPUStack configuration file config.yaml. Configurations not available in Quick Config can be modified manually here.
  • Copy Token - Copies the token for worker registration.
  • Show Log - Opens a console or notepad window to view GPUStack logs.
  • About - Shows version information.

Configuration

GPUStack can be configured through GPUStackHelper in several ways. It is recommended to use the config file instead of command-line arguments or environment variables. Certain GPUStack arguments are fixed and managed by the helper and should not be modified manually.

For example, in the GPUStack launchd configuration on macOS (/Library/LaunchDaemons/ai.gpustack.plist):

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>EnableTransactions</key>
    <true/>
    <key>EnvironmentVariables</key>
    <dict>
        <key>HOME</key>
        <string>/Library/Application Support/GPUStack/root</string>
    </dict>
    <key>KeepAlive</key>
    <true/>
    <key>Label</key>
    <string>ai.gpustack</string>
    <key>ProgramArguments</key>
    <array>
        <string>/Applications/GPUStack.app/Contents/MacOS/gpustack</string>
        <string>start</string>
        <string>--config-file=/Library/Application Support/GPUStack/config.yaml</string>
        <string>--data-dir=/Library/Application Support/GPUStack</string>
    </array>
    <key>RunAtLoad</key>
    <false/>
    <key>StandardErrorPath</key>
    <string>/var/log/gpustack.log</string>
    <key>StandardOutPath</key>
    <string>/var/log/gpustack.log</string>
</dict>
</plist>
  • ProgramArguments specifies the fixed arguments for GPUStack, such as --config-file and --data-dir. On Windows, similar fixed configurations exist in the NSSM service. You can inspect them using nssm dump gpustack after GPUStack is installed and started on Windows.
  • The HOME variable in EnvironmentVariables is set to avoid using the root user's home directory as the default cache path. This setting applies to macOS only.

Quick Config Dialog

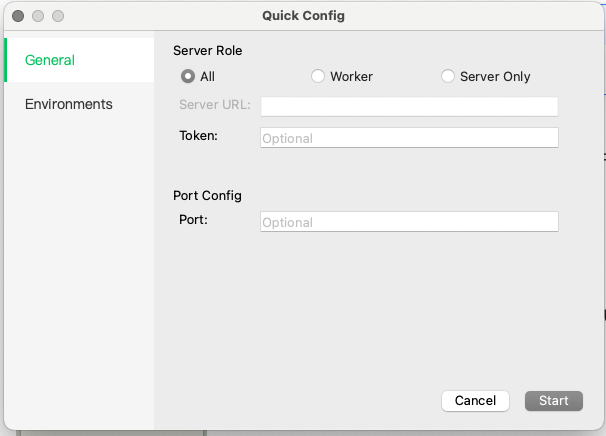

general

The General tab contains commonly used configurations. Refer to the config-file documentation for more details.

  • Server Role - Refer to the disable_worker configuration.

    • All (Both Server and Worker)
    • Worker
    • Server Only

  • Server URL - Refer to the server_url configuration.

  • Token - Refer to the token configuration.
  • Port - Refer to the port configuration.

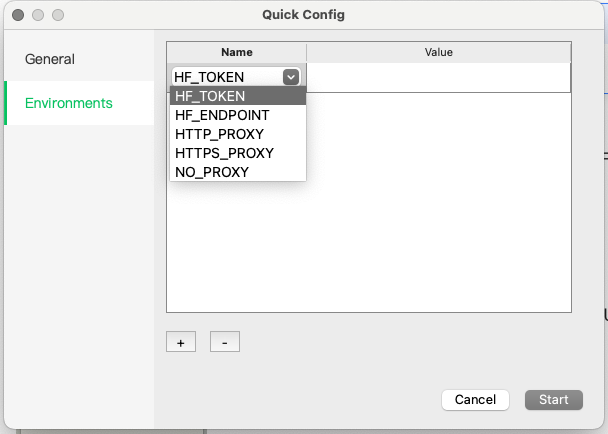

env-var

The Environments tab is used to set environment variables for the GPUStack service. Common environment variables are listed in the key options:

  • HF_ENDPOINT - Hugging Face Hub endpoint, e.g., https://hf-mirror.com.
  • HF_TOKEN - Hugging Face token.
  • HTTP_PROXY, HTTPS_PROXY and NO_PROXY - Proxy-related environment variables.

You can also manually enter custom variable keys and values.

Note

GPUStack supports configuration via GPUSTACK_ environment variables. However, it's recommended to use the config file. For example, if GPUSTACK_PORT is set via an environment variable, it won't be recognized by the Web Console function, which will result in the browser opening the default port or the one specified in the config file.

Status and Start

GPUStack may display one of the following status values:

  • Stopped
  • Running
  • To Upgrade - This state indicates that GPUStack should be upgraded from a script-based installation.
  • To Restart|Running - This state indicates that GPUStack should be restarted due to a configuration change.

Platform Notes

  • On Windows, GPUStackHelper requires UAC (User Account Control) to start because it needs privileges to operate the GPUStack service.

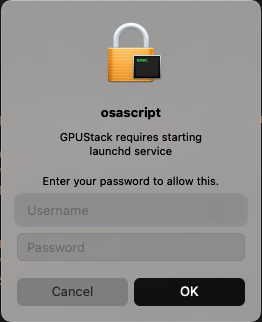

  • On macOS, GPUStackHelper runs in the background for the logged-in user and prompts for root privileges when starting/stopping/restarting the GPUStack service, as shown in the image below.

prompt
