Adding a GPU Cluster Using Shuihua

When creating a cluster, GPUStack can leverage SHUIHUA FUTURE to create workers and add them to the GPUStack cluster.

Preparation

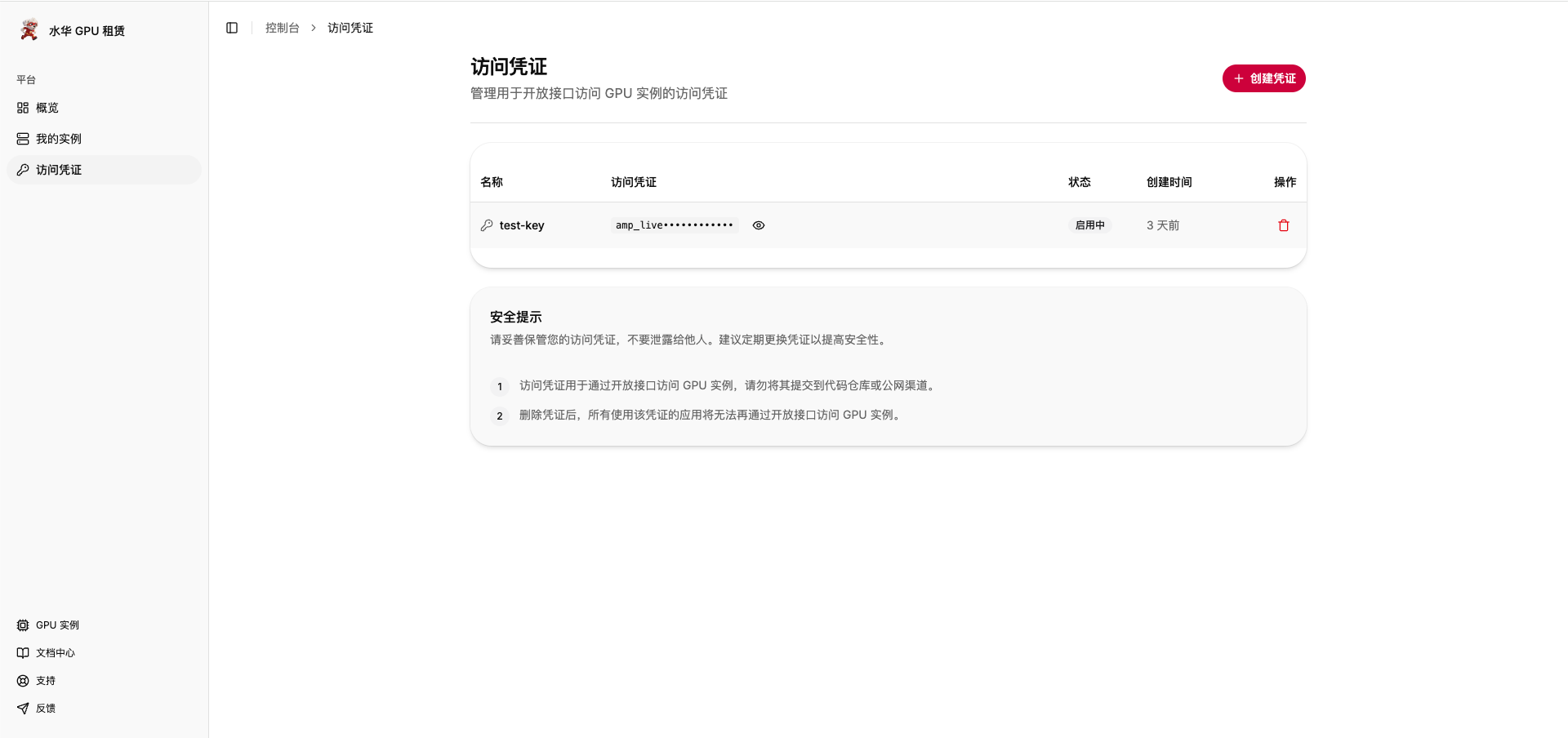

You need a SHUIHUA FUTURE account and an API key, created from the Shuihua console. The key is prefixed with amp_live_.

shuihua-api-key

When starting the GPUStack Server, you need to specify the --server-external-url parameter. Shuihua instances reach the server through this address to register and to keep their tunnel open, so it must be reachable from them. If your server is running behind a proxy, set the proxy address here.

Create Shuihua Cluster

Create Cloud Credential

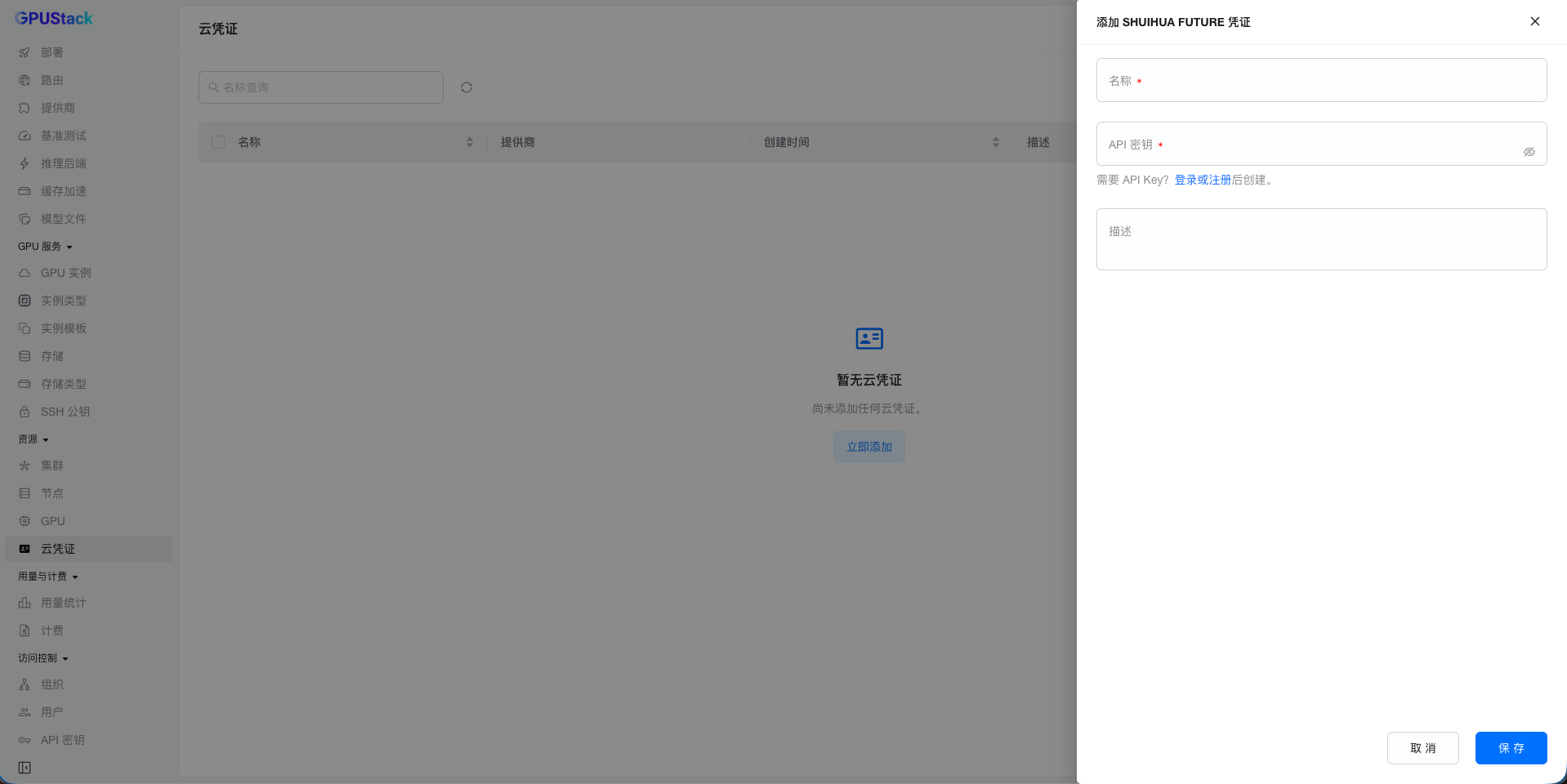

Create a SHUIHUA FUTURE cloud credential on the Cloud Credentials page. The API Key is the only field to fill in.

create-cloud-credential

Create Cluster with Cloud Credential

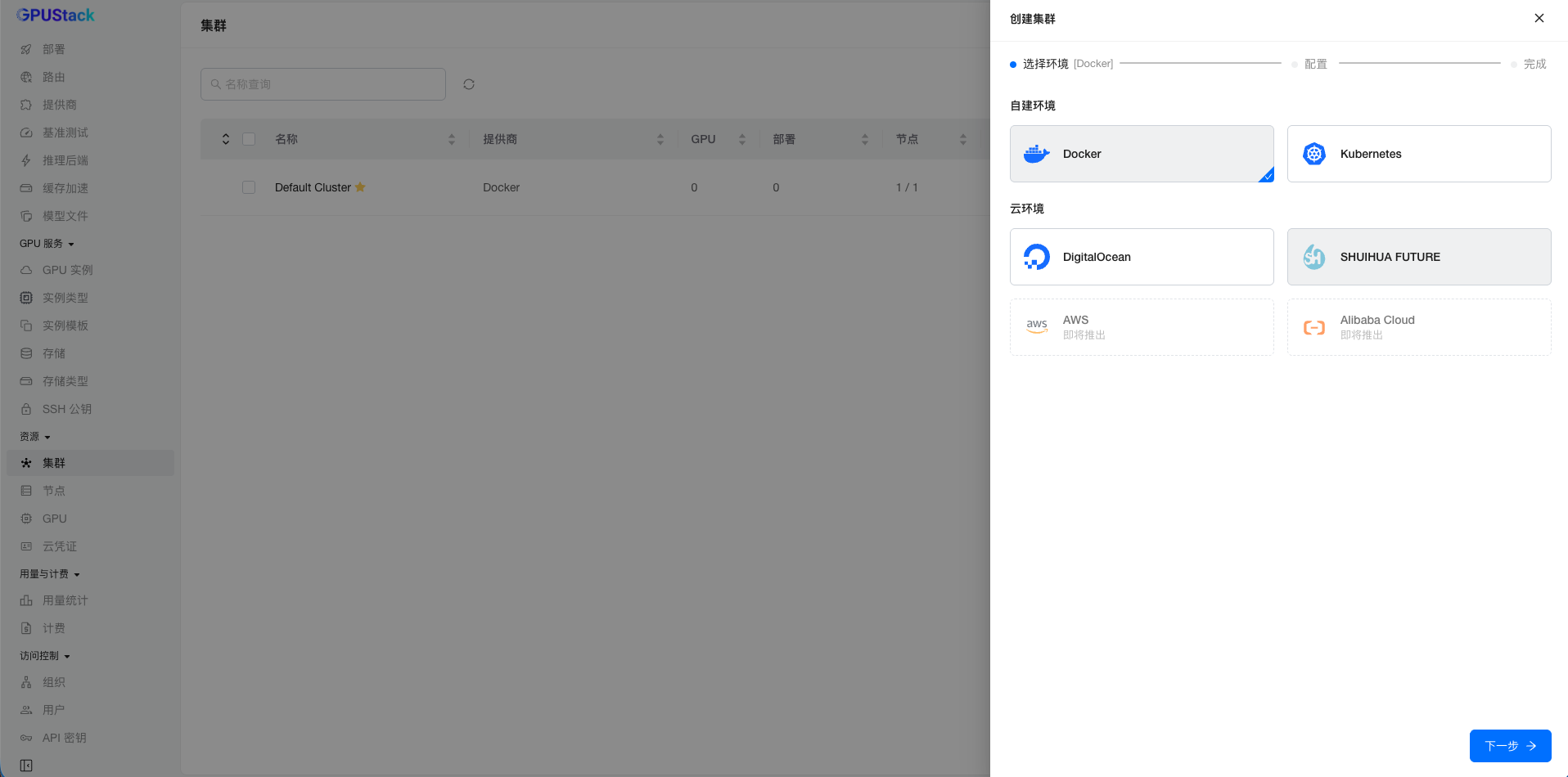

On the cluster creation page, select SHUIHUA FUTURE as the Cloud Provider:

select-cloud-provider

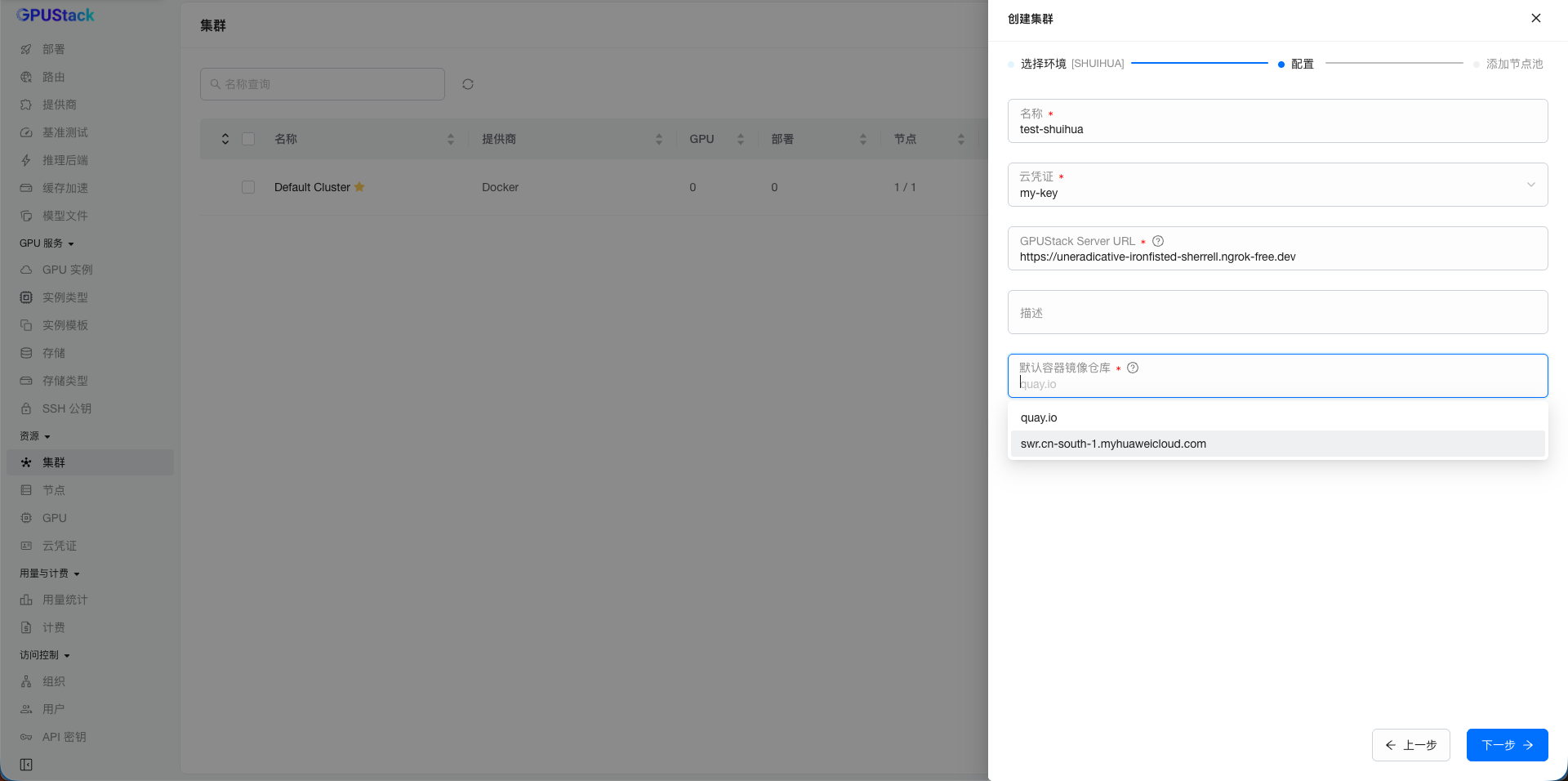

Enter a name, select the cloud credential you just created, and configure the GPUStack Server URL. Shuihua has no regions, so there is no region to pick.

Default Container Registry is required here. Shuihua instances cannot reach Docker Hub, so the GPUStack worker image has to come from somewhere else — the field suggests quay.io and swr.cn-south-1.myhuaweicloud.com, and accepts any other registry you can type, such as your own Harbor or mirror. A value resolving to a Docker Hub host is rejected.

basic-configuration

Note: the server's --image-name-override takes precedence over this field. If the server runs with an override, that image name is used verbatim and the registry setting has no effect, so the override itself must name a reachable registry.

Click Next to create a worker pool for the cluster.

Create Worker Pool

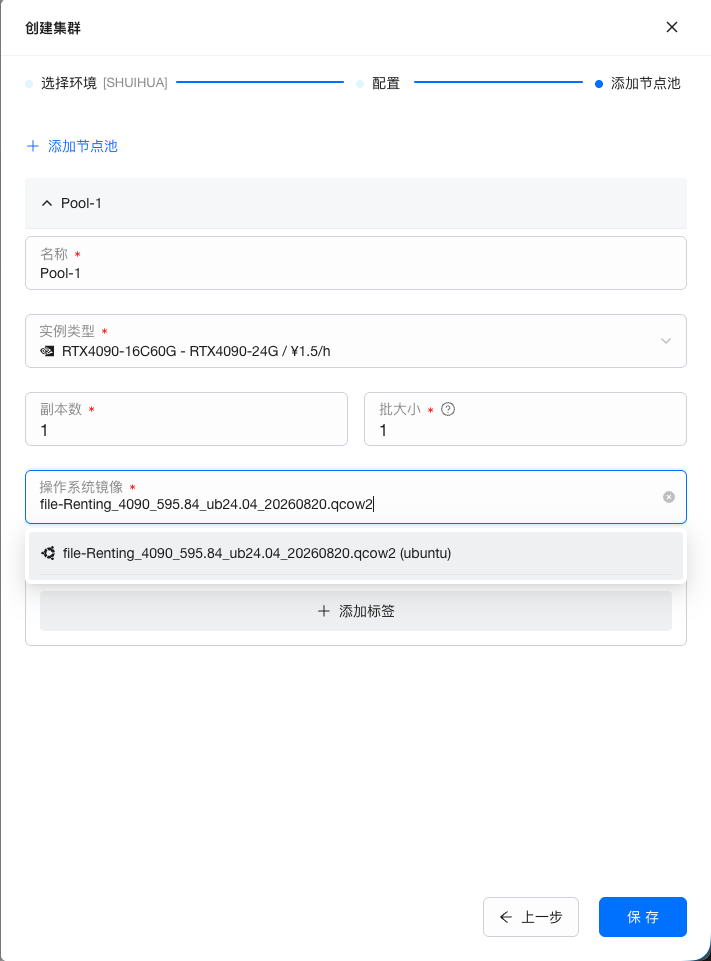

Fill in the Name, Replicas, and Batch Size as needed.

worker-pool-configuration

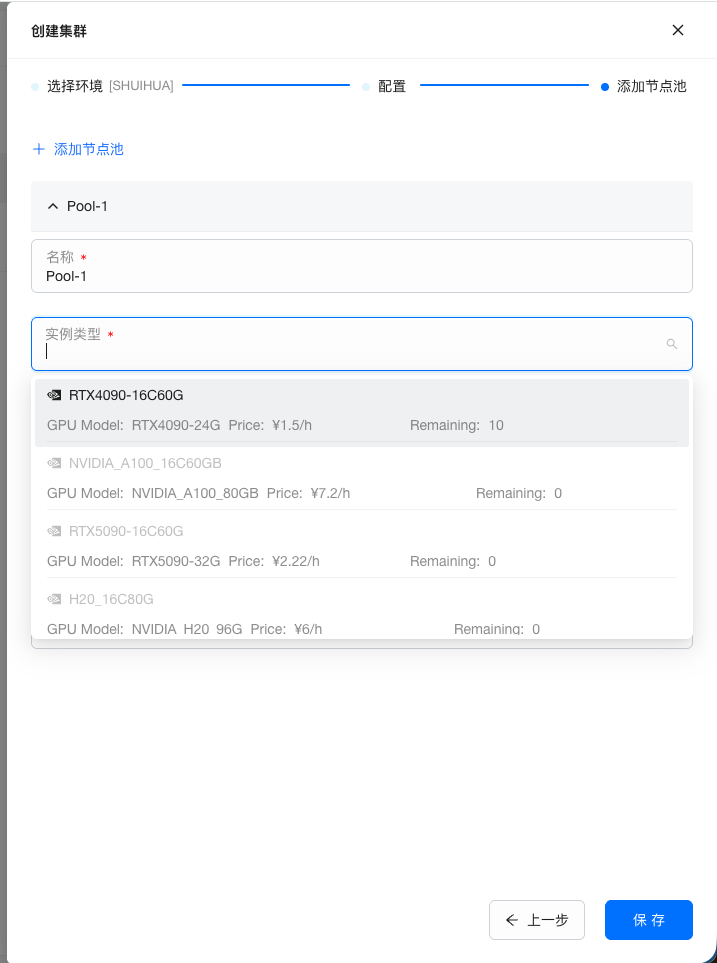

Then select the Instance Type, which in Shuihua terms is a spec template. Each option shows its GPU model, hourly price and remaining stock; a template that is sold out stays in the list but cannot be selected, so you can see why it is unavailable.

select-instance-type

Next, select the OS Image.

Shuihua only rents NVIDIA GPUs, and its images ship with the driver and the container toolkit already installed. Cloud-init therefore only points Docker at the NVIDIA runtime and starts the worker — nothing is installed and the instance is not rebooted, so these workers come up faster than ones that have to build a driver.

Volumes are not offered for this provider: Shuihua has no block storage API. Labels are supported.

Click Save if all set.

Waiting for Workers to be Provisioned

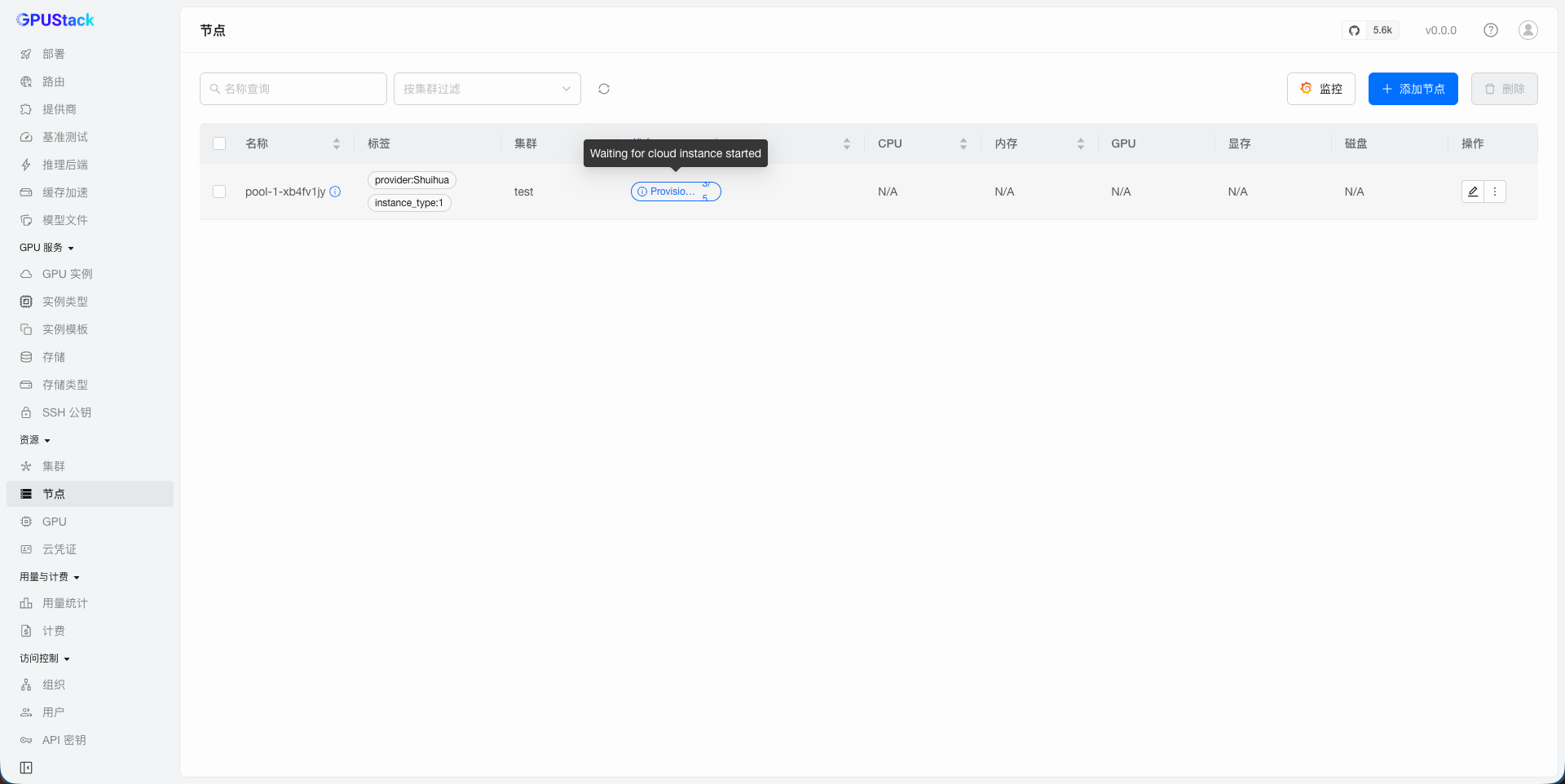

After saving the cluster, navigate to the Workers page to view the provisioning progress of Shuihua workers.

provisioning-workers

The provisioning process includes several steps:

  1. Generate an SSH key. Shuihua has no SSH key API, so the key is not registered with the provider; it is written into the instance's cloud-init instead.
  2. Create the instance. Creation is asynchronous — Shuihua accepts the request and reports creating, then processing, then active.
  3. Wait for the instance to start.
  4. Wait for its address to be assigned.
  5. The worker enters the Initialized status and waits for the worker container to start and connect to the server.

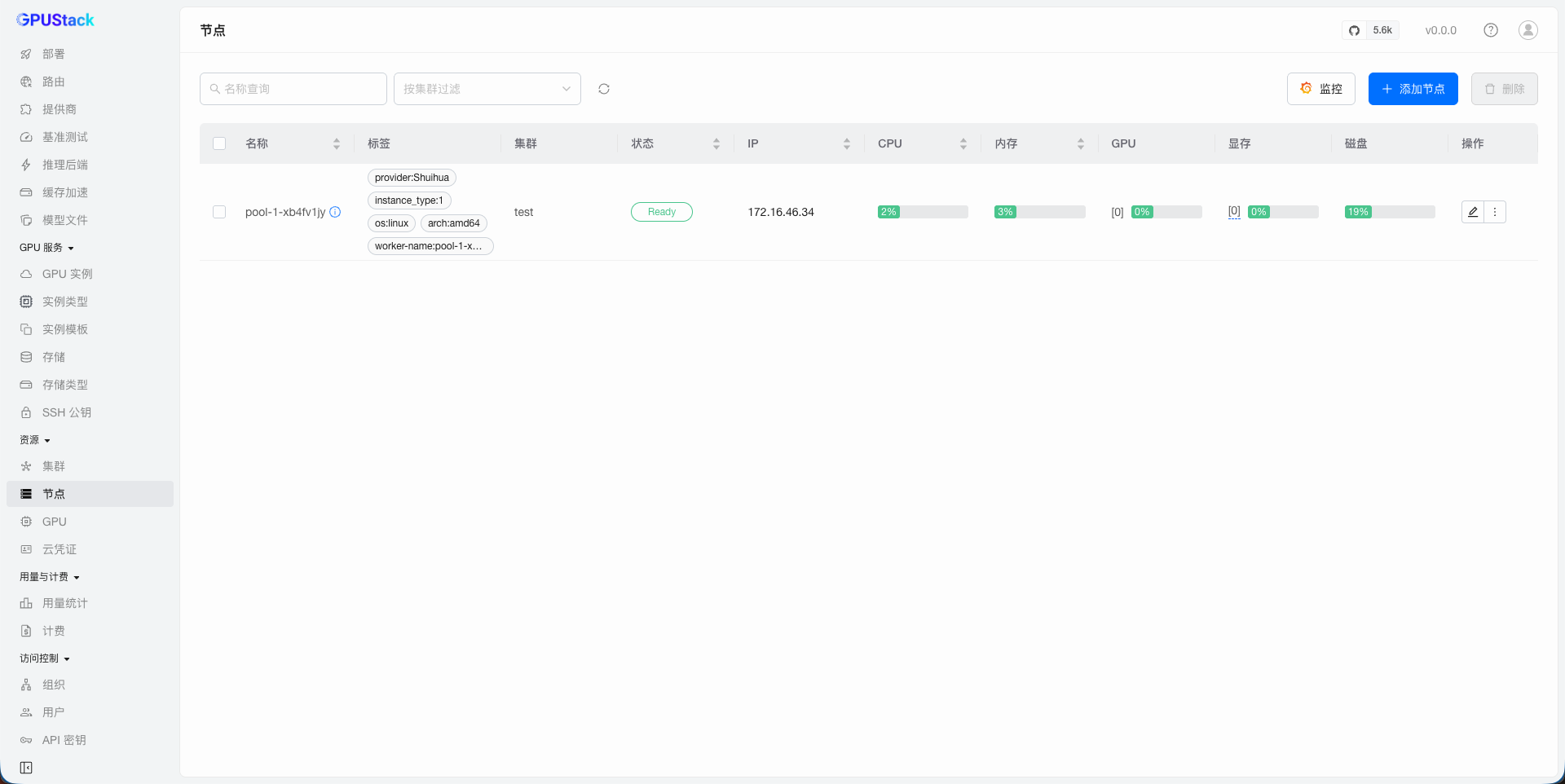

Once the worker reaches the Ready status, you can deploy models on it.

worker-provisioned

Connecting to a Worker over SSH

Shuihua publishes every instance behind one shared public IP, mapping only ports 22 and 80 to an instance-specific port. The IP shown for the worker is the instance's own private address, which identifies it but cannot be connected to.

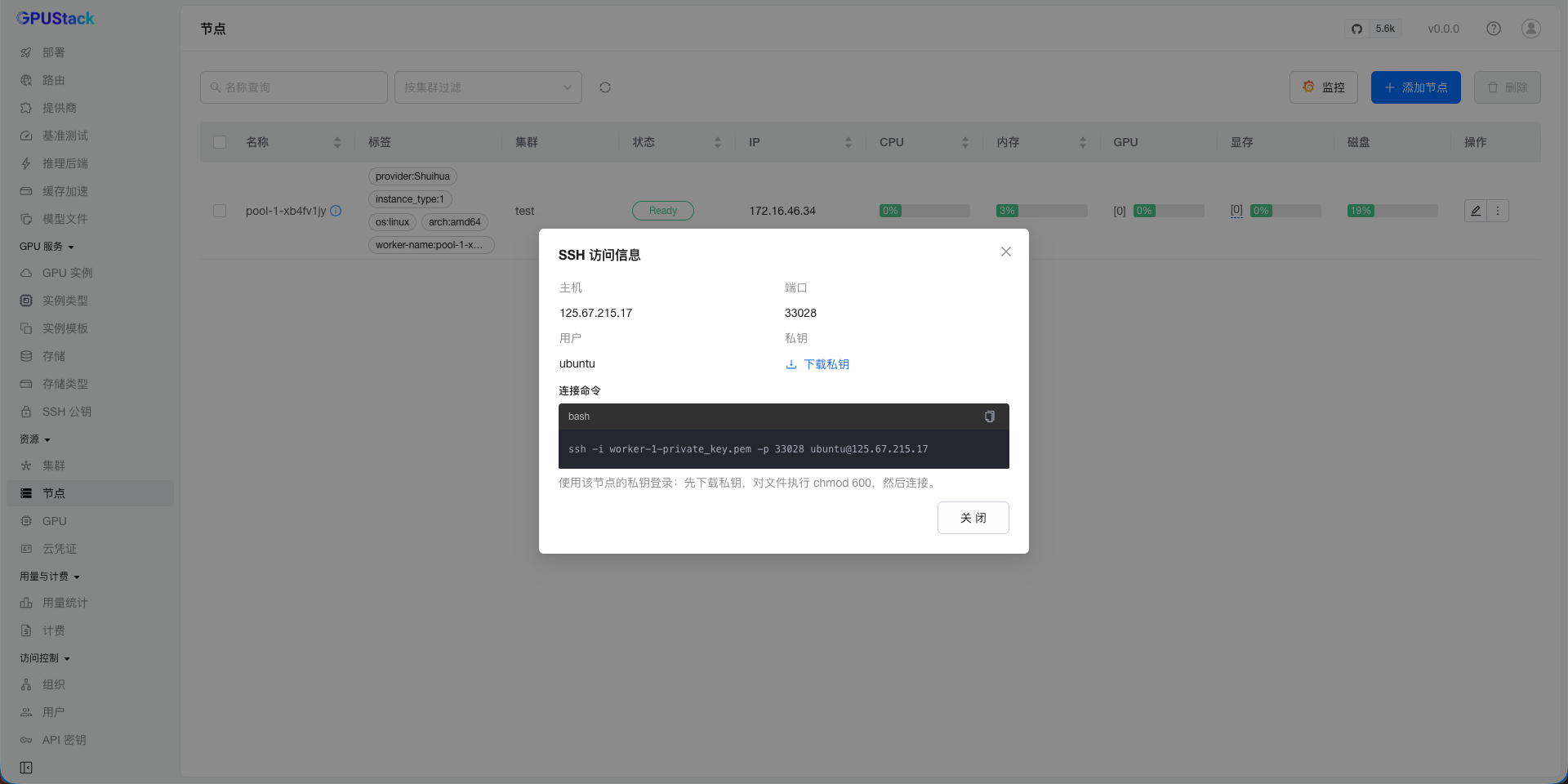

Use View SSH Access in the worker's operations menu instead. It shows the Host, Port and Connection Command that actually reach the instance, and lets you download the Private Key (saved as worker-<id>-private_key.pem).

worker-ssh-info

Because the worker's own port is never mapped, the gateway cannot reach these workers inbound. They serve inference through the server's WebSocket tunnel, which is why a Shuihua cluster uses the tunnel proxy mode by default. Leave it as it is unless your network routes to the instances directly.

Safely Scale Down Shuihua Workers

When a Shuihua worker is no longer needed, follow these steps to safely destroy the instance:

  • Adjust the replica count of the worker pool to match the number of workers you want to delete. Note that workers are not deleted automatically in this step.
  • Ensure that no model instances are deployed on the workers you intend to delete.
  • Delete the workers as needed. The corresponding instances will be terminated accordingly.

Troubleshooting

The worker stays in Initialized and never becomes Ready. The instance booted but the worker container did not start, most often because the image could not be pulled. Connect over SSH and check:

1
2
3
sudo cloud-init status --long
sudo grep -iE "pull|denied|manifest" /var/log/cloud-init-output.log
docker ps -a

The worker is Ready but reports no GPUs. Docker is not using the NVIDIA runtime:

1
2
3
nvidia-smi
which nvidia-ctk
docker info | grep -i runtime

A worker failed to provision and cannot be retried in place. Delete the worker and let the pool create a replacement. Each creation attempt carries a replay-protection key derived from the worker row, so getting a new instance takes a new worker.
