Adding a GPU Cluster Using Kubernetes

GPUStack supports adding a Kubernetes cluster as a GPU cluster.

Preparation

A Kubernetes cluster should be built with runtime class installed and configured on all nodes. In this tutorial, we will use a k3s cluster as example.

Create Kubernetes Cluster

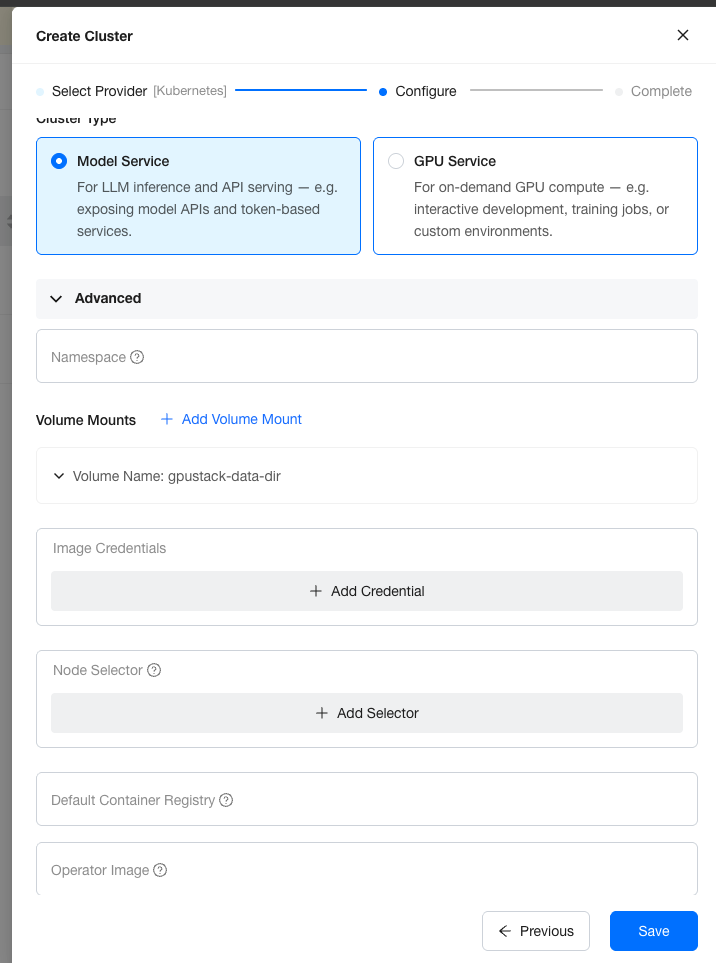

Please refer to the steps in Register Kubernetes Cluster

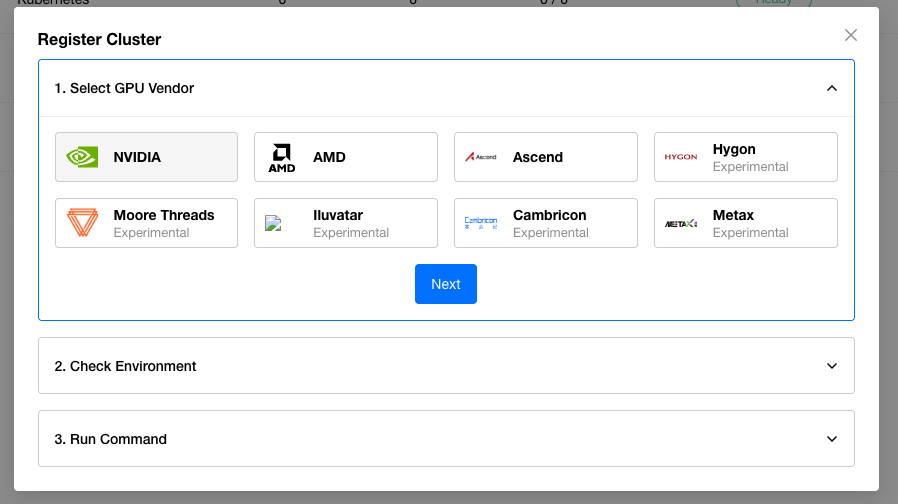

After created the Kubernetes provider cluster, select Nvidia as the GPU Vendor and click Next.

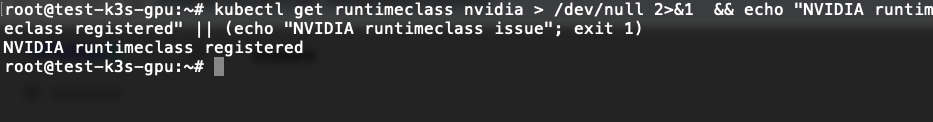

Use the script to check the environment, run the bash script in the k3s installed host.

Please keep in mind that, the runtimeclass resource in k8s is just a data record and doesn't represent the container runtime is well configured in every node. Make sure the container runtime for specified GPU vendor is configured or the worker won't be able to start.

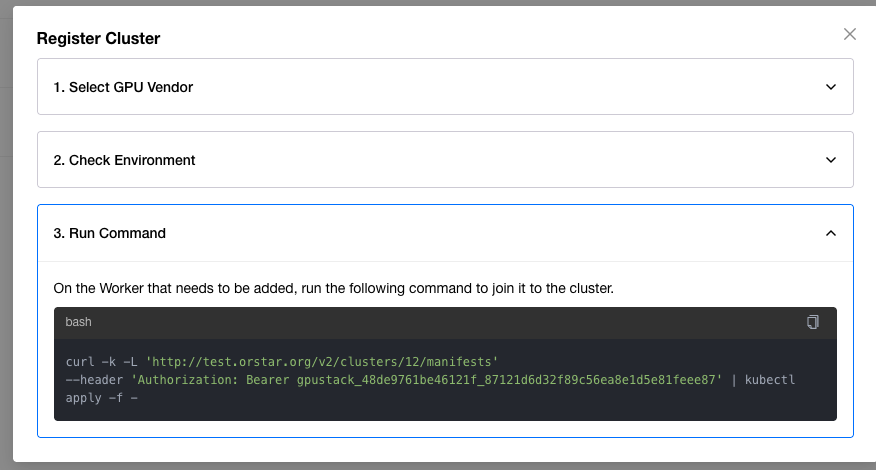

Copy the script in Run Command step and run it in the k3s installed host.

Waiting for Workers to be Provisioned

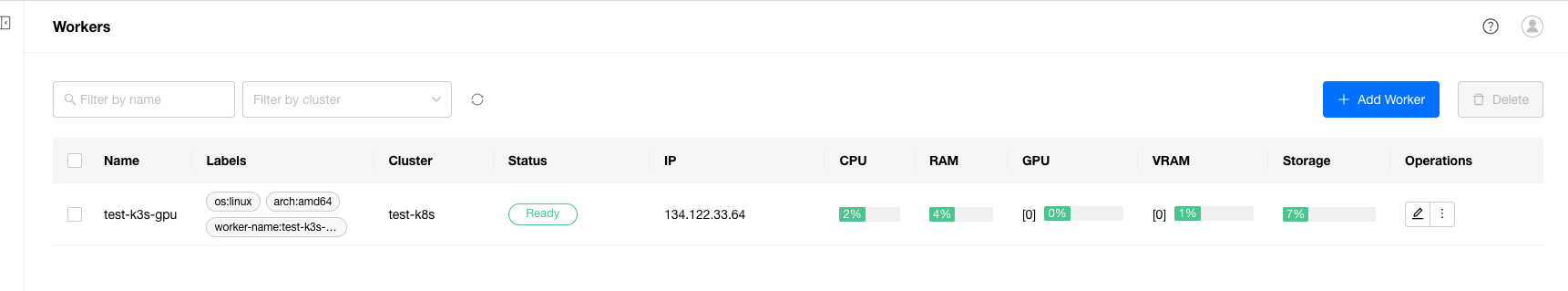

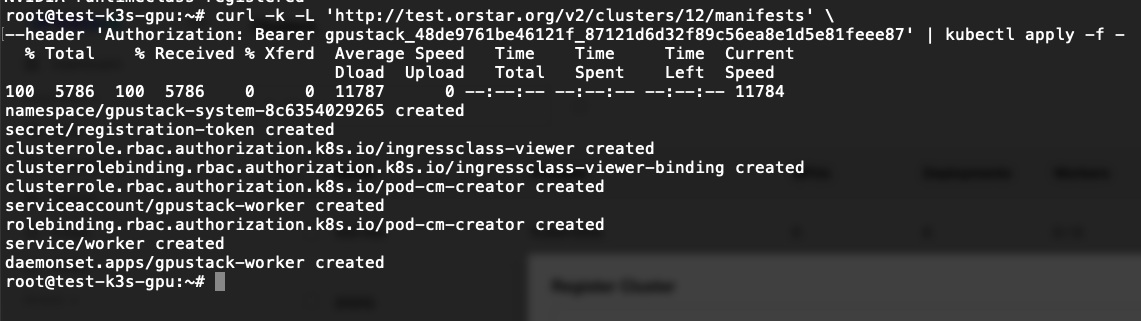

After applied the manifests into the Kubernetes cluster, we can wait for the worker nodes populated in Workers Page.

Once the worker reaches the Ready status, you can deploy models on it.
