Qwen3.5-9B のスループット最適化

結論

NVIDIA H100 80GB HBM3 上で Qwen/Qwen3.5-9B のスループットを最適化するための推奨設定：

推論サービスのコマンド

vllm serve Qwen/Qwen3.5-9B \
    --reasoning-parser=qwen3 \
    --performance-mode=throughput \
    --max-model-len=32768 \
    --max-num-seqs=512

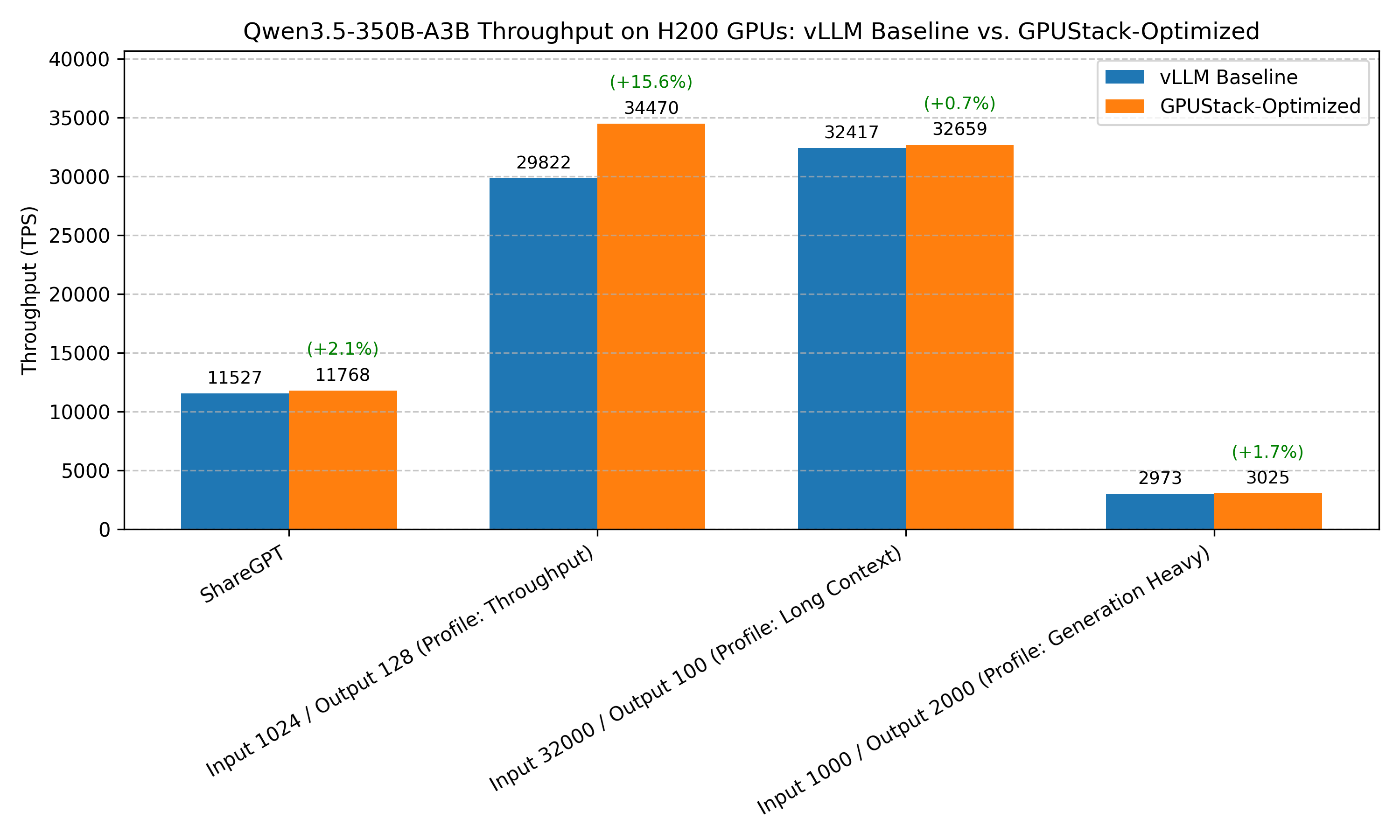

最適化前後のベンチマーク結果の比較：

ベンチマークケース	基準設定（最適化なしの vLLM）	最適化後
ShareGPT プロファイル	合計 TPS: 11527.14 平均 TPOT(ms): 15.12	合計 TPS: 11768.22 (+2.09%) 平均 TPOT(ms): 15.85
スループット重視プロファイル	合計 TPS: 29822.16 平均 TPOT(ms): 34.63	合計 TPS: 34470.14 (+15.59%) 平均 TPOT(ms): 36.97
長コンテキストプロファイル	合計 TPS: 32416.84 平均 TPOT(ms): 10.21	合計 TPS: 32658.73 (+0.75%) 平均 TPOT(ms): 9.97
生成の多いワークロードプロファイル	合計 TPS: 2973.42 平均 TPOT(ms): 0.33	合計 TPS: 3025.11 (+1.74%) 平均 TPOT(ms): 0.12

注記

本ベンチマークは、考えられるすべての最適化の組み合わせを網羅していません。たとえば、デフォルト設定で最も性能が高い推論エンジンを選び、それを追加調整の出発点としています。このような候補の絞り込みで得られるのは局所最適解であり、大域最適解とは限りません。
最大バッチサイズ、スケジューリング設定、拡張 KV キャッシュ、CUDA graph など、利用シナリオに応じた最適化もあります。本書の結論は、用途に合わせてさらに最適化するための出発点として利用できます。
本テストは特定のハードウェアとソフトウェアの構成で実施しています。推論エンジンの進化により、結論が変わる可能性があります。
量子化は精度に影響する場合がありますが、多くのモデルでは FP8 量子化による精度低下は 1% 未満です。詳細は評価結果を参照してください。そのため、低レイテンシーでのモデル提供には FP8 量子化を強く推奨します。
投機的デコーディングは、低並列度のリクエストのレイテンシーを大きく短縮できます。ただし、ベンチマークデータセットの分布やドラフトモデルの選択によって効果が異なります。たとえば、ここで選んだドラフトモデルは英語データで学習されているため、他の言語では十分な性能が得られない場合があります。

記載漏れや最新の変更を反映すべき点があれば、お知らせください。

実験環境

モデル

Qwen/Qwen3.5-9B

ハードウェア

NVIDIA H100 80GB HBM3

エンジンのバージョン

vLLM v0.17.1
SGLang v0.5.9

ベンチマーク手法

本プロジェクトでは、推論ワークロードに GPUStack のワンクリックベンチマーク機能を使用します。本書のベンチマークテストも、この手順で実行しました。

GPUStack のベンチマークは guidellm を基盤とし、ラッパープロジェクト benchmark-runner を介して実装されています。

以下に示すベンチマーク構成について、GPUStack がモデルのデプロイ、ベンチマークジョブの送信、結果の収集を処理します。

ベンチマークプロファイル

ShareGPT

dataset_name: ShareGPT
request_rate: 1000
total_requests: 1000

スループット

dataset_name: Random
dataset_input_tokens: 1024
dataset_output_tokens: 128
dataset_seed: 42
request_rate: 1000
total_requests: 1000

長コンテキスト

dataset_name: Random
dataset_input_tokens: 32000
dataset_output_tokens: 100
dataset_seed: 42
request_rate: 1
total_requests: 100

生成の多いワークロード

dataset_name: Random
dataset_input_tokens: 1000
dataset_output_tokens: 2000
dataset_seed: 42
request_rate: 1
total_requests: 200

実験結果

推論エンジンの選択

vLLM

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.74
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.27
Output token throughput (tok/s):         5202.94
Peak output token throughput (tok/s):    20132659.20
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11527.14
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.90
P99 Latency(s):                           51.16
---------------Time to First Token----------------
Mean TTFT (ms):                          1604.23
Median TTFT (ms):                        646.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5737.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.12
Median TPOT (ms):                        3.42
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.45
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            118.73
==================================================

SGLang

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--context-length=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  96.01
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              10.42
Output token throughput (tok/s):         2933.60
Peak output token throughput (tok/s):    92831.68
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6499.41
----------------------Latency---------------------
Mean Latency(s):                          39.08
Median Latency(s):                        41.18
P99 Latency(s):                           74.40
---------------Time to First Token----------------
Mean TTFT (ms):                          26217.15
Median TTFT (ms):                        34401.34
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           41101.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          138.86
Median TPOT (ms):                        112.19
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           591.70
---------------Inter-token Latency----------------
Mean ITL (ms):                           45.86
Median ITL (ms):                         49.31
P95 ITL (ms):                            N/A
P99 ITL (ms):                            59.71
==================================================

要約： vLLM 合計 TPS = 11527.14, SGLang 合計 TPS = 6499.41. vLLM は 5027.72 tok/s 高速 (77.36%); 平均 TPOT = 15.12 ms 対 138.86 ms, 短縮量 123.74 ms (89.11%).

プレフィックスキャッシュ

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--enable-prefix-caching
--max-model-len=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  56.47
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              17.71
Output token throughput (tok/s):         5066.42
Peak output token throughput (tok/s):    31242972.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11224.70
----------------------Latency---------------------
Mean Latency(s):                          24.90
Median Latency(s):                        22.40
P99 Latency(s):                           52.82
---------------Time to First Token----------------
Mean TTFT (ms):                          1995.45
Median TTFT (ms):                        1341.75
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           6549.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.66
Median TPOT (ms):                        5.21
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           130.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.60
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            120.90
==================================================

投機的デコーディング

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--speculative-config={"method":"mtp","num_speculative_tokens":4}
--max-model-len=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     514
Maximum request concurrency:             512
Benchmark duration (s):                  12.27
Total input tokens:                      23313
Total generated tokens:                  131530
Request throughput (req/s):              41.90
Output token throughput (tok/s):         12792.49
Peak output token throughput (tok/s):    13918875.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          15059.89
----------------------Latency---------------------
Mean Latency(s):                          11.77
Median Latency(s):                        11.81
P99 Latency(s):                           12.07
---------------Time to First Token----------------
Mean TTFT (ms):                          268.95
Median TTFT (ms):                        0.00
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           3010.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          42.50
Median TPOT (ms):                        31.35
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           214.99
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

パフォーマンスモード

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.66
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.29
Output token throughput (tok/s):         5189.06
Peak output token throughput (tok/s):    30482939.47
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11496.39
----------------------Latency---------------------
Mean Latency(s):                          24.00
Median Latency(s):                        21.51
P95 Latency(s):                           N/A
P99 Latency(s):                           51.01
---------------Time to First Token----------------
Mean TTFT (ms):                          1824.24
Median TTFT (ms):                        982.10
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5550.00
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.41
Median TPOT (ms):                        4.53
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.10
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.96
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            115.72
==================================================

最大シーケンス数

Seqs 512

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=512

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.89
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.22
Output token throughput (tok/s):         5174.68
Peak output token throughput (tok/s):    21197768.76
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11464.53
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.96
P95 Latency(s):                           48.41
P99 Latency(s):                           51.17
---------------Time to First Token----------------
Mean TTFT (ms):                          1893.47
Median TTFT (ms):                        1233.85
P95 TTFT (ms):                           5659.91
P99 TTFT (ms):                           6222.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.18
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           91.71
P99 TPOT (ms):                           127.60
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.48
Median ITL (ms):                         0.00
P95 ITL (ms):                            83.92
P99 ITL (ms):                            116.65
==================================================

Seqs 1024

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=1024

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.87
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.23
Output token throughput (tok/s):         5205.42
Peak output token throughput (tok/s):    22885338.88
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11532.64
----------------------Latency---------------------
Mean Latency(s):                          24.15
Median Latency(s):                        21.71
P95 Latency(s):                           48.49
P99 Latency(s):                           51.24
---------------Time to First Token----------------
Mean TTFT (ms):                          1864.39
Median TTFT (ms):                        1137.51
P95 TTFT (ms):                           5803.37
P99 TTFT (ms):                           6125.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.87
Median TPOT (ms):                        4.70
P95 TPOT (ms):                           93.65
P99 TPOT (ms):                           127.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.28
Median ITL (ms):                         0.00
P95 ITL (ms):                            87.39
P99 ITL (ms):                            116.13
==================================================

Seqs 2048

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=2048

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.28
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.09
Output token throughput (tok/s):         5140.19
Peak output token throughput (tok/s):    23553347.13
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11388.13
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.16
P95 Latency(s):                           48.86
P99 Latency(s):                           51.63
---------------Time to First Token----------------
Mean TTFT (ms):                          1853.85
Median TTFT (ms):                        1166.25
P95 TTFT (ms):                           5543.84
P99 TTFT (ms):                           6126.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.91
Median TPOT (ms):                        4.35
P95 TPOT (ms):                           100.86
P99 TPOT (ms):                           129.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.36
Median ITL (ms):                         0.00
P95 ITL (ms):                            94.30
P99 ITL (ms):                            118.29
==================================================

要約： Seqs 1024 合計 TPS = 11532.64, Seqs 2048 合計 TPS = 11388.13. Seqs 1024 は 144.51 tok/s 高速 (1.27%); 平均 TPOT = 16.87 ms 対 16.91 ms, 短縮量 0.04 ms (0.25%).

最大バッチトークン数 && パフォーマンスモード

24k

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=24576

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.56
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.33
Output token throughput (tok/s):         5196.51
Peak output token throughput (tok/s):    32356059.43
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11512.90
----------------------Latency---------------------
Mean Latency(s):                          23.98
Median Latency(s):                        21.78
P99 Latency(s):                           50.95
---------------Time to First Token----------------
Mean TTFT (ms):                          1870.77
Median TTFT (ms):                        1771.31
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5297.37
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.83
Median TPOT (ms):                        4.86
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           125.06
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.22
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            113.92
==================================================

32k

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.20
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.45
Output token throughput (tok/s):         5268.65
Peak output token throughput (tok/s):    29985425.61
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11672.72
----------------------Latency---------------------
Mean Latency(s):                          23.72
Median Latency(s):                        21.21
P99 Latency(s):                           50.44
---------------Time to First Token----------------
Mean TTFT (ms):                          1970.35
Median TTFT (ms):                        1344.71
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5206.15
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.53
Median TPOT (ms):                        5.04
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           125.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.56
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            111.59
==================================================

要約： 32k 合計 TPS = 11672.72, 24k 合計 TPS = 11512.90. 32k は 159.82 tok/s 高速 (1.39%); 平均 TPOT = 16.53 ms 対 15.83 ms, 増加量 0.70 ms (4.43% 低速).

最大シーケンス数 && パフォーマンスモード

最大シーケンス数 256

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=256

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  57.32
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              17.45
Output token throughput (tok/s):         4973.66
Peak output token throughput (tok/s):    30062067.31
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11019.18
----------------------Latency---------------------
Mean Latency(s):                          23.57
Median Latency(s):                        22.86
P99 Latency(s):                           49.24
---------------Time to First Token----------------
Mean TTFT (ms):                          11061.67
Median TTFT (ms):                        14983.14
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           18807.73
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          44.58
Median TPOT (ms):                        31.66
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           229.02
---------------Inter-token Latency----------------
Mean ITL (ms):                           5.29
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            54.12
==================================================

最大シーケンス数 512

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  53.72
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.62
Output token throughput (tok/s):         5311.75
Peak output token throughput (tok/s):    23159852.52
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11768.22
----------------------Latency---------------------
Mean Latency(s):                          23.50
Median Latency(s):                        21.13
P99 Latency(s):                           50.04
---------------Time to First Token----------------
Mean TTFT (ms):                          1826.53
Median TTFT (ms):                        1004.67
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5582.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.85
Median TPOT (ms):                        4.49
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.40
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.39
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            112.55
==================================================

要約： Max Num Seqs 512 合計 TPS = 11768.22, Max Num Seqs 256 合計 TPS = 11019.18. Max Num Seqs 512 は 749.05 tok/s 高速 (6.80%); 平均 TPOT = 15.85 ms 対 44.58 ms, 短縮量 28.73 ms (64.45%).

最大シーケンス数 && 最大バッチトークン数

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768
--max-num-seqs=512

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.33
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.07
Output token throughput (tok/s):         5115.71
Peak output token throughput (tok/s):    34751436.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11333.89
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.08
P99 Latency(s):                           51.69
---------------Time to First Token----------------
Mean TTFT (ms):                          1831.81
Median TTFT (ms):                        1345.90
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5161.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.39
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.92
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            116.48
==================================================

最大シーケンス数 && 最大バッチトークン数 && パフォーマンスモード

バッチトークン 32k、シーケンス数 512

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768
--max-num-seqs=512

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.33
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.07
Output token throughput (tok/s):         5115.71
Peak output token throughput (tok/s):    34751436.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11333.89
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.08
P95 Latency(s):                           N/A
P99 Latency(s):                           51.69
---------------Time to First Token----------------
Mean TTFT (ms):                          1831.81
Median TTFT (ms):                        1345.90
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5161.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.39
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.92
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            116.48
==================================================

バッチトークン 48k、シーケンス数 512

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=49152
--max-num-seqs=512

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.48
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.36
Output token throughput (tok/s):         5223.82
Peak output token throughput (tok/s):    33459752.45
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11573.41
----------------------Latency---------------------
Mean Latency(s):                          23.96
Median Latency(s):                        21.63
P95 Latency(s):                           N/A
P99 Latency(s):                           50.92
---------------Time to First Token----------------
Mean TTFT (ms):                          2022.91
Median TTFT (ms):                        2480.42
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5146.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.20
Median TPOT (ms):                        5.63
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           124.01
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.04
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            111.00
==================================================

バッチトークン 48k、シーケンス数 768

プロファイル： ShareGPT

バックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=49152
--max-num-seqs=768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.07
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.49
Output token throughput (tok/s):         5248.67
Peak output token throughput (tok/s):    36318641.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11628.47
----------------------Latency---------------------
Mean Latency(s):                          23.72
Median Latency(s):                        21.75
P95 Latency(s):                           N/A
P99 Latency(s):                           50.48
---------------Time to First Token----------------
Mean TTFT (ms):                          1817.87
Median TTFT (ms):                        1821.59
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5041.22
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.65
Median TPOT (ms):                        4.57
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.59
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.23
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            114.09
==================================================

要約： Batch Token 48k and Seqs 768 合計 TPS = 11628.47, Batch Token 32k and Seqs 512 合計 TPS = 11333.89. Batch Token 48k and Seqs 768 は 294.57 tok/s 高速 (2.60%); 平均 TPOT = 15.65 ms 対 16.39 ms, 短縮量 0.74 ms (4.51%).

最適化項目の一覧

ベンチマークケース	最適化後	基準設定
推論エンジンの選択	合計 TPS: 11527.14 (+0.00%) 平均 TPOT(ms): 15.12	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
プレフィックスキャッシュ	合計 TPS: 11224.70 (-2.62%) 平均 TPOT(ms): 16.66	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
投機的デコーディング	合計 TPS: 15059.89 (成功率： 51.5%, 最適化を不採用) 平均 TPOT(ms): 42.50	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
パフォーマンスモード	合計 TPS: 11496.39 (-0.27%) 平均 TPOT(ms): 16.41	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
最大シーケンス数	合計 TPS: 11532.64 (+0.05%) 平均 TPOT(ms): 16.87	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
最大バッチトークン数 && パフォーマンスモード	合計 TPS: 11672.72 (+1.26%) 平均 TPOT(ms): 16.53	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
最大シーケンス数 && パフォーマンスモード	合計 TPS: 11768.22 (+2.09%) 平均 TPOT(ms): 15.85	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
最大シーケンス数 && 最大バッチトークン数	合計 TPS: 11333.89 (-1.68%) 平均 TPOT(ms): 16.39	合計 TPS: 11527.14 平均 TPOT(ms): 15.12
最大シーケンス数 && 最大バッチトークン数 && パフォーマンスモード	合計 TPS: 11628.47 (+0.88%) 平均 TPOT(ms): 15.65	合計 TPS: 11527.14 平均 TPOT(ms): 15.12

その他のベンチマークケース

ShareGPT プロファイル

基準設定のバックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768

基準設定のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.74
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.27
Output token throughput (tok/s):         5202.94
Peak output token throughput (tok/s):    20132659.20
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11527.14
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.90
P99 Latency(s):                           51.16
---------------Time to First Token----------------
Mean TTFT (ms):                          1604.23
Median TTFT (ms):                        646.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5737.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.12
Median TPOT (ms):                        3.42
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.45
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            118.73
==================================================

最適化後のバックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

最適化後のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  53.72
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.62
Output token throughput (tok/s):         5311.75
Peak output token throughput (tok/s):    23159852.52
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11768.22
----------------------Latency---------------------
Mean Latency(s):                          23.50
Median Latency(s):                        21.13
P99 Latency(s):                           50.04
---------------Time to First Token----------------
Mean TTFT (ms):                          1826.53
Median TTFT (ms):                        1004.67
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5582.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.85
Median TPOT (ms):                        4.49
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.40
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.39
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            112.55
==================================================

スループット用プロファイル

基準設定のバックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768

基準設定のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  43.00
Total input tokens:                      1033932
Total generated tokens:                  128000
Request throughput (req/s):              23.26
Output token throughput (tok/s):         3285.25
Peak output token throughput (tok/s):    4418690.63
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          29822.16
----------------------Latency---------------------
Mean Latency(s):                          21.27
Median Latency(s):                        21.11
P99 Latency(s):                           36.40
---------------Time to First Token----------------
Mean TTFT (ms):                          4433.02
Median TTFT (ms):                        1510.44
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           14914.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          34.63
Median TPOT (ms):                        11.80
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           116.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

最適化後のバックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

最適化後のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  39.10
Total input tokens:                      1033932
Total generated tokens:                  128000
Request throughput (req/s):              25.55
Output token throughput (tok/s):         3797.28
Peak output token throughput (tok/s):    7724761.32
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          34470.14
----------------------Latency---------------------
Mean Latency(s):                          19.38
Median Latency(s):                        19.24
P99 Latency(s):                           31.36
---------------Time to First Token----------------
Mean TTFT (ms):                          4731.56
Median TTFT (ms):                        2442.61
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           13309.82
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          36.97
Median TPOT (ms):                        19.08
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           103.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

長コンテキスト用プロファイル

基準設定のバックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768

基準設定のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             9
Benchmark duration (s):                  100.89
Total input tokens:                      3200993
Total generated tokens:                  10000
Request throughput (req/s):              0.99
Output token throughput (tok/s):         100.96
Peak output token throughput (tok/s):    198.08
Peak concurrent requests:                9.00
Total Token throughput (tok/s):          32416.84
----------------------Latency---------------------
Mean Latency(s):                          7.88
Median Latency(s):                        8.10
P95 Latency(s):                           N/A
P99 Latency(s):                           8.54
---------------Time to First Token----------------
Mean TTFT (ms):                          1021.12
Median TTFT (ms):                        1020.12
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           1041.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          10.21
Median TPOT (ms):                        10.20
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           10.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

最適化後のバックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

最適化後のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             14
Benchmark duration (s):                  100.13
Total input tokens:                      3200993
Total generated tokens:                  10000
Request throughput (req/s):              1.00
Output token throughput (tok/s):         101.71
Peak output token throughput (tok/s):    227.24
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          32658.73
----------------------Latency---------------------
Mean Latency(s):                          8.00
Median Latency(s):                        8.00
P99 Latency(s):                           12.36
---------------Time to First Token----------------
Mean TTFT (ms):                          997.50
Median TTFT (ms):                        981.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           1421.73
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          9.97
Median TPOT (ms):                        9.81
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           14.22
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

生成の多いワークロード用プロファイル

基準設定のバックエンドパラメーター:

--reasoning-parser=qwen3
--max-model-len=32768

基準設定のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             18
Benchmark duration (s):                  214.96
Total input tokens:                      201982
Total generated tokens:                  400000
Request throughput (req/s):              0.93
Output token throughput (tok/s):         1975.75
Peak output token throughput (tok/s):    123795.17
Peak concurrent requests:                18.00
Total Token throughput (tok/s):          2973.42
----------------------Latency---------------------
Mean Latency(s):                          17.48
Median Latency(s):                        17.59
P99 Latency(s):                           17.60
---------------Time to First Token----------------
Mean TTFT (ms):                          54.95
Median TTFT (ms):                        55.17
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           59.50
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          0.33
Median TPOT (ms):                        0.03
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           8.79
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.31
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            8.77
==================================================

最適化後のバックエンドパラメーター:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

最適化後のベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             18
Benchmark duration (s):                  214.98
Total input tokens:                      201982
Total generated tokens:                  400000
Request throughput (req/s):              0.93
Output token throughput (tok/s):         2010.10
Peak output token throughput (tok/s):    59750.47
Peak concurrent requests:                18.00
Total Token throughput (tok/s):          3025.11
----------------------Latency---------------------
Mean Latency(s):                          17.55
Median Latency(s):                        17.66
P99 Latency(s):                           17.67
---------------Time to First Token----------------
Mean TTFT (ms):                          55.85
Median TTFT (ms):                        56.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           60.00
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          0.12
Median TPOT (ms):                        0.03
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           0.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.09
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================
