H200 上での GLM-5.2 のスループット最適化
結論
NVIDIA H200x8 上で zai-org/GLM-5.2-FP8 のスループットを最適化するための推奨設定：
推論サービスのコマンド
| python3 -m sglang.launch_server \
--model-path zai-org/GLM-5.2-FP8 \
--tp-size=8 \
--dp-size=8 \
--enable-dp-attention \
--mem-fraction-static=0.85 \
--moe-a2a-backend=deepep \
--max-running-requests=256 \
--kv-cache-dtype=fp8_e4m3
|

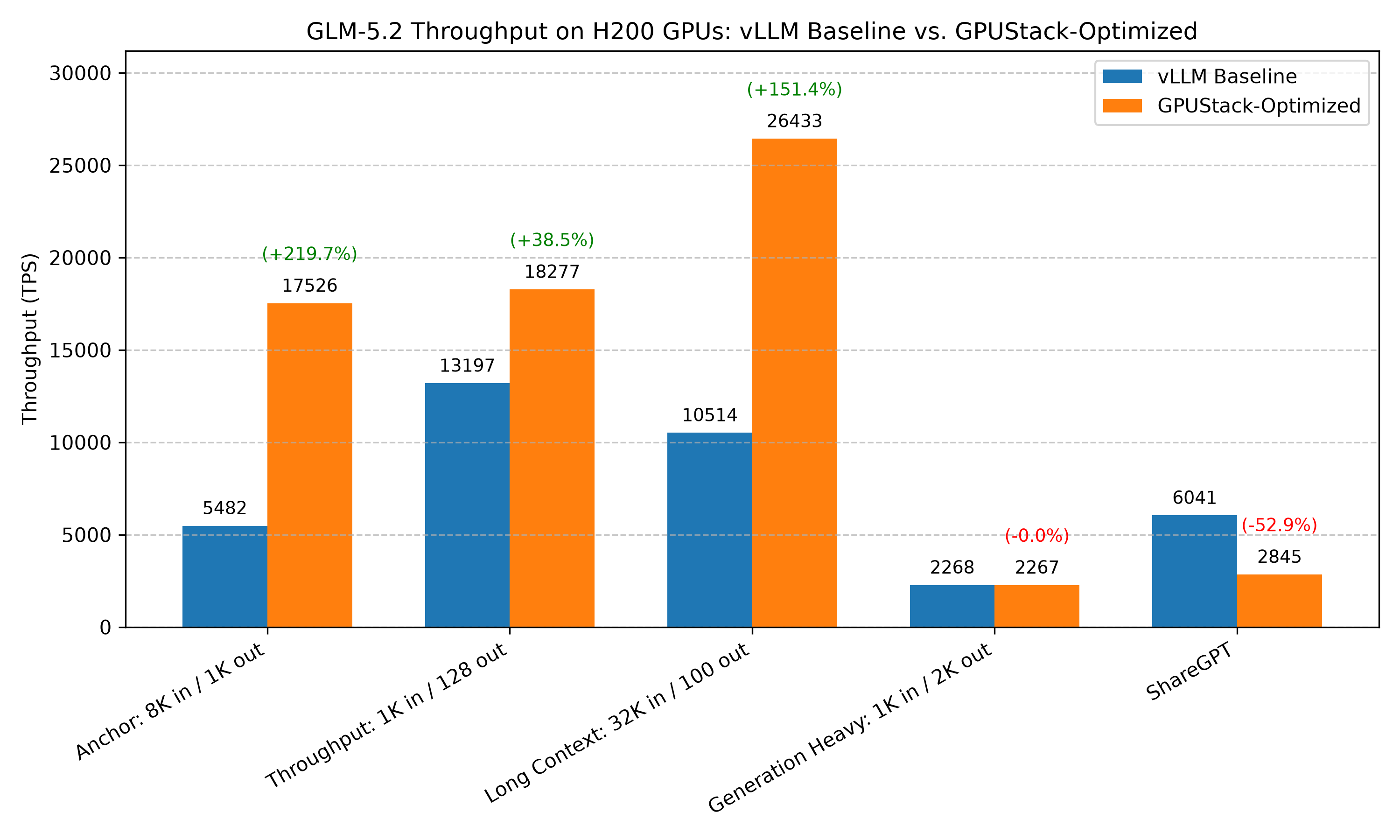

最適化前後のベンチマーク結果の比較：
| ベンチマークケース | 基準設定（最適化なしの vLLM） | 最適化後 |
| Balanced：入力 8K / 出力 1K（最適化対象） | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 | 合計 TPS: 17525.76 (+219.70%)
平均 TPOT(ms): 217.89 |
| 短コンテキスト（入力 1K / 出力 128） | 合計 TPS: 13196.90
平均 TPOT(ms): 316.73 | 合計 TPS: 18276.60 (+38.49%)
平均 TPOT(ms): 211.06 |
| 長コンテキスト（入力 32K / 出力 100） | 合計 TPS: 10513.68
平均 TPOT(ms): 1320.02 | 合計 TPS: 26433.15 (+151.42%)
平均 TPOT(ms): 537.26 |
| 生成の多いワークロード（入力 1K / 出力 2K） | 合計 TPS: 2268.18
平均 TPOT(ms): 42.11 | 合計 TPS: 2267.33 (-0.04%)
平均 TPOT(ms): 46.54 |
| ShareGPT | 合計 TPS: 6040.94
平均 TPOT(ms): 149.24 | 合計 TPS: 2845.48 (-52.90%)
平均 TPOT(ms): 331.21 |
注記
- 本ベンチマークは、考えられるすべての最適化の組み合わせを網羅していません。たとえば、デフォルト設定で最も性能が高い推論エンジンを選び、それを追加調整の出発点としています。このような候補の絞り込みで得られるのは局所最適解であり、大域最適解とは限りません。
- 最大バッチサイズ、スケジューリング設定、拡張 KV キャッシュ、CUDA graph など、利用シナリオに応じた最適化もあります。本書の結論は、用途に合わせてさらに最適化するための出発点として利用できます。
- 本テストは特定のハードウェアとソフトウェアの構成で実施しています。推論エンジンの進化により、結論が変わる可能性があります。
- 量子化は精度に影響する場合がありますが、多くのモデルでは FP8 量子化による精度低下は 1% 未満です。詳細は評価結果を参照してください。そのため、低レイテンシーでのモデル提供には FP8 量子化を強く推奨します。
- 推奨設定は、高並列度で中～長程度の入力を処理する基準ワークロード（入力 8K / 出力 1K）に合わせて調整しています。ShareGPT のような入出力の短い対話ワークロードでは、通常のテンソル並列より性能が低下します。DP-attention と DeepEP の最適化は長いシーケンスを対象としており、短いリクエストではそのオーバーヘッドを相殺できないためです（「その他のベンチマークケース」の ShareGPT を参照）。このトレードオフは GLM-5.2 の想定用途に適しています。優れたコーディング能力を生かすコーディングエージェントではコンテキストが主に長く、この設定が最適化している領域と一致します。
記載漏れや最新の変更を反映すべき点があれば、お知らせください。
実験環境
モデル
zai-org/GLM-5.2-FP8
ハードウェア
NVIDIA H200x8
エンジンのバージョン
- vLLM v0.24.0
- SGLang v0.5.14
ベンチマーク手法
本プロジェクトでは、推論ワークロードに GPUStack のワンクリックベンチマーク機能を使用します。本書のベンチマークテストも、この手順で実行しました。
GPUStack のベンチマークは guidellm を基盤とし、ラッパープロジェクト benchmark-runner を介して実装されています。
以下に示すベンチマーク構成について、GPUStack がモデルのデプロイ、ベンチマークジョブの送信、結果の収集を処理します。
ベンチマークプロファイル
Balanced
| dataset_name: Random
dataset_input_tokens: 8192
dataset_output_tokens: 1024
dataset_seed: 42
request_rate: 1000
total_requests: 1000
|
短コンテキスト
| dataset_name: Random
dataset_input_tokens: 1024
dataset_output_tokens: 128
dataset_seed: 42
request_rate: 1000
total_requests: 1000
|
長コンテキスト
| dataset_name: Random
dataset_input_tokens: 32000
dataset_output_tokens: 100
dataset_seed: 42
request_rate: 1
total_requests: 100
|
生成の多いワークロード
| dataset_name: Random
dataset_input_tokens: 1000
dataset_output_tokens: 2000
dataset_seed: 42
request_rate: 1
total_requests: 200
|
ShareGPT
| dataset_name: ShareGPT
request_rate: 1000
total_requests: 1000
|
実験結果
推論エンジンの選択
vLLM
- プロファイル：
Balanced - バックエンドパラメーター:
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1684.76
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.59
Output token throughput (tok/s): 608.31
Peak output token throughput (tok/s): 21900.04
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 5481.90
----------------------Latency---------------------
Mean Latency(s): 651.51
Median Latency(s): 823.57
P95 Latency(s): 857.92
P99 Latency(s): 858.57
---------------Time to First Token----------------
Mean TTFT (ms): 592315.54
Median TTFT (ms): 762631.30
P95 TTFT (ms): 799738.92
P99 TTFT (ms): 800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 636.24
Median TPOT (ms): 804.27
P95 TPOT (ms): 837.81
P99 TPOT (ms): 838.45
---------------Inter-token Latency----------------
Mean ITL (ms): 57.86
Median ITL (ms): 56.85
P95 ITL (ms): 69.41
P99 ITL (ms): 90.01
==================================================
|
SGLang
- プロファイル：
Balanced - バックエンドパラメーター:
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1425.58
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.70
Output token throughput (tok/s): 719.90
Peak output token throughput (tok/s): 36770.60
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 6487.53
----------------------Latency---------------------
Mean Latency(s): 553.77
Median Latency(s): 674.98
P95 Latency(s): 738.28
P99 Latency(s): 1087.06
---------------Time to First Token----------------
Mean TTFT (ms): 499353.08
Median TTFT (ms): 640537.31
P95 TTFT (ms): 692823.09
P99 TTFT (ms): 694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 540.79
Median TPOT (ms): 659.16
P95 TPOT (ms): 720.97
P99 TPOT (ms): 1061.58
---------------Inter-token Latency----------------
Mean ITL (ms): 53.19
Median ITL (ms): 41.87
P95 ITL (ms): 53.14
P99 ITL (ms): 661.38
==================================================
|
- 要約：
SGLang 合計 TPS = 6487.53, vLLM 合計 TPS = 5481.90. SGLang は 1005.62 tok/s 高速 (18.34%); 平均 TPOT = 540.79 ms 対 636.24 ms, 短縮量 95.45 ms (15.00%).
並列化戦略
TP
- プロファイル：
Balanced - バックエンドパラメーター:
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1425.58
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.70
Output token throughput (tok/s): 719.90
Peak output token throughput (tok/s): 36770.60
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 6487.53
----------------------Latency---------------------
Mean Latency(s): 553.77
Median Latency(s): 674.98
P95 Latency(s): 738.28
P99 Latency(s): 1087.06
---------------Time to First Token----------------
Mean TTFT (ms): 499353.08
Median TTFT (ms): 640537.31
P95 TTFT (ms): 692823.09
P99 TTFT (ms): 694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 540.79
Median TPOT (ms): 659.16
P95 TPOT (ms): 720.97
P99 TPOT (ms): 1061.58
---------------Inter-token Latency----------------
Mean ITL (ms): 53.19
Median ITL (ms): 41.87
P95 ITL (ms): 53.14
P99 ITL (ms): 661.38
==================================================
|
TP + DP-Attention
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--enable-dp-attention
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1464.79
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.68
Output token throughput (tok/s): 707.03
Peak output token throughput (tok/s): 36792.16
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 6371.59
----------------------Latency---------------------
Mean Latency(s): 566.77
Median Latency(s): 691.84
P95 Latency(s): 758.76
P99 Latency(s): 1226.15
---------------Time to First Token----------------
Mean TTFT (ms): 508420.96
Median TTFT (ms): 649948.91
P95 TTFT (ms): 704806.45
P99 TTFT (ms): 709287.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 553.48
Median TPOT (ms): 675.62
P95 TPOT (ms): 740.98
P99 TPOT (ms): 1197.41
---------------Inter-token Latency----------------
Mean ITL (ms): 57.03
Median ITL (ms): 40.44
P95 ITL (ms): 52.07
P99 ITL (ms): 658.59
==================================================
|
TP + DP + DP-Attention
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1334.85
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.75
Output token throughput (tok/s): 778.01
Peak output token throughput (tok/s): 33009.89
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 7011.17
----------------------Latency---------------------
Mean Latency(s): 509.42
Median Latency(s): 662.31
P95 Latency(s): 667.58
P99 Latency(s): 667.92
---------------Time to First Token----------------
Mean TTFT (ms): 474839.81
Median TTFT (ms): 625093.03
P95 TTFT (ms): 635816.93
P99 TTFT (ms): 636463.47
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 497.48
Median TPOT (ms): 646.79
P95 TPOT (ms): 651.93
P99 TPOT (ms): 652.26
---------------Inter-token Latency----------------
Mean ITL (ms): 33.81
Median ITL (ms): 33.03
P95 ITL (ms): 37.77
P99 ITL (ms): 38.03
==================================================
|
TP + DP + DP-Attention + EP
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--enable-dp-attention
--dp-size=8
--ep-size=8
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1430.76
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.70
Output token throughput (tok/s): 724.90
Peak output token throughput (tok/s): 36964.00
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 6532.56
----------------------Latency---------------------
Mean Latency(s): 546.29
Median Latency(s): 710.24
P95 Latency(s): 716.16
P99 Latency(s): 716.23
---------------Time to First Token----------------
Mean TTFT (ms): 509145.51
Median TTFT (ms): 672291.77
P95 TTFT (ms): 682441.07
P99 TTFT (ms): 682611.26
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 533.49
Median TPOT (ms): 693.59
P95 TPOT (ms): 699.37
P99 TPOT (ms): 699.44
---------------Inter-token Latency----------------
Mean ITL (ms): 36.31
Median ITL (ms): 35.36
P95 ITL (ms): 40.52
P99 ITL (ms): 40.69
==================================================
|
- 要約：
TP + DP + DP-Attention 合計 TPS = 7011.17, TP + DP-Attention 合計 TPS = 6371.59. TP + DP + DP-Attention は 639.58 tok/s 高速 (10.04%); 平均 TPOT = 497.48 ms 対 553.48 ms, 短縮量 56.00 ms (10.12%).
メモリ割り当て割合
auto
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1587.01
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.63
Output token throughput (tok/s): 652.68
Peak output token throughput (tok/s): 28960.54
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 5881.79
----------------------Latency---------------------
Mean Latency(s): 608.53
Median Latency(s): 792.41
P95 Latency(s): 798.47
P99 Latency(s): 798.63
---------------Time to First Token----------------
Mean TTFT (ms): 565850.91
Median TTFT (ms): 749005.91
P95 TTFT (ms): 758437.70
P99 TTFT (ms): 759022.89
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 594.26
Median TPOT (ms): 773.84
P95 TPOT (ms): 779.76
P99 TPOT (ms): 779.91
---------------Inter-token Latency----------------
Mean ITL (ms): 41.71
Median ITL (ms): 41.02
P95 ITL (ms): 45.77
P99 ITL (ms): 45.99
==================================================
|
0.8
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.8
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 890.94
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.12
Output token throughput (tok/s): 1173.22
Peak output token throughput (tok/s): 36646.25
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 10572.77
----------------------Latency---------------------
Mean Latency(s): 352.36
Median Latency(s): 385.98
P95 Latency(s): 453.81
P99 Latency(s): 743.15
---------------Time to First Token----------------
Mean TTFT (ms): 283237.85
Median TTFT (ms): 338538.99
P95 TTFT (ms): 395476.65
P99 TTFT (ms): 398036.19
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 344.10
Median TPOT (ms): 376.93
P95 TPOT (ms): 443.17
P99 TPOT (ms): 725.73
---------------Inter-token Latency----------------
Mean ITL (ms): 67.57
Median ITL (ms): 52.23
P95 ITL (ms): 61.80
P99 ITL (ms): 400.53
==================================================
|
0.85
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 688.60
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.45
Output token throughput (tok/s): 1527.01
Peak output token throughput (tok/s): 46500.08
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 13760.98
----------------------Latency---------------------
Mean Latency(s): 273.29
Median Latency(s): 272.67
P95 Latency(s): 362.52
P99 Latency(s): 488.73
---------------Time to First Token----------------
Mean TTFT (ms): 201642.60
Median TTFT (ms): 219374.83
P95 TTFT (ms): 293139.84
P99 TTFT (ms): 297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 266.89
Median TPOT (ms): 266.28
P95 TPOT (ms): 354.02
P99 TPOT (ms): 477.28
---------------Inter-token Latency----------------
Mean ITL (ms): 70.04
Median ITL (ms): 65.72
P95 ITL (ms): 85.73
P99 ITL (ms): 276.51
==================================================
|
- 要約：
0.85 合計 TPS = 13760.98, auto 合計 TPS = 5881.79. 0.85 は 7879.19 tok/s 高速 (133.96%); 平均 TPOT = 266.89 ms 対 594.26 ms, 短縮量 327.38 ms (55.09%).
プリフィルのチャンクサイズ
デフォルト
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 688.60
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.45
Output token throughput (tok/s): 1527.01
Peak output token throughput (tok/s): 46500.08
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 13760.98
----------------------Latency---------------------
Mean Latency(s): 273.29
Median Latency(s): 272.67
P95 Latency(s): 362.52
P99 Latency(s): 488.73
---------------Time to First Token----------------
Mean TTFT (ms): 201642.60
Median TTFT (ms): 219374.83
P95 TTFT (ms): 293139.84
P99 TTFT (ms): 297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 266.89
Median TPOT (ms): 266.28
P95 TPOT (ms): 354.02
P99 TPOT (ms): 477.28
---------------Inter-token Latency----------------
Mean ITL (ms): 70.04
Median ITL (ms): 65.72
P95 ITL (ms): 85.73
P99 ITL (ms): 276.51
==================================================
|
8K
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--chunked-prefill-size=8192
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 689.11
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.45
Output token throughput (tok/s): 1526.75
Peak output token throughput (tok/s): 52394.68
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 13758.60
----------------------Latency---------------------
Mean Latency(s): 273.27
Median Latency(s): 272.75
P95 Latency(s): 362.79
P99 Latency(s): 489.22
---------------Time to First Token----------------
Mean TTFT (ms): 201640.48
Median TTFT (ms): 219319.19
P95 TTFT (ms): 293076.86
P99 TTFT (ms): 297429.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 266.86
Median TPOT (ms): 266.36
P95 TPOT (ms): 354.28
P99 TPOT (ms): 477.76
---------------Inter-token Latency----------------
Mean ITL (ms): 70.02
Median ITL (ms): 65.70
P95 ITL (ms): 85.80
P99 ITL (ms): 276.29
==================================================
|
- 要約：
default 合計 TPS = 13760.98, 8K 合計 TPS = 13758.60. default は 2.37 tok/s 高速 (0.02%); 平均 TPOT = 266.89 ms 対 266.86 ms, 増加量 0.03 ms (0.01% 低速).
大きいプリフィルのチャンクサイズでのメモリ不足
この構成では、--chunked-prefill-size を 16384 または 32768 に設定するとメモリ不足で異常終了します。チャンクサイズを増やすとアクティベーション用の予約領域が増え、メモリプランナーがその分を KV キャッシュの予算から差し引くため、約 700B の FP8 重みと KV キャッシュに必要なメモリが不足します。動作するのは 8192 とデフォルト設定のみで、両者の差は測定ノイズの範囲内です。入力 8K ではチャンクサイズを調整してもスループットは改善しないため、推奨設定ではデフォルトのままにしています。
DeepEP と最大実行リクエスト数
max-running 64
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=64
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 945.02
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.05
Output token throughput (tok/s): 1105.14
Peak output token throughput (tok/s): 49070.69
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 9959.18
----------------------Latency---------------------
Mean Latency(s): 367.92
Median Latency(s): 462.73
P95 Latency(s): 516.66
P99 Latency(s): 517.52
---------------Time to First Token----------------
Mean TTFT (ms): 325930.74
Median TTFT (ms): 419854.01
P95 TTFT (ms): 468446.97
P99 TTFT (ms): 469030.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 359.30
Median TPOT (ms): 451.88
P95 TPOT (ms): 504.55
P99 TPOT (ms): 505.39
---------------Inter-token Latency----------------
Mean ITL (ms): 41.05
Median ITL (ms): 41.00
P95 ITL (ms): 47.87
P99 ITL (ms): 48.31
==================================================
|
max-running 256
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 657.33
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.52
Output token throughput (tok/s): 1603.58
Peak output token throughput (tok/s): 53623.54
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 14451.05
----------------------Latency---------------------
Mean Latency(s): 261.76
Median Latency(s): 288.37
P95 Latency(s): 362.40
P99 Latency(s): 474.82
---------------Time to First Token----------------
Mean TTFT (ms): 200415.03
Median TTFT (ms): 235618.38
P95 TTFT (ms): 296378.61
P99 TTFT (ms): 299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 255.63
Median TPOT (ms): 281.61
P95 TPOT (ms): 353.91
P99 TPOT (ms): 463.69
---------------Inter-token Latency----------------
Mean ITL (ms): 59.97
Median ITL (ms): 53.70
P95 ITL (ms): 70.44
P99 ITL (ms): 286.92
==================================================
|
max-running 512
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=512
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 666.14
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.50
Output token throughput (tok/s): 1581.39
Peak output token throughput (tok/s): 38164.10
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 14251.08
----------------------Latency---------------------
Mean Latency(s): 265.47
Median Latency(s): 292.45
P95 Latency(s): 368.40
P99 Latency(s): 482.40
---------------Time to First Token----------------
Mean TTFT (ms): 203755.52
Median TTFT (ms): 239495.62
P95 TTFT (ms): 301525.04
P99 TTFT (ms): 304478.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 259.25
Median TPOT (ms): 285.59
P95 TPOT (ms): 359.76
P99 TPOT (ms): 471.09
---------------Inter-token Latency----------------
Mean ITL (ms): 60.33
Median ITL (ms): 54.22
P95 ITL (ms): 70.59
P99 ITL (ms): 291.22
==================================================
|
- 要約：
max-running 256 合計 TPS = 14451.05, max-running 64 合計 TPS = 9959.18. max-running 256 は 4491.87 tok/s 高速 (45.10%); 平均 TPOT = 255.63 ms 対 359.30 ms, 短縮量 103.67 ms (28.85%).
DeepEP モード
auto
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 657.33
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.52
Output token throughput (tok/s): 1603.58
Peak output token throughput (tok/s): 53623.54
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 14451.05
----------------------Latency---------------------
Mean Latency(s): 261.76
Median Latency(s): 288.37
P95 Latency(s): 362.40
P99 Latency(s): 474.82
---------------Time to First Token----------------
Mean TTFT (ms): 200415.03
Median TTFT (ms): 235618.38
P95 TTFT (ms): 296378.61
P99 TTFT (ms): 299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 255.63
Median TPOT (ms): 281.61
P95 TPOT (ms): 353.91
P99 TPOT (ms): 463.69
---------------Inter-token Latency----------------
Mean ITL (ms): 59.97
Median ITL (ms): 53.70
P95 ITL (ms): 70.44
P99 ITL (ms): 286.92
==================================================
|
normal
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--deepep-mode=normal
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 2722.41
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.37
Output token throughput (tok/s): 378.79
Peak output token throughput (tok/s): 63639.56
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 3413.56
----------------------Latency---------------------
Mean Latency(s): 1084.11
Median Latency(s): 1206.16
P95 Latency(s): 1510.02
P99 Latency(s): 1897.83
---------------Time to First Token----------------
Mean TTFT (ms): 773983.92
Median TTFT (ms): 924140.14
P95 TTFT (ms): 1214572.96
P99 TTFT (ms): 1217017.99
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1058.70
Median TPOT (ms): 1177.89
P95 TPOT (ms): 1474.63
P99 TPOT (ms): 1853.35
---------------Inter-token Latency----------------
Mean ITL (ms): 303.15
Median ITL (ms): 277.82
P95 ITL (ms): 294.11
P99 ITL (ms): 1229.38
==================================================
|
- 要約：
auto 合計 TPS = 14451.05, normal 合計 TPS = 3413.56. auto は 11037.49 tok/s 高速 (323.34%); 平均 TPOT = 255.63 ms 対 1058.70 ms, 短縮量 803.07 ms (75.85%).
KV キャッシュのデータ型
bf16
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 657.33
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.52
Output token throughput (tok/s): 1603.58
Peak output token throughput (tok/s): 53623.54
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 14451.05
----------------------Latency---------------------
Mean Latency(s): 261.76
Median Latency(s): 288.37
P95 Latency(s): 362.40
P99 Latency(s): 474.82
---------------Time to First Token----------------
Mean TTFT (ms): 200415.03
Median TTFT (ms): 235618.38
P95 TTFT (ms): 296378.61
P99 TTFT (ms): 299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 255.63
Median TPOT (ms): 281.61
P95 TPOT (ms): 353.91
P99 TPOT (ms): 463.69
---------------Inter-token Latency----------------
Mean ITL (ms): 59.97
Median ITL (ms): 53.70
P95 ITL (ms): 70.44
P99 ITL (ms): 286.92
==================================================
|
fp8_e4m3
- プロファイル：
Balanced - バックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
ベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 539.39
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.85
Output token throughput (tok/s): 1944.77
Peak output token throughput (tok/s): 60301.69
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 17525.76
----------------------Latency---------------------
Mean Latency(s): 223.12
Median Latency(s): 219.64
P95 Latency(s): 327.25
P99 Latency(s): 327.80
---------------Time to First Token----------------
Mean TTFT (ms): 143076.43
Median TTFT (ms): 151142.06
P95 TTFT (ms): 234645.47
P99 TTFT (ms): 239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 217.89
Median TPOT (ms): 214.49
P95 TPOT (ms): 319.58
P99 TPOT (ms): 320.12
---------------Inter-token Latency----------------
Mean ITL (ms): 78.24
Median ITL (ms): 74.83
P95 ITL (ms): 105.11
P99 ITL (ms): 217.21
==================================================
|
- 要約：
fp8_e4m3 合計 TPS = 17525.76, bf16 合計 TPS = 14451.05. fp8_e4m3 は 3074.72 tok/s 高速 (21.28%); 平均 TPOT = 217.89 ms 対 255.63 ms, 短縮量 37.74 ms (14.76%).
FP8 KV キャッシュの精度検証（GSM8K）
Hopper では FP8 KV キャッシュがデフォルトではありません（SGLang は bf16 を自動選択します）。スループットが改善するのは、KV キャッシュが制約となる高並列度・長コンテキストの領域に限られます。品質が低下しないことを確認するため、GSM8K で簡易検証を実施しました（200 件、思考モード無効、greedy）：
| KV のデータ型 | GSM8K スコア |
| bf16 | 0.975 |
| fp8_e4m3 | 0.980 |
差は測定ノイズの範囲内（200 問あたり約 1 問）であり、測定可能な精度低下はありませんでした。ただし、ご自身のワークロードでも精度を検証してください。特に長コンテキストでは、FP8 の量子化誤差が蓄積する可能性があります。
最適化項目の一覧
| ベンチマークケース | 最適化後 | 基準設定 |
| 推論エンジンの選択 | 合計 TPS: 6487.53 (+18.34%)
平均 TPOT(ms): 540.79 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| 並列化戦略 | 合計 TPS: 7011.17 (+27.90%)
平均 TPOT(ms): 497.48 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| メモリ割り当て割合 | 合計 TPS: 13760.98 (+151.03%)
平均 TPOT(ms): 266.89 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| プリフィルのチャンクサイズ | 合計 TPS: 13760.98 (+151.03%)
平均 TPOT(ms): 266.89 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| DeepEP + 最大実行リクエスト数 | 合計 TPS: 14451.05 (+163.61%)
平均 TPOT(ms): 255.63 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| DeepEP モード | 合計 TPS: 14451.05 (+163.61%)
平均 TPOT(ms): 255.63 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
| KV キャッシュのデータ型 | 合計 TPS: 17525.76 (+219.70%)
平均 TPOT(ms): 217.89 | 合計 TPS: 5481.90
平均 TPOT(ms): 636.24 |
その他のベンチマークケース
Balanced：入力 8K / 出力 1K（最適化対象）
基準設定のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 1684.76
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 0.59
Output token throughput (tok/s): 608.31
Peak output token throughput (tok/s): 21900.04
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 5481.90
----------------------Latency---------------------
Mean Latency(s): 651.51
Median Latency(s): 823.57
P95 Latency(s): 857.92
P99 Latency(s): 858.57
---------------Time to First Token----------------
Mean TTFT (ms): 592315.54
Median TTFT (ms): 762631.30
P95 TTFT (ms): 799738.92
P99 TTFT (ms): 800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 636.24
Median TPOT (ms): 804.27
P95 TPOT (ms): 837.81
P99 TPOT (ms): 838.45
---------------Inter-token Latency----------------
Mean ITL (ms): 57.86
Median ITL (ms): 56.85
P95 ITL (ms): 69.41
P99 ITL (ms): 90.01
==================================================
|
- 最適化後のバックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
最適化後のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 539.39
Total input tokens: 8204000
Total generated tokens: 1024000
Request throughput (req/s): 1.85
Output token throughput (tok/s): 1944.77
Peak output token throughput (tok/s): 60301.69
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 17525.76
----------------------Latency---------------------
Mean Latency(s): 223.12
Median Latency(s): 219.64
P95 Latency(s): 327.25
P99 Latency(s): 327.80
---------------Time to First Token----------------
Mean TTFT (ms): 143076.43
Median TTFT (ms): 151142.06
P95 TTFT (ms): 234645.47
P99 TTFT (ms): 239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 217.89
Median TPOT (ms): 214.49
P95 TPOT (ms): 319.58
P99 TPOT (ms): 320.12
---------------Inter-token Latency----------------
Mean ITL (ms): 78.24
Median ITL (ms): 74.83
P95 ITL (ms): 105.11
P99 ITL (ms): 217.21
==================================================
|
短コンテキスト（入力 1K / 出力 128）
基準設定のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 88.45
Total input tokens: 1036000
Total generated tokens: 128000
Request throughput (req/s): 11.29
Output token throughput (tok/s): 1451.20
Peak output token throughput (tok/s): 102180.57
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 13196.90
----------------------Latency---------------------
Mean Latency(s): 40.54
Median Latency(s): 39.42
P95 Latency(s): 57.97
P99 Latency(s): 60.17
---------------Time to First Token----------------
Mean TTFT (ms): 19596.45
Median TTFT (ms): 22675.56
P95 TTFT (ms): 34452.65
P99 TTFT (ms): 36690.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 316.73
Median TPOT (ms): 307.96
P95 TPOT (ms): 452.86
P99 TPOT (ms): 470.04
---------------Inter-token Latency----------------
Mean ITL (ms): 164.92
Median ITL (ms): 179.87
P95 ITL (ms): 185.20
P99 ITL (ms): 223.80
==================================================
|
- 最適化後のバックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
最適化後のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 65.34
Total input tokens: 1036000
Total generated tokens: 128000
Request throughput (req/s): 15.29
Output token throughput (tok/s): 2009.80
Peak output token throughput (tok/s): 54517.94
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 18276.60
----------------------Latency---------------------
Mean Latency(s): 27.02
Median Latency(s): 29.93
P95 Latency(s): 30.87
P99 Latency(s): 44.75
---------------Time to First Token----------------
Mean TTFT (ms): 17437.67
Median TTFT (ms): 19408.58
P95 TTFT (ms): 24509.18
P99 TTFT (ms): 31027.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 211.06
Median TPOT (ms): 233.85
P95 TPOT (ms): 241.16
P99 TPOT (ms): 349.60
---------------Inter-token Latency----------------
Mean ITL (ms): 75.41
Median ITL (ms): 75.81
P95 ITL (ms): 109.63
P99 ITL (ms): 113.08
==================================================
|
長コンテキスト（入力 32K / 出力 100）
基準設定のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 100
Maximum request concurrency: 77
Benchmark duration (s): 308.44
Total input tokens: 3201200
Total generated tokens: 10000
Request throughput (req/s): 0.32
Output token throughput (tok/s): 32.74
Peak output token throughput (tok/s): 4245.77
Peak concurrent requests: 77.00
Total Token throughput (tok/s): 10513.68
----------------------Latency---------------------
Mean Latency(s): 132.00
Median Latency(s): 131.48
P95 Latency(s): 214.57
P99 Latency(s): 217.83
---------------Time to First Token----------------
Mean TTFT (ms): 106054.23
Median TTFT (ms): 104360.05
P95 TTFT (ms): 198608.95
P99 TTFT (ms): 206310.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1320.02
Median TPOT (ms): 1314.76
P95 TPOT (ms): 2145.71
P99 TPOT (ms): 2178.26
---------------Inter-token Latency----------------
Mean ITL (ms): 262.10
Median ITL (ms): 274.05
P95 ITL (ms): 281.04
P99 ITL (ms): 281.32
==================================================
|
- 最適化後のバックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
最適化後のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 100
Maximum request concurrency: 77
Benchmark duration (s): 135.63
Total input tokens: 3201200
Total generated tokens: 10000
Request throughput (req/s): 0.74
Output token throughput (tok/s): 82.32
Peak output token throughput (tok/s): 13906.10
Peak concurrent requests: 77.00
Total Token throughput (tok/s): 26433.15
----------------------Latency---------------------
Mean Latency(s): 53.73
Median Latency(s): 53.63
P95 Latency(s): 76.27
P99 Latency(s): 78.63
---------------Time to First Token----------------
Mean TTFT (ms): 23225.41
Median TTFT (ms): 20088.83
P95 TTFT (ms): 34063.13
P99 TTFT (ms): 35622.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 537.26
Median TPOT (ms): 536.30
P95 TPOT (ms): 762.65
P99 TPOT (ms): 786.26
---------------Inter-token Latency----------------
Mean ITL (ms): 308.09
Median ITL (ms): 304.06
P95 ITL (ms): 621.19
P99 ITL (ms): 625.53
==================================================
|
生成の多いワークロード（入力 1K / 出力 2K）
基準設定のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 200
Maximum request concurrency: 91
Benchmark duration (s): 265.81
Total input tokens: 202400
Total generated tokens: 400000
Request throughput (req/s): 0.75
Output token throughput (tok/s): 1506.10
Peak output token throughput (tok/s): 41424.97
Peak concurrent requests: 91.00
Total Token throughput (tok/s): 2268.18
----------------------Latency---------------------
Mean Latency(s): 84.22
Median Latency(s): 86.45
P95 Latency(s): 90.73
P99 Latency(s): 90.83
---------------Time to First Token----------------
Mean TTFT (ms): 236.63
Median TTFT (ms): 235.39
P95 TTFT (ms): 254.39
P99 TTFT (ms): 257.63
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 42.11
Median TPOT (ms): 43.22
P95 TPOT (ms): 45.37
P99 TPOT (ms): 45.42
---------------Inter-token Latency----------------
Mean ITL (ms): 42.01
Median ITL (ms): 43.13
P95 ITL (ms): 45.27
P99 ITL (ms): 45.32
==================================================
|
- 最適化後のバックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
最適化後のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 200
Maximum request concurrency: 103
Benchmark duration (s): 266.01
Total input tokens: 202400
Total generated tokens: 400000
Request throughput (req/s): 0.75
Output token throughput (tok/s): 1505.53
Peak output token throughput (tok/s): 33577.32
Peak concurrent requests: 103.00
Total Token throughput (tok/s): 2267.33
----------------------Latency---------------------
Mean Latency(s): 93.09
Median Latency(s): 96.15
P95 Latency(s): 102.79
P99 Latency(s): 102.95
---------------Time to First Token----------------
Mean TTFT (ms): 374.11
Median TTFT (ms): 355.12
P95 TTFT (ms): 479.63
P99 TTFT (ms): 747.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 46.54
Median TPOT (ms): 48.07
P95 TPOT (ms): 51.40
P99 TPOT (ms): 51.47
---------------Inter-token Latency----------------
Mean ITL (ms): 46.38
Median ITL (ms): 47.92
P95 ITL (ms): 51.24
P99 ITL (ms): 51.32
==================================================
|
ShareGPT
基準設定のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 99.70
Total input tokens: 328145
Total generated tokens: 270248
Request throughput (req/s): 10.03
Output token throughput (tok/s): 2728.23
Peak output token throughput (tok/s): 99078.05
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 6040.94
----------------------Latency---------------------
Mean Latency(s): 40.33
Median Latency(s): 36.92
P95 Latency(s): 80.82
P99 Latency(s): 89.73
---------------Time to First Token----------------
Mean TTFT (ms): 3745.78
Median TTFT (ms): 1735.57
P95 TTFT (ms): 11581.05
P99 TTFT (ms): 13380.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 149.24
Median TPOT (ms): 140.13
P95 TPOT (ms): 242.35
P99 TPOT (ms): 318.37
---------------Inter-token Latency----------------
Mean ITL (ms): 135.88
Median ITL (ms): 132.05
P95 ITL (ms): 209.02
P99 ITL (ms): 246.28
==================================================
|
- 最適化後のバックエンドパラメーター:
| --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
|
最適化後のベンチマーク結果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 512
Benchmark duration (s): 211.07
Total input tokens: 328145
Total generated tokens: 270248
Request throughput (req/s): 4.74
Output token throughput (tok/s): 1285.09
Peak output token throughput (tok/s): 33224.09
Peak concurrent requests: 512.00
Total Token throughput (tok/s): 2845.48
----------------------Latency---------------------
Mean Latency(s): 89.51
Median Latency(s): 87.50
P95 Latency(s): 162.23
P99 Latency(s): 186.86
---------------Time to First Token----------------
Mean TTFT (ms): 41335.55
Median TTFT (ms): 53587.71
P95 TTFT (ms): 71490.14
P99 TTFT (ms): 79840.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 331.21
Median TPOT (ms): 270.24
P95 TPOT (ms): 620.79
P99 TPOT (ms): 1143.93
---------------Inter-token Latency----------------
Mean ITL (ms): 178.92
Median ITL (ms): 205.22
P95 ITL (ms): 223.71
P99 ITL (ms): 239.28
==================================================
|
