NVIDIA H200 GPU 上での DeepSeek-V3.2 のスループット最適化

結論

単一ノードの H200x8 上で DeepSeek-V3.2 のスループットを最適化するための推奨設定：

推論サービスのコマンド

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

tool_chat_template_deepseekv32.jinja へのリンク。

以下のベンチマークに基づき、8×H200 上での DeepSeek-V3.2 のスループット最適化には、上記の設定を推奨します。

並列化とツール呼び出し設定の性能改善が最も大きいため、推奨コマンドに含めています。コンテキスト長の調整によってスループットをさらに高められますが、ワークロードへの依存が大きいため、実際の利用状況に応じて調整してください。 アテンションバックエンドの最適化には効果がありますが、改善幅が比較的小さく、データセットによっても変わる可能性があるため、デフォルトの推奨設定には含めていません。

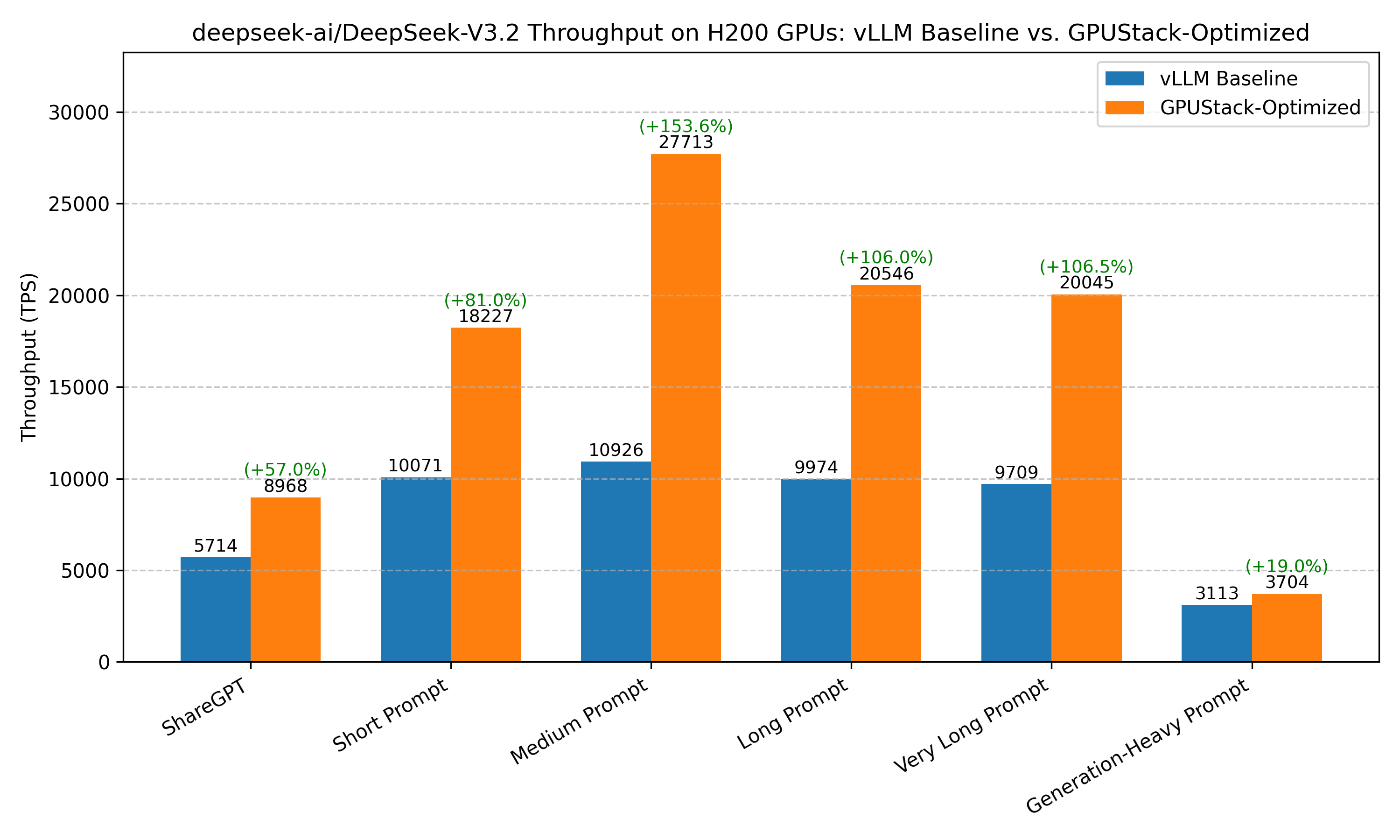

最適化前後のベンチマーク結果の比較：

ベンチマークケース	基準設定（最適化なしの vLLM）	最適化後
ShareGPT	合計 TPS: 5713.95 平均 TPOT(ms): 275.03	合計 TPS: 8968.32 (+56.95%) 平均 TPOT(ms): 203.05
短いプロンプト	合計 TPS: 10071.49 平均 TPOT(ms): 781.80	合計 TPS: 18227.38 (+80.98%) 平均 TPOT(ms): 776.55
中程度のプロンプト	合計 TPS: 10925.59 平均 TPOT(ms): 354.59	合計 TPS: 27712.54 (+153.65%) 平均 TPOT(ms): 192.24
長いプロンプト	合計 TPS: 9974.26 平均 TPOT(ms): 226.74	合計 TPS: 20545.67 (+105.99%) 平均 TPOT(ms): 177.95
非常に長いプロンプト	合計 TPS: 9709.27 平均 TPOT(ms): 472.52	合計 TPS: 20045.18 (+106.45%) 平均 TPOT(ms): 246.26
生成の多いプロンプト	合計 TPS: 3112.52 平均 TPOT(ms): 45.72	合計 TPS: 3703.98 (+19.0%) 平均 TPOT(ms): 39.45

注記

本ベンチマークは、考えられるすべての最適化の組み合わせを網羅していません。たとえば、デフォルト設定で最も性能が高い推論エンジンを選び、それを追加調整の出発点としています。このような候補の絞り込みで得られるのは局所最適解であり、大域最適解とは限りません。
最大バッチサイズ、スケジューリング設定、拡張 KV キャッシュ、CUDA graph など、利用シナリオに応じた最適化もあります。本書の結論は、用途に合わせてさらに最適化するための出発点として利用できます。
本テストは特定のハードウェアとソフトウェアの構成で実施しています。推論エンジンの進化により、結論が変わる可能性があります。

記載漏れや最新の変更を反映すべき点があれば、お知らせください。

最適化の目標

高並列度のリクエストで高スループットを実現します。

実験環境

モデル

deepseek-ai/DeepSeek-V3.2

ハードウェア

単一ノードに 8 × NVIDIA H200 SXM GPU。

エンジンのバージョン

vLLM: v0.13.0
SGLang: v0.5.6.post2
TensorRT-LLM: 1.2.0rc5

ベンチマークデータセット

ShareGPT
シーケンス長を変えたランダムデータセット：
- 非常に長いプロンプト： 32000 入力トークン, 100 出力トークン
- 長いプロンプト： 4000 入力トークン, 200 出力トークン
- 中程度のプロンプト： 2000 入力トークン, 100 出力トークン
- 短いプロンプト： 128 入力トークン, 4 出力トークン
- 生成の多いプロンプト： 1K 入力トークン, 2K 出力トークン

ベンチマークスクリプト

モデルの性能評価には vLLM bench CLI ツールを使用します。ベンチマークを実行するコマンドは次のとおりです：

# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 1000

# Benchmark on random dataset (fixed seed for reproducibility)
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name random --random-input-len 4000 --random-output-len 200 --num-prompts 500 --seed 42

実験結果

1. 推論エンジンの基準設定

vLLM

推論サービスのスクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  72.75
Total input tokens:                      219111
Total generated tokens:                  196599
Request throughput (req/s):              13.75
Output token throughput (tok/s):         2702.26
Peak output token throughput (tok/s):    6009.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5713.95
---------------Time to First Token----------------
Mean TTFT (ms):                          13054.63
Median TTFT (ms):                        12849.39
P99 TTFT (ms):                           22754.42
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          275.03
Median TPOT (ms):                        171.63
P99 TPOT (ms):                           666.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           131.14
Median ITL (ms):                         81.97
P99 ITL (ms):                            668.29
==================================================

SGLang

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  138.25
Total input tokens:                      219111
Total generated tokens:                  197337
Request throughput (req/s):              7.23
Output token throughput (tok/s):         1427.44
Peak output token throughput (tok/s):    7949.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3012.37
---------------Time to First Token----------------
Mean TTFT (ms):                          11470.15
Median TTFT (ms):                        11240.35
P99 TTFT (ms):                           22363.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1103.96
Median TPOT (ms):                        672.86
P99 TPOT (ms):                           4231.55
---------------Inter-token Latency----------------
Mean ITL (ms):                           389.06
Median ITL (ms):                         64.46
P99 ITL (ms):                            3013.62
==================================================

TensorRT-LLM

推論サービスのスクリプト

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  236.70
Total input tokens:                      215176
Total generated tokens:                  194893
Request throughput (req/s):              4.16
Output token throughput (tok/s):         823.39
Peak output token throughput (tok/s):    4212.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          1732.48
---------------Time to First Token----------------
Mean TTFT (ms):                          65710.22
Median TTFT (ms):                        66076.17
P99 TTFT (ms):                           125723.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1391.76
Median TPOT (ms):                        608.74
P99 TPOT (ms):                           4785.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           459.69
Median ITL (ms):                         141.56
P99 ITL (ms):                            4910.46
==================================================

結果： vLLM (5713.95 tok/s) > SGLang(3012.37 tok/s) > TensorRT-LLM (1732.48 tok/s)

2. 最適化：vLLM

並列化: DP+EP

推論サービスのスクリプト

# 81920 is half context, full context OOM
vllm serve deepseek-ai/DeepSeek-V3.2 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-tp 1 -dp 8 --enable-expert-parallel --max-model-len 81920

ベンチマーク結果

Successful requests:                     1000
Benchmark duration (s):                  65.62
Total input tokens:                      219111
Total generated tokens:                  197109
Request throughput (req/s):              15.24
Output token throughput (tok/s):         3003.90
Peak output token throughput (tok/s):    10222.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          6343.10
---------------Time to First Token----------------
Mean TTFT (ms):                          9144.24
Median TTFT (ms):                        10233.68
P99 TTFT (ms):                           14920.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          278.22
Median TPOT (ms):                        115.72
P99 TPOT (ms):                           2048.82
---------------Inter-token Latency----------------
Mean ITL (ms):                           100.47
Median ITL (ms):                         74.61
P99 ITL (ms):                            1239.62
==================================================

並列化: DCP

推論サービスのスクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-dcp 8

DeepSeek V3.2 は FlashMLA の疎なアテンションバックエンドを使用しますが、現在、このバックエンドはデコード時に softmax の log-sum-exp（LSE）を公開しません。Decode Context Parallelism（DCP）では、ランク間で正しく集約するために softmax LSE が必要です。そのため、現時点で FlashMLA は DCP に対応しておらず、vLLM で実行時エラーが発生します。この制約は vLLM リポジトリでも議論されています（issue #27544 を参照）。

MTP

推論サービスのスクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
--speculative-config {"method":"mtp","num_speculative_tokens":1}

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.13
Total input tokens:                      219111
Total generated tokens:                  197345
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2626.63
Peak output token throughput (tok/s):    3940.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5542.96
---------------Time to First Token----------------
Mean TTFT (ms):                          11110.51
Median TTFT (ms):                        10739.31
P99 TTFT (ms):                           21886.92
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          291.48
Median TPOT (ms):                        250.14
P99 TPOT (ms):                           735.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           290.48
Median ITL (ms):                         144.81
P99 ITL (ms):                            4636.00
==================================================

DeepGEMM の無効化：vLLM

推論サービスのスクリプト

export VLLM_USE_DEEP_GEMM=0
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.92
Total input tokens:                      219111
Total generated tokens:                  197222
Request throughput (req/s):              13.35
Output token throughput (tok/s):         2632.38
Peak output token throughput (tok/s):    6010.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5556.92
---------------Time to First Token----------------
Mean TTFT (ms):                          11250.21
Median TTFT (ms):                        10762.25
P99 TTFT (ms):                           20723.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.49
Median TPOT (ms):                        188.99
P99 TPOT (ms):                           667.67
---------------Inter-token Latency----------------
Mean ITL (ms):                           140.98
Median ITL (ms):                         83.88
P99 ITL (ms):                            671.43
==================================================

ツール呼び出し設定の有効化

推論サービスのスクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --tool-call-parser deepseek_v32 --enable-auto-tool-choice

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.16
Total input tokens:                      219111
Total generated tokens:                  197012
Request throughput (req/s):              13.48
Output token throughput (tok/s):         2656.40
Peak output token throughput (tok/s):    6095.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5610.78
---------------Time to First Token----------------
Mean TTFT (ms):                          13648.83
Median TTFT (ms):                        13557.38
P99 TTFT (ms):                           23498.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          280.78
Median TPOT (ms):                        176.29
P99 TPOT (ms):                           677.36
---------------Inter-token Latency----------------
Mean ITL (ms):                           132.99
Median ITL (ms):                         82.69
P99 ITL (ms):                            683.11
==================================================

コンテキスト長の調整

推論サービスのスクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --max-model-len 32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.12
Total input tokens:                      219111
Total generated tokens:                  196938
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2621.48
Peak output token throughput (tok/s):    6293.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5538.11
---------------Time to First Token----------------
Mean TTFT (ms):                          10439.14
Median TTFT (ms):                        10296.60
P99 TTFT (ms):                           23842.17
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          357.68
Median TPOT (ms):                        223.35
P99 TPOT (ms):                           1169.74
---------------Inter-token Latency----------------
Mean ITL (ms):                           154.24
Median ITL (ms):                         78.13
P99 ITL (ms):                            660.95
==================================================

アテンションバックエンド: CUTLASS_MLA

推論サービスのスクリプト

export VLLM_ATTENTION_BACKEND="CUTLASS_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.CUTLASS_MLA is not valid for this configuration. Reason: ['sparse not supported', 'compute capability not supported']

アテンションバックエンド: FLASHMLA

推論サービスのスクリプト

export VLLM_ATTENTION_BACKEND="FLASHMLA"

ValueError: Selected backend AttentionBackendEnum.FLASHMLA is not valid for this configuration. Reason: ['sparse not supported']

アテンションバックエンド: TRITON_MLA

推論サービスのスクリプト

export VLLM_ATTENTION_BACKEND="TRITON_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.TRITON_MLA is not valid for this configuration. Reason: ['sparse not supported']

3. 最適化：SGLang

並列化: TP+DP Attention

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --enable-dp-attention

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  99.46
Total input tokens:                      219111
Total generated tokens:                  197633
Request throughput (req/s):              10.05
Output token throughput (tok/s):         1987.11
Peak output token throughput (tok/s):    8911.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          4190.17
---------------Time to First Token----------------
Mean TTFT (ms):                          13679.11
Median TTFT (ms):                        12663.74
P99 TTFT (ms):                           21665.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          608.90
Median TPOT (ms):                        398.19
P99 TPOT (ms):                           3453.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           230.03
Median ITL (ms):                         59.95
P99 ITL (ms):                            1824.84
==================================================

並列化: TP+DP+DP Attention

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  56.62
Total input tokens:                      219111
Total generated tokens:                  197116
Request throughput (req/s):              17.66
Output token throughput (tok/s):         3481.55
Peak output token throughput (tok/s):    11298.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7351.59
---------------Time to First Token----------------
Mean TTFT (ms):                          7815.00
Median TTFT (ms):                        8024.81
P99 TTFT (ms):                           12928.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.86
Median TPOT (ms):                        107.58
P99 TPOT (ms):                           2096.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           91.68
Median ITL (ms):                         58.87
P99 ITL (ms):                            317.43
==================================================

並列化: TP+DP+DP Attention+EP

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention --ep-size 8

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  57.14
Total input tokens:                      219111
Total generated tokens:                  197614
Request throughput (req/s):              17.50
Output token throughput (tok/s):         3458.68
Peak output token throughput (tok/s):    11757.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7293.61
---------------Time to First Token----------------
Mean TTFT (ms):                          8437.36
Median TTFT (ms):                        8346.50
P99 TTFT (ms):                           15410.07
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          319.46
Median TPOT (ms):                        111.65
P99 TPOT (ms):                           2443.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           94.48
Median ITL (ms):                         56.54
P99 ITL (ms):                            451.92
==================================================

MTP

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--tp-size 8 \
--speculative-algorithm EAGLE --speculative-num-steps 1 --speculative-eagle-topk 1 --speculative-num-draft-tokens 2

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  278.36
Total input tokens:                      219111
Total generated tokens:                  193349
Request throughput (req/s):              3.59
Output token throughput (tok/s):         694.61
Peak output token throughput (tok/s):    974.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          1481.77
---------------Time to First Token----------------
Mean TTFT (ms):                          139046.94
Median TTFT (ms):                        144733.94
P99 TTFT (ms):                           260932.68
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          68.88
Median TPOT (ms):                        63.31
P99 TPOT (ms):                           280.02
---------------Inter-token Latency----------------
Mean ITL (ms):                           115.50
Median ITL (ms):                         48.42
P99 ITL (ms):                            337.68
==================================================

DeepGEMM の無効化

推論サービスのスクリプト

export SGLANG_ENABLE_JIT_DEEPGEMM=0
python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

DeepGEMM を無効にするとサーバーが起動しません。

ツール呼び出し設定の有効化

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.70
Total input tokens:                      219111
Total generated tokens:                  197192
Request throughput (req/s):              20.12
Output token throughput (tok/s):         3967.70
Peak output token throughput (tok/s):    13083.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8376.43
---------------Time to First Token----------------
Mean TTFT (ms):                          6577.70
Median TTFT (ms):                        6815.18
P99 TTFT (ms):                           11936.83
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          250.64
Median TPOT (ms):                        95.20
P99 TPOT (ms):                           1825.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           81.42
Median ITL (ms):                         53.51
P99 ITL (ms):                            269.50
==================================================

コンテキスト長の調整

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  47.60
Total input tokens:                      219111
Total generated tokens:                  197380
Request throughput (req/s):              21.01
Output token throughput (tok/s):         4146.96
Peak output token throughput (tok/s):    12798.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8750.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5615.34
Median TTFT (ms):                        5448.81
P99 TTFT (ms):                           10053.28
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          214.05
Median TPOT (ms):                        87.57
P99 TPOT (ms):                           1553.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           76.04
Median ITL (ms):                         54.16
P99 ITL (ms):                            210.36
==================================================

KV キャッシュのデータ型

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--kv-cache-dtype fp8_e4m3

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.00
Total input tokens:                      219111
Total generated tokens:                  197078
Request throughput (req/s):              20.41
Output token throughput (tok/s):         4022.27
Peak output token throughput (tok/s):    12674.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8494.23
---------------Time to First Token----------------
Mean TTFT (ms):                          5472.04
Median TTFT (ms):                        5289.41
P99 TTFT (ms):                           9731.02
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          213.50
Median TPOT (ms):                        92.04
P99 TPOT (ms):                           1471.85
---------------Inter-token Latency----------------
Mean ITL (ms):                           79.15
Median ITL (ms):                         58.50
P99 ITL (ms):                            100.53
==================================================

アテンションバックエンド: fa3 + fa3

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  46.37
Total input tokens:                      219111
Total generated tokens:                  196786
Request throughput (req/s):              21.56
Output token throughput (tok/s):         4243.46
Peak output token throughput (tok/s):    13860.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8968.32
---------------Time to First Token----------------
Mean TTFT (ms):                          5303.50
Median TTFT (ms):                        5145.47
P99 TTFT (ms):                           9366.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          203.05
Median TPOT (ms):                        85.23
P99 TPOT (ms):                           1399.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           74.03
Median ITL (ms):                         53.86
P99 ITL (ms):                            177.03
==================================================

アテンションバックエンド: flashmla_sparse + flashmla_kv

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend flashmla_sparse \
--nsa-decode-backend flashmla_kv

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  77.68
Total input tokens:                      219111
Total generated tokens:                  197443
Request throughput (req/s):              12.87
Output token throughput (tok/s):         2541.62
Peak output token throughput (tok/s):    8352.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5362.16
---------------Time to First Token----------------
Mean TTFT (ms):                          4811.25
Median TTFT (ms):                        4727.17
P99 TTFT (ms):                           9086.60
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          260.25
Median TPOT (ms):                        128.33
P99 TPOT (ms):                           1625.53
---------------Inter-token Latency----------------
Mean ITL (ms):                           114.47
Median ITL (ms):                         91.44
P99 ITL (ms):                            256.14
==================================================

4. 最適化：TensorRT-LLM

並列化: TP+EP

推論サービスのスクリプト

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  142.99
Total input tokens:                      216405
Total generated tokens:                  195740
Request throughput (req/s):              6.88
Output token throughput (tok/s):         1368.90
Peak output token throughput (tok/s):    4635.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          2882.32
---------------Time to First Token----------------
Mean TTFT (ms):                          24155.45
Median TTFT (ms):                        23945.42
P99 TTFT (ms):                           45683.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          561.24
Median TPOT (ms):                        312.75
P99 TPOT (ms):                           1473.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           248.40
Median ITL (ms):                         142.18
P99 ITL (ms):                            1819.83
==================================================

DeepGEMM の無効化

推論サービスのスクリプト

export TRTLLM_DG_ENABLED=0
trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  134.65
Total input tokens:                      216484
Total generated tokens:                  194509
Request throughput (req/s):              7.31
Output token throughput (tok/s):         1444.56
Peak output token throughput (tok/s):    4661.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          3052.33
---------------Time to First Token----------------
Mean TTFT (ms):                          23229.65
Median TTFT (ms):                        23100.28
P99 TTFT (ms):                           44648.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          541.07
Median TPOT (ms):                        264.04
P99 TPOT (ms):                           1588.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           226.30
Median ITL (ms):                         137.80
P99 ITL (ms):                            1624.47
==================================================

最適化項目の一覧

最適化項目	スループット改善率
並列化	+28.66%
ツール呼び出し設定	+13.94%
コンテキスト長の調整	+4.47%
アテンションバックエンド	+2.49%
KV キャッシュのデータ型	-
MTP	-
DeepGEMM	-
合計（基準設定比）	+56.97%

その他のベンチマークケース

さらに、さまざまなワークロードに対する汎用性を評価するため、最適化済み設定でベンチマークを実施しました。

基準設定の推論スクリプト

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

基準設定のベンチマーク結果

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  13.11
Total input tokens:                      128000
Total generated tokens:                  4000
Request throughput (req/s):              76.30
Output token throughput (tok/s):         305.20
Peak output token throughput (tok/s):    1029.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          10071.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5786.15
Median TTFT (ms):                        4666.02
P99 TTFT (ms):                           12922.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          781.80
Median TPOT (ms):                        687.63
P99 TPOT (ms):                           1637.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           586.79
Median ITL (ms):                         664.73
P99 ITL (ms):                            3545.51
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  96.10
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              5.20
Output token throughput (tok/s):         520.27
Peak output token throughput (tok/s):    4085.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          10925.59
---------------Time to First Token----------------
Mean TTFT (ms):                          45667.57
Median TTFT (ms):                        43997.53
P99 TTFT (ms):                           87384.57
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          354.59
Median TPOT (ms):                        433.59
P99 TPOT (ms):                           452.30
---------------Inter-token Latency----------------
Mean ITL (ms):                           353.26
Median ITL (ms):                         68.59
P99 ITL (ms):                            661.87
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  210.54
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              2.37
Output token throughput (tok/s):         474.96
Peak output token throughput (tok/s):    2769.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          9974.26
---------------Time to First Token----------------
Mean TTFT (ms):                          103386.88
Median TTFT (ms):                        97324.68
P99 TTFT (ms):                           200514.23
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          226.74
Median TPOT (ms):                        246.98
P99 TPOT (ms):                           275.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           228.79
Median ITL (ms):                         49.50
P99 ITL (ms):                            683.63
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  330.61
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.30
Output token throughput (tok/s):         30.25
Peak output token throughput (tok/s):    384.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          9709.27
---------------Time to First Token----------------
Mean TTFT (ms):                          164003.81
Median TTFT (ms):                        164174.93
P99 TTFT (ms):                           325134.01
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          472.52
Median TPOT (ms):                        512.36
P99 TPOT (ms):                           514.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           477.69
Median ITL (ms):                         741.90
P99 ITL (ms):                            949.57
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  96.39
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.04
Output token throughput (tok/s):         2075.01
Peak output token throughput (tok/s):    2598.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3112.52
---------------Time to First Token----------------
Mean TTFT (ms):                          4789.20
Median TTFT (ms):                        4590.83
P99 TTFT (ms):                           10608.88
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          45.72
Median TPOT (ms):                        45.83
P99 TPOT (ms):                           47.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           46.34
Median ITL (ms):                         43.13
P99 ITL (ms):                            44.29
==================================================

最適化後の推論スクリプト

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

最適化後のベンチマーク結果

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  7.13
Total input tokens:                      125952
Total generated tokens:                  3936
Request throughput (req/s):              138.09
Output token throughput (tok/s):         552.34
Peak output token throughput (tok/s):    2526.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          18227.38
---------------Time to First Token----------------
Mean TTFT (ms):                          4441.81
Median TTFT (ms):                        4685.89
P99 TTFT (ms):                           6735.22
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          776.55
Median TPOT (ms):                        714.97
P99 TPOT (ms):                           1659.07
---------------Inter-token Latency----------------
Mean ITL (ms):                           465.93
Median ITL (ms):                         59.97
P99 ITL (ms):                            4564.16
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  37.89
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              13.20
Output token throughput (tok/s):         1319.64
Peak output token throughput (tok/s):    9477.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          27712.54
---------------Time to First Token----------------
Mean TTFT (ms):                          18696.78
Median TTFT (ms):                        18939.89
P99 TTFT (ms):                           32138.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          192.24
Median TPOT (ms):                        189.20
P99 TPOT (ms):                           349.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           189.18
Median ITL (ms):                         55.05
P99 ITL (ms):                            219.74
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  102.21
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              4.89
Output token throughput (tok/s):         978.37
Peak output token throughput (tok/s):    7180.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          20545.67
---------------Time to First Token----------------
Mean TTFT (ms):                          44019.81
Median TTFT (ms):                        40806.24
P99 TTFT (ms):                           90171.38
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          177.95
Median TPOT (ms):                        161.14
P99 TPOT (ms):                           321.10
---------------Inter-token Latency----------------
Mean ITL (ms):                           177.57
Median ITL (ms):                         49.55
P99 ITL (ms):                            224.52
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  160.14
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.62
Output token throughput (tok/s):         62.45
Peak output token throughput (tok/s):    1189.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          20045.18
---------------Time to First Token----------------
Mean TTFT (ms):                          83964.72
Median TTFT (ms):                        88265.70
P99 TTFT (ms):                           157005.30
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          246.26
Median TPOT (ms):                        229.67
P99 TPOT (ms):                           514.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           244.63
Median ITL (ms):                         33.21
P99 ITL (ms):                            898.58
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  80.99
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.23
Output token throughput (tok/s):         2469.32
Peak output token throughput (tok/s):    2800.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3703.98
---------------Time to First Token----------------
Mean TTFT (ms):                          2103.54
Median TTFT (ms):                        2216.52
P99 TTFT (ms):                           3514.77
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          39.45
Median TPOT (ms):                        39.40
P99 TPOT (ms):                           40.17
---------------Inter-token Latency----------------
Mean ITL (ms):                           40.56
Median ITL (ms):                         38.90
P99 ITL (ms):                            43.63
==================================================
