Qwen3.5-9B 延迟优化
结论
Qwen/Qwen3.5-9B 在 NVIDIA H100 80GB HBM3 上的延迟优化推荐配置：
推理服务命令
| vllm serve Qwen/Qwen3.5-9B \
--reasoning-parser=qwen3 \
--max-model-len=32768 \
--speculative-config={"method":"mtp","num_speculative_tokens":1} \
--language-model-only \
--performance-mode=interactivity
|

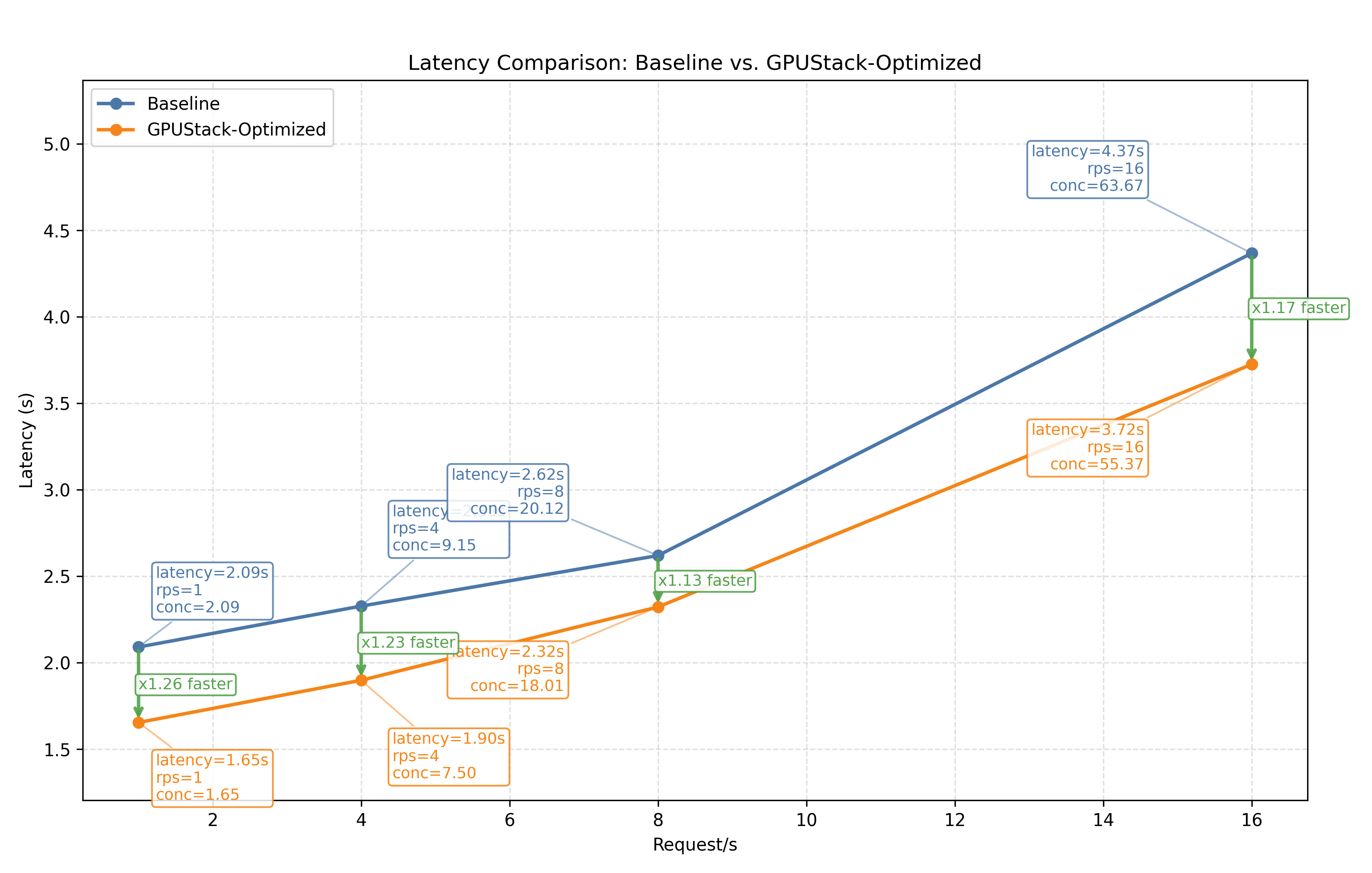

优化前后的基准测试结果对比：
| 基准测试用例 | 基准配置（未做任何优化的 vLLM） | 优化后 |
| 请求速率 1 | Mean latency: 2.09s/req | Mean latency: 1.65s/req (1.26x，更快) |
| 请求速率 4 | Mean latency: 2.33s/req | Mean latency: 1.90s/req (1.23x，更快) |
| 请求速率 8 | Mean latency: 2.62s/req | Mean latency: 2.32s/req (1.13x，更快) |
| 请求速率 16 | Mean latency: 4.37s/req | Mean latency: 3.72s/req (1.17x，更快) |
说明
- 基准测试未覆盖所有可能的优化组合。例如，我们会选择默认配置下表现最好的推理引擎作为后续调优的起点。这种剪枝方式得到的是局部最优解，未必是全局最优解。
- 其他优化方法取决于具体使用场景，包括最大批大小、调度配置、扩展 KV cache、CUDA graph 等。本文结论可作为进一步针对性优化的起点。
- 测试基于特定的硬件和软件环境。推理引擎的改进可能带来新的结论。
- 量化可能影响准确率，但对于大多数模型，FP8 量化的准确率下降可控制在 1% 以内。详情参见评估结果。因此，强烈建议在低延迟推理服务场景中使用 FP8 量化。
- 推测解码能够显著降低低并发请求的延迟，但加速效果取决于基准测试数据集的数据分布和草稿模型的选择。例如，本测试所选的草稿模型使用英文数据训练，在其他语言上的表现可能不够理想。
如有遗漏或需要根据最新变化更新的内容，请告诉我们。
实验环境
模型
Qwen/Qwen3.5-9B
硬件
NVIDIA H100 80GB HBM3
引擎版本
- vLLM v0.17.1
- SGLang v0.5.9
基准测试方法
本项目使用 GPUStack 的一键基准测试功能评估推理服务工作负载。本文中的基准测试均通过该流程执行。
GPUStack 的基准测试通过封装项目 benchmark-runner，基于 guidellm 实现。
对于以下基准测试配置，GPUStack 负责模型部署、基准测试任务提交和结果收集。
基准测试配置
ShareGPT 8RPS
| dataset_name: ShareGPT
request_rate: 8
total_requests: 1000
|
ShareGPT 1RPS
| dataset_name: ShareGPT
request_rate: 1
total_requests: 1000
|
ShareGPT 4RPS
| dataset_name: ShareGPT
request_rate: 4
total_requests: 1000
|
ShareGPT 16RPS
| dataset_name: ShareGPT
request_rate: 16
total_requests: 1000
|
开源工具替代方案
如果不使用 GPUStack，可以直接执行 guidellm benchmark 命令替代 GPUStack 基准测试流程。
对于包含 dataset_name: ShareGPT 的测试配置：
| guidellm benchmark \
--target ${target} \
--profile constant \
--rate ${request_rate} \
--max-requests ${total_requests} \
--processor ${model_path} \
--data ./ShareGPT_V3_unfiltered_cleaned_split.json
|
实验结果
选择推理引擎
vLLM
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.18
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2197.17
Peak output token throughput (tok/s): 2885041.51
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4867.84
----------------------Latency---------------------
Mean Latency(s): 2.62
Median Latency(s): 2.29
P95 Latency(s): 6.81
P99 Latency(s): 7.75
---------------Time to First Token----------------
Mean TTFT (ms): 41.12
Median TTFT (ms): 33.92
P95 TTFT (ms): 72.24
P99 TTFT (ms): 141.44
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.34
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.18
P99 TPOT (ms): 10.07
---------------Inter-token Latency----------------
Mean ITL (ms): 1.19
Median ITL (ms): 0.00
P95 ITL (ms): 9.08
P99 ITL (ms): 10.04
==================================================
|
SGLang
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--context-length=32768
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 96
Benchmark duration (s): 131.60
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.60
Output token throughput (tok/s): 2145.85
Peak output token throughput (tok/s): 33380.30
Peak concurrent requests: 96.00
Total Token throughput (tok/s): 4754.13
----------------------Latency---------------------
Mean Latency(s): 8.13
Median Latency(s): 6.94
P95 Latency(s): 20.20
P99 Latency(s): 26.21
---------------Time to First Token----------------
Mean TTFT (ms): 98.72
Median TTFT (ms): 51.48
P95 TTFT (ms): 212.72
P99 TTFT (ms): 460.47
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 28.88
Median TPOT (ms): 28.26
P95 TPOT (ms): 43.34
P99 TPOT (ms): 51.52
---------------Inter-token Latency----------------
Mean ITL (ms): 28.63
Median ITL (ms): 27.88
P95 ITL (ms): 43.23
P99 ITL (ms): 50.55
==================================================
|
- 汇总：
vLLM Mean Latency = 2.62s, SGLang Mean Latency = 8.13s. vLLM 性能更优，差值为 5.51s (速度提升至 3.10x). TTFT = 41.12 ms 与 98.72 ms, 减少 57.60 ms (速度提升至 2.40x); TPOT = 1.34 ms 与 28.88 ms, 减少 27.54 ms (速度提升至 21.62x).
前缀缓存
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--enable-prefix-caching
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 32
Benchmark duration (s): 130.23
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2212.47
Peak output token throughput (tok/s): 1443445.16
Peak concurrent requests: 32.00
Total Token throughput (tok/s): 4901.75
----------------------Latency---------------------
Mean Latency(s): 2.69
Median Latency(s): 2.36
P95 Latency(s): 6.95
P99 Latency(s): 7.94
---------------Time to First Token----------------
Mean TTFT (ms): 46.19
Median TTFT (ms): 34.75
P95 TTFT (ms): 90.30
P99 TTFT (ms): 233.30
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.38
Median TPOT (ms): 0.12
P95 TPOT (ms): 9.49
P99 TPOT (ms): 10.50
---------------Inter-token Latency----------------
Mean ITL (ms): 1.22
Median ITL (ms): 0.00
P95 ITL (ms): 9.35
P99 ITL (ms): 10.40
==================================================
|
最大批处理 Token 数
16k
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--max-num-batched-tokens=16384
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.20
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2220.17
Peak output token throughput (tok/s): 2763536.75
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4918.81
----------------------Latency---------------------
Mean Latency(s): 2.64
Median Latency(s): 2.30
P95 Latency(s): 6.87
P99 Latency(s): 7.79
---------------Time to First Token----------------
Mean TTFT (ms): 42.05
Median TTFT (ms): 34.13
P95 TTFT (ms): 76.02
P99 TTFT (ms): 190.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.26
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.19
P99 TPOT (ms): 10.11
---------------Inter-token Latency----------------
Mean ITL (ms): 1.11
Median ITL (ms): 0.00
P95 ITL (ms): 9.13
P99 ITL (ms): 10.04
==================================================
|
32k
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--max-num-batched-tokens=32768
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.20
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2196.67
Peak output token throughput (tok/s): 1167858.46
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4866.73
----------------------Latency---------------------
Mean Latency(s): 2.64
Median Latency(s): 2.31
P95 Latency(s): 6.88
P99 Latency(s): 7.81
---------------Time to First Token----------------
Mean TTFT (ms): 41.88
Median TTFT (ms): 34.03
P95 TTFT (ms): 76.91
P99 TTFT (ms): 164.85
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.38
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.34
P99 TPOT (ms): 10.14
---------------Inter-token Latency----------------
Mean ITL (ms): 1.23
Median ITL (ms): 0.00
P95 ITL (ms): 9.20
P99 ITL (ms): 10.09
==================================================
|
- 汇总：
16k Mean Latency = 2.64s, 32k Mean Latency = 2.64s. 16k 性能更优，差值为 0.00s (速度提升至 1.00x). TTFT = 42.05 ms 与 41.88 ms, 增加 0.17 ms (耗时增加至 1.00x); TPOT = 1.26 ms 与 1.38 ms, 减少 0.12 ms (速度提升至 1.10x).
最大序列数
序列数 128
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=128
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.18
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2213.28
Peak output token throughput (tok/s): 3033763.06
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4903.53
----------------------Latency---------------------
Mean Latency(s): 2.66
Median Latency(s): 2.32
P95 Latency(s): 6.91
P99 Latency(s): 7.82
---------------Time to First Token----------------
Mean TTFT (ms): 44.11
Median TTFT (ms): 35.02
P95 TTFT (ms): 75.65
P99 TTFT (ms): 197.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.33
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.53
P99 TPOT (ms): 10.28
---------------Inter-token Latency----------------
Mean ITL (ms): 1.17
Median ITL (ms): 0.00
P95 ITL (ms): 9.48
P99 ITL (ms): 10.23
==================================================
|
序列数 256
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=256
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.18
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2196.96
Peak output token throughput (tok/s): 1994998.46
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4867.37
----------------------Latency---------------------
Mean Latency(s): 2.64
Median Latency(s): 2.30
P95 Latency(s): 6.82
P99 Latency(s): 7.79
---------------Time to First Token----------------
Mean TTFT (ms): 42.97
Median TTFT (ms): 34.30
P95 TTFT (ms): 77.05
P99 TTFT (ms): 187.56
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.32
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.23
P99 TPOT (ms): 10.28
---------------Inter-token Latency----------------
Mean ITL (ms): 1.17
Median ITL (ms): 0.00
P95 ITL (ms): 9.16
P99 ITL (ms): 10.16
==================================================
|
- 汇总：
Seqs 256 Mean Latency = 2.64s, Seqs 128 Mean Latency = 2.66s. Seqs 256 性能更优，差值为 0.02s (速度提升至 1.01x). TTFT = 42.97 ms 与 44.11 ms, 减少 1.13 ms (速度提升至 1.03x); TPOT = 1.32 ms 与 1.33 ms, 减少 0.01 ms (速度提升至 1.01x).
推测解码
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--max-model-len=32768
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 28
Benchmark duration (s): 129.03
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.75
Output token throughput (tok/s): 2224.24
Peak output token throughput (tok/s): 9620127.05
Peak concurrent requests: 28.00
Total Token throughput (tok/s): 4927.83
----------------------Latency---------------------
Mean Latency(s): 2.39
Median Latency(s): 2.08
P95 Latency(s): 6.12
P99 Latency(s): 7.17
---------------Time to First Token----------------
Mean TTFT (ms): 81.50
Median TTFT (ms): 55.93
P95 TTFT (ms): 96.41
P99 TTFT (ms): 788.19
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.29
Median TPOT (ms): 0.18
P95 TPOT (ms): 8.45
P99 TPOT (ms): 9.48
---------------Inter-token Latency----------------
Mean ITL (ms): 1.01
Median ITL (ms): 0.00
P95 ITL (ms): 8.31
P99 ITL (ms): 9.42
==================================================
|
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--performance-mode=interactivity
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 28
Benchmark duration (s): 129.07
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.75
Output token throughput (tok/s): 2214.80
Peak output token throughput (tok/s): 1904162.55
Peak concurrent requests: 28.00
Total Token throughput (tok/s): 4906.90
----------------------Latency---------------------
Mean Latency(s): 2.38
Median Latency(s): 2.09
P95 Latency(s): 6.09
P99 Latency(s): 7.20
---------------Time to First Token----------------
Mean TTFT (ms): 82.37
Median TTFT (ms): 55.71
P95 TTFT (ms): 96.16
P99 TTFT (ms): 960.28
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.42
Median TPOT (ms): 0.18
P95 TPOT (ms): 8.54
P99 TPOT (ms): 9.65
---------------Inter-token Latency----------------
Mean ITL (ms): 1.13
Median ITL (ms): 0.00
P95 ITL (ms): 8.39
P99 ITL (ms): 9.08
==================================================
|
- 测试配置：
ShareGPT 8RPS - 后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--language-model-only
--performance-mode=interactivity
|
基准测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 27
Benchmark duration (s): 128.98
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.75
Output token throughput (tok/s): 2214.46
Peak output token throughput (tok/s): 4861500.66
Peak concurrent requests: 27.00
Total Token throughput (tok/s): 4906.15
----------------------Latency---------------------
Mean Latency(s): 2.32
Median Latency(s): 2.02
P95 Latency(s): 5.99
P99 Latency(s): 6.89
---------------Time to First Token----------------
Mean TTFT (ms): 80.63
Median TTFT (ms): 54.04
P95 TTFT (ms): 96.82
P99 TTFT (ms): 933.41
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.31
Median TPOT (ms): 0.17
P95 TPOT (ms): 8.19
P99 TPOT (ms): 9.47
---------------Inter-token Latency----------------
Mean ITL (ms): 1.02
Median ITL (ms): 0.00
P95 ITL (ms): 8.03
P99 ITL (ms): 8.91
==================================================
|
优化选项汇总
| 基准测试用例 | 组别 | 优化后 | 基准配置 | 对比 |
| ShareGPT 8RPS (r=8) | 选择推理引擎 | 2.62s | 2.62s | (1.00x，更快) |
| ShareGPT 8RPS (r=8) | 前缀缓存 | 2.69s | 2.62s | (1.03x，更慢) |
| ShareGPT 8RPS (r=8) | 最大批处理 Token 数 | 2.64s | 2.62s | (1.01x，更慢) |
| ShareGPT 8RPS (r=8) | 最大序列数 | 2.64s | 2.62s | (1.01x，更慢) |
| ShareGPT 8RPS (r=8) | 推测解码 | 2.39s | 2.62s | (1.09x，更快) |
| ShareGPT 8RPS (r=8) | 推测解码 && 性能模式 | 2.38s | 2.62s | (1.10x，更快) |
| ShareGPT 8RPS (r=8) | 推测解码 && 性能模式 && 语言模型 | 2.32s | 2.62s | (1.13x，更快) |
其他基准测试用例
请求速率 1
- 基准配置的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
|
基准配置的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 6
Benchmark duration (s): 1001.23
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 1.00
Output token throughput (tok/s): 281.69
Peak output token throughput (tok/s): 211793.17
Peak concurrent requests: 6.00
Total Token throughput (tok/s): 624.09
----------------------Latency---------------------
Mean Latency(s): 2.09
Median Latency(s): 1.85
P95 Latency(s): 5.42
P99 Latency(s): 6.27
---------------Time to First Token----------------
Mean TTFT (ms): 37.03
Median TTFT (ms): 31.51
P95 TTFT (ms): 63.17
P99 TTFT (ms): 95.35
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 0.94
Median TPOT (ms): 0.10
P95 TPOT (ms): 7.38
P99 TPOT (ms): 7.51
---------------Inter-token Latency----------------
Mean ITL (ms): 0.81
Median ITL (ms): 0.00
P95 ITL (ms): 7.34
P99 ITL (ms): 7.47
==================================================
|
- 优化后的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--language-model-only
--performance-mode=interactivity
|
优化后的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 5
Benchmark duration (s): 1000.35
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 1.00
Output token throughput (tok/s): 281.69
Peak output token throughput (tok/s): 271386.26
Peak concurrent requests: 5.00
Total Token throughput (tok/s): 624.08
----------------------Latency---------------------
Mean Latency(s): 1.65
Median Latency(s): 1.45
P95 Latency(s): 4.28
P99 Latency(s): 4.98
---------------Time to First Token----------------
Mean TTFT (ms): 54.58
Median TTFT (ms): 50.45
P95 TTFT (ms): 75.37
P99 TTFT (ms): 123.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 0.91
Median TPOT (ms): 0.15
P95 TPOT (ms): 5.90
P99 TPOT (ms): 6.22
---------------Inter-token Latency----------------
Mean ITL (ms): 0.72
Median ITL (ms): 0.00
P95 ITL (ms): 5.75
P99 ITL (ms): 6.14
==================================================
|
请求速率 4
- 基准配置的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
|
基准配置的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 15
Benchmark duration (s): 254.36
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 3.93
Output token throughput (tok/s): 1126.78
Peak output token throughput (tok/s): 800262.91
Peak concurrent requests: 15.00
Total Token throughput (tok/s): 2496.39
----------------------Latency---------------------
Mean Latency(s): 2.33
Median Latency(s): 2.06
P95 Latency(s): 5.96
P99 Latency(s): 6.94
---------------Time to First Token----------------
Mean TTFT (ms): 38.09
Median TTFT (ms): 31.67
P95 TTFT (ms): 67.05
P99 TTFT (ms): 109.44
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.15
Median TPOT (ms): 0.10
P95 TPOT (ms): 8.25
P99 TPOT (ms): 8.73
---------------Inter-token Latency----------------
Mean ITL (ms): 1.02
Median ITL (ms): 0.00
P95 ITL (ms): 8.19
P99 ITL (ms): 8.67
==================================================
|
- 优化后的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--language-model-only
--performance-mode=interactivity
|
优化后的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 13
Benchmark duration (s): 253.27
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 3.95
Output token throughput (tok/s): 1126.67
Peak output token throughput (tok/s): 996666.30
Peak concurrent requests: 13.00
Total Token throughput (tok/s): 2496.15
----------------------Latency---------------------
Mean Latency(s): 1.90
Median Latency(s): 1.66
P95 Latency(s): 4.91
P99 Latency(s): 5.82
---------------Time to First Token----------------
Mean TTFT (ms): 57.94
Median TTFT (ms): 52.57
P95 TTFT (ms): 77.15
P99 TTFT (ms): 112.48
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 0.97
Median TPOT (ms): 0.16
P95 TPOT (ms): 6.79
P99 TPOT (ms): 7.25
---------------Inter-token Latency----------------
Mean ITL (ms): 0.76
Median ITL (ms): 0.00
P95 ITL (ms): 6.64
P99 ITL (ms): 7.11
==================================================
|
请求速率 8
- 基准配置的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
|
基准配置的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 31
Benchmark duration (s): 130.18
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.68
Output token throughput (tok/s): 2197.17
Peak output token throughput (tok/s): 2885041.51
Peak concurrent requests: 31.00
Total Token throughput (tok/s): 4867.84
----------------------Latency---------------------
Mean Latency(s): 2.62
Median Latency(s): 2.29
P95 Latency(s): 6.81
P99 Latency(s): 7.75
---------------Time to First Token----------------
Mean TTFT (ms): 41.12
Median TTFT (ms): 33.92
P95 TTFT (ms): 72.24
P99 TTFT (ms): 141.44
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.34
Median TPOT (ms): 0.11
P95 TPOT (ms): 9.18
P99 TPOT (ms): 10.07
---------------Inter-token Latency----------------
Mean ITL (ms): 1.19
Median ITL (ms): 0.00
P95 ITL (ms): 9.08
P99 ITL (ms): 10.04
==================================================
|
- 优化后的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--language-model-only
--performance-mode=interactivity
|
优化后的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 27
Benchmark duration (s): 128.98
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 7.75
Output token throughput (tok/s): 2214.46
Peak output token throughput (tok/s): 4861500.66
Peak concurrent requests: 27.00
Total Token throughput (tok/s): 4906.15
----------------------Latency---------------------
Mean Latency(s): 2.32
Median Latency(s): 2.02
P95 Latency(s): 5.99
P99 Latency(s): 6.89
---------------Time to First Token----------------
Mean TTFT (ms): 80.63
Median TTFT (ms): 54.04
P95 TTFT (ms): 96.82
P99 TTFT (ms): 933.41
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.31
Median TPOT (ms): 0.17
P95 TPOT (ms): 8.19
P99 TPOT (ms): 9.47
---------------Inter-token Latency----------------
Mean ITL (ms): 1.02
Median ITL (ms): 0.00
P95 ITL (ms): 8.03
P99 ITL (ms): 8.91
==================================================
|
请求速率 16
- 基准配置的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
|
基准配置的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 97
Benchmark duration (s): 68.59
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 14.58
Output token throughput (tok/s): 4119.85
Peak output token throughput (tok/s): 4297231.71
Peak concurrent requests: 97.00
Total Token throughput (tok/s): 9127.56
----------------------Latency---------------------
Mean Latency(s): 4.37
Median Latency(s): 3.74
P95 Latency(s): 10.93
P99 Latency(s): 14.05
---------------Time to First Token----------------
Mean TTFT (ms): 63.36
Median TTFT (ms): 52.12
P95 TTFT (ms): 111.22
P99 TTFT (ms): 283.00
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 2.07
Median TPOT (ms): 0.17
P95 TPOT (ms): 16.46
P99 TPOT (ms): 18.09
---------------Inter-token Latency----------------
Mean ITL (ms): 1.85
Median ITL (ms): 0.00
P95 ITL (ms): 16.34
P99 ITL (ms): 17.94
==================================================
|
- 优化后的后端参数：
| --reasoning-parser=qwen3
--max-model-len=32768
--speculative-config={"method":"mtp","num_speculative_tokens":1}
--language-model-only
--performance-mode=interactivity
|
优化后的测试结果
| ============ Serving Benchmark Result ============
Successful requests: 1000
Maximum request concurrency: 77
Benchmark duration (s): 67.27
Total input tokens: 342058
Total generated tokens: 281412
Request throughput (req/s): 14.86
Output token throughput (tok/s): 4191.07
Peak output token throughput (tok/s): 3207595.57
Peak concurrent requests: 77.00
Total Token throughput (tok/s): 9285.35
----------------------Latency---------------------
Mean Latency(s): 3.72
Median Latency(s): 3.31
P95 Latency(s): 9.44
P99 Latency(s): 11.45
---------------Time to First Token----------------
Mean TTFT (ms): 81.88
Median TTFT (ms): 66.01
P95 TTFT (ms): 149.68
P99 TTFT (ms): 375.11
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms): 1.92
Median TPOT (ms): 0.22
P95 TPOT (ms): 13.69
P99 TPOT (ms): 15.01
---------------Inter-token Latency----------------
Mean ITL (ms): 1.63
Median ITL (ms): 0.00
P95 ITL (ms): 13.50
P99 ITL (ms): 14.78
==================================================
|
