NVIDIA A100 GPUs 上的 Qwen3-235B-A22B 吞吐量优化

结论

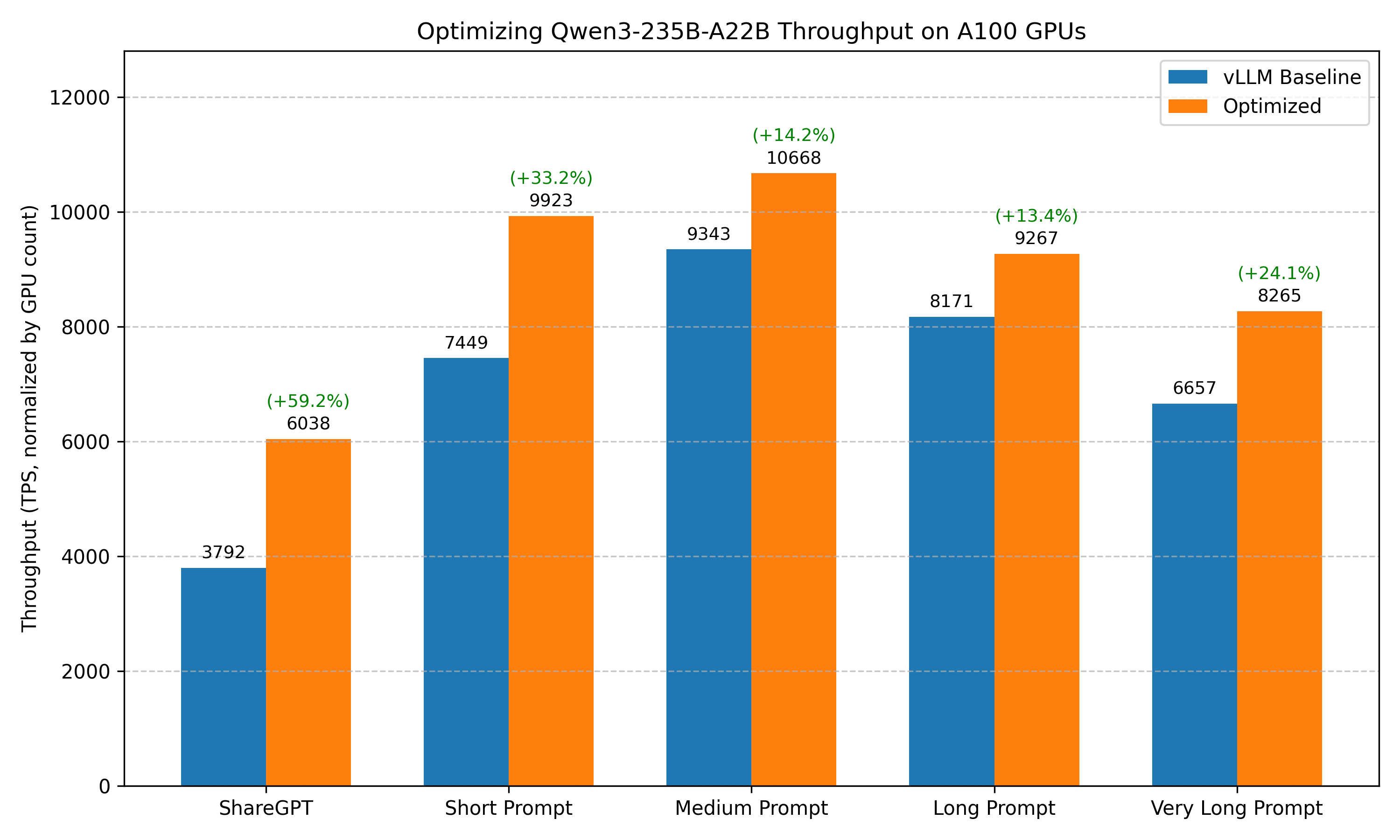

qwen3-235b-a22b-a100

Qwen3-235B-A22B-Instruct-2507 在 A100 GPUs 上的吞吐量优化推荐配置：

推理服务命令
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 4

优化前后的基准测试结果对比：

基准测试用例 基准配置（未做任何优化的 vLLM） 优化后
ShareGPT Total TPS: 3792.50
Mean TPOT(ms): 123.36		 Total TPS: 3019.19x2 (+59.2%)
Mean TPOT(ms): 150.72
短提示词 Total TPS: 7449.43
Mean TPOT(ms): 155.16		 Total TPS: 4961.66x2 (+33.2%)
Mean TPOT(ms): 265.87
中等长度提示词 Total TPS: 9342.67
Mean TPOT(ms): 190.79		 Total TPS: 5333.91x2 (+14.2%)
Mean TPOT(ms): 342.39
长提示词 Total TPS: 8170.72
Mean TPOT(ms): 205.64		 Total TPS: 4633.41x2 (+13.4%)
Mean TPOT(ms): 347.13
超长提示词 Total TPS: 6657.49
Mean TPOT(ms): 298.86		 Total TPS: 4132.51x2 (+24.1%)
Mean TPOT(ms): 481.71

说明

  1. 基准测试未覆盖所有可能的优化组合。例如，我们会选择默认配置下表现最好的推理引擎作为后续调优的起点。这种剪枝方式得到的是局部最优解，未必是全局最优解。
  2. 其他优化方法取决于具体使用场景，包括最大批大小、调度配置、扩展 KV cache、CUDA graph、Torch Compile 等。本文结论可作为进一步针对性优化的起点。
  3. 测试基于特定的硬件和软件环境。推理引擎的改进可能带来新的结论。
  4. 量化可能影响准确率，但对于大多数模型，FP8 量化的准确率下降可控制在 1% 以内。详情参见评估结果。因此，强烈建议在高吞吐量推理服务场景中使用 FP8 量化。

如有遗漏或需要根据最新变化更新的内容，请告诉我们。

优化目标

在高并发请求场景下实现高吞吐量。

实验环境

模型

Qwen3-235B-A22B-Instruct-2507

硬件

单节点配备 8 × NVIDIA A100 SXM 80GB GPU。

引擎版本

  • vLLM: v0.11.0
  • SGLang: v0.5.5.post1

基准测试数据集

  1. ShareGPT
  2. 不同序列长度的随机数据集：
    • 超长提示词：32000 输入 tokens，100 输出 tokens
    • 长提示词：4000 输入 tokens，200 输出 tokens
    • 中等长度提示词：2000 输入 tokens，100 输出 tokens
    • 短提示词：128 输入 tokens，4 输出 tokens

基准测试脚本

使用 vLLM bench CLI 工具对模型性能进行基准测试。运行基准测试的命令如下：

1
2
3
4
5
6
7
8
# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model Qwen/Qwen3-235B-A22B-Instruct-2507 --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 1000

# Benchmark on random dataset (fixed seed for reproducibility)
vllm bench serve --model Qwen/Qwen3-235B-A22B-Instruct-2507 --backend openai-chat --endpoint /v1/chat/completions --dataset-name random --random-input-len 4000 --random-output-len 200 --num-prompts 500 --seed 42

实验结果

1. 选择推理引擎

vLLM

推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507 -tp 8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  109.00
Total input tokens:                      217393
Total generated tokens:                  196004
Request throughput (req/s):              9.17
Output token throughput (tok/s):         1798.14
Peak output token throughput (tok/s):    3297.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3792.50
---------------Time to First Token----------------
Mean TTFT (ms):                          38065.91
Median TTFT (ms):                        37597.63
P99 TTFT (ms):                           77082.58
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          123.36
Median TPOT (ms):                        103.68
P99 TPOT (ms):                           448.36
---------------Inter-token Latency----------------
Mean ITL (ms):                           100.76
Median ITL (ms):                         86.83
P99 ITL (ms):                            185.41
==================================================

SGLang

推理服务脚本
1
python3 -m sglang.launch_server --model-path Qwen/Qwen3-235B-A22B-Instruct-2507 --tp-size 8
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  89.35
Total input tokens:                      217393
Total generated tokens:                  196763
Request throughput (req/s):              11.19
Output token throughput (tok/s):         2202.21
Peak output token throughput (tok/s):    4926.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          4635.31
---------------Time to First Token----------------
Mean TTFT (ms):                          21130.67
Median TTFT (ms):                        15483.85
P99 TTFT (ms):                           51960.77
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          235.10
Median TPOT (ms):                        163.74
P99 TPOT (ms):                           1171.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           136.35
Median ITL (ms):                         86.55
P99 ITL (ms):                            500.15
==================================================

结果：SGLang(4635.31 tok/s) > vLLM (3792.50 tok/s)

2. vLLM 中的 量化

SGLang 无法在 A100 GPU 上运行 FP8 量化模型。vLLM 通过 Marlin 内核支持在 A100 GPU 上以 w8a16 量化方式运行。

vLLM FP8

推理服务脚本
1
2
# TP8 only is not compatible for the model weight. Use EP as well.
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 8 --enable-expert-parallel
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  110.68
Total input tokens:                      217393
Total generated tokens:                  196648
Request throughput (req/s):              9.04
Output token throughput (tok/s):         1776.73
Peak output token throughput (tok/s):    3106.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3740.89
---------------Time to First Token----------------
Mean TTFT (ms):                          37366.87
Median TTFT (ms):                        35525.98
P99 TTFT (ms):                           78616.18
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          115.74
Median TPOT (ms):                        109.21
P99 TPOT (ms):                           228.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           101.28
Median ITL (ms):                         91.72
P99 ITL (ms):                            235.47
==================================================

3. vLLM 中的 并行策略

TP4

推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 4
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  136.64
Total input tokens:                      217393
Total generated tokens:                  195140
Request throughput (req/s):              7.32
Output token throughput (tok/s):         1428.16
Peak output token throughput (tok/s):    2852.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3019.19
---------------Time to First Token----------------
Mean TTFT (ms):                          45879.29
Median TTFT (ms):                        43216.75
P99 TTFT (ms):                           99903.30
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          150.72
Median TPOT (ms):                        143.39
P99 TPOT (ms):                           297.17
---------------Inter-token Latency----------------
Mean ITL (ms):                           131.17
Median ITL (ms):                         119.69
P99 ITL (ms):                            311.46
==================================================

TP4 EP4

推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 4 --enable-expert-parallel
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  146.74
Total input tokens:                      217393
Total generated tokens:                  195590
Request throughput (req/s):              6.81
Output token throughput (tok/s):         1332.94
Peak output token throughput (tok/s):    2501.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          2814.47
---------------Time to First Token----------------
Mean TTFT (ms):                          48930.06
Median TTFT (ms):                        45498.27
P99 TTFT (ms):                           106740.39
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          161.49
Median TPOT (ms):                        154.84
P99 TPOT (ms):                           329.32
---------------Inter-token Latency----------------
Mean ITL (ms):                           140.35
Median ITL (ms):                         128.38
P99 ITL (ms):                            340.60
==================================================

4. vLLM 中的 最大批处理 Token 数

推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 4 --max-num-batched-tokens 4096
基准测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
# --max-num-batched-tokens 4096
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  136.64
Total input tokens:                      217393
Total generated tokens:                  195953
Request throughput (req/s):              7.32
Output token throughput (tok/s):         1434.07
Peak output token throughput (tok/s):    2784.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3025.05
---------------Time to First Token----------------
Mean TTFT (ms):                          45389.84
Median TTFT (ms):                        41651.71
P99 TTFT (ms):                           98975.37
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          155.37
Median TPOT (ms):                        142.48
P99 TPOT (ms):                           509.56
---------------Inter-token Latency----------------
Mean ITL (ms):                           131.19
Median ITL (ms):                         114.03
P99 ITL (ms):                            395.26
==================================================

# --max-num-batched-tokens 8192
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  137.59
Total input tokens:                      217393
Total generated tokens:                  195781
Request throughput (req/s):              7.27
Output token throughput (tok/s):         1422.97
Peak output token throughput (tok/s):    2724.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3003.01
---------------Time to First Token----------------
Mean TTFT (ms):                          45405.05
Median TTFT (ms):                        41603.31
P99 TTFT (ms):                           99900.26
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          157.10
Median TPOT (ms):                        143.37
P99 TPOT (ms):                           561.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           132.24
Median ITL (ms):                         120.38
P99 ITL (ms):                            306.32
==================================================

优化选项汇总

优化选项 吞吐量提升
引擎选择 +22.2%
量化 -
并行策略 +59.2%
注意力后端 -
最大批处理 Token 数 -

其他基准测试用例

我们进一步对优化后的配置进行了基准测试，评估其在不同工作负载下的泛化表现。

基准配置的推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507 -tp 8
基准配置的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
# random 32K input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  481.89
Total input tokens:                      3200000
Total generated tokens:                  8191
Request throughput (req/s):              0.21
Output token throughput (tok/s):         17.00
Peak output token throughput (tok/s):    140.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          6657.49
---------------Time to First Token----------------
Mean TTFT (ms):                          240229.05
Median TTFT (ms):                        240137.10
P99 TTFT (ms):                           475251.39
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          298.86
Median TPOT (ms):                        307.94
P99 TPOT (ms):                           311.82
---------------Inter-token Latency----------------
Mean ITL (ms):                           295.13
Median ITL (ms):                         303.36
P99 ITL (ms):                            370.10
==================================================

# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  255.70
Total input tokens:                      1997942
Total generated tokens:                  91352
Request throughput (req/s):              1.96
Output token throughput (tok/s):         357.26
Peak output token throughput (tok/s):    1403.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          8170.72
---------------Time to First Token----------------
Mean TTFT (ms):                          122190.64
Median TTFT (ms):                        121615.01
P99 TTFT (ms):                           244882.42
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          205.64
Median TPOT (ms):                        220.33
P99 TPOT (ms):                           237.80
---------------Inter-token Latency----------------
Mean ITL (ms):                           204.69
Median ITL (ms):                         239.57
P99 ITL (ms):                            246.21
==================================================

# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  112.15
Total input tokens:                      998175
Total generated tokens:                  49632
Request throughput (req/s):              4.46
Output token throughput (tok/s):         442.54
Peak output token throughput (tok/s):    1691.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          9342.67
---------------Time to First Token----------------
Mean TTFT (ms):                          54722.50
Median TTFT (ms):                        54532.60
P99 TTFT (ms):                           106756.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          190.79
Median TPOT (ms):                        208.61
P99 TPOT (ms):                           209.09
---------------Inter-token Latency----------------
Mean ITL (ms):                           189.23
Median ITL (ms):                         208.52
P99 ITL (ms):                            211.58
==================================================

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  17.68
Total input tokens:                      127698
Total generated tokens:                  4000
Request throughput (req/s):              56.56
Output token throughput (tok/s):         226.26
Peak output token throughput (tok/s):    948.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7449.43
---------------Time to First Token----------------
Mean TTFT (ms):                          12767.63
Median TTFT (ms):                        12409.68
P99 TTFT (ms):                           17339.37
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          155.16
Median TPOT (ms):                        158.22
P99 TPOT (ms):                           168.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           116.37
Median ITL (ms):                         157.64
P99 ITL (ms):                            179.04
==================================================
优化后的推理服务脚本
1
vllm serve Qwen/Qwen3-235B-A22B-Instruct-2507-FP8 -tp 4
优化后的测试结果
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
# random 32K input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  776.36
Total input tokens:                      3200000
Total generated tokens:                  8300
Request throughput (req/s):              0.13
Output token throughput (tok/s):         10.69
Peak output token throughput (tok/s):    152.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          4132.51
---------------Time to First Token----------------
Mean TTFT (ms):                          387908.55
Median TTFT (ms):                        387968.52
P99 TTFT (ms):                           766523.82
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          481.71
Median TPOT (ms):                        496.29
P99 TPOT (ms):                           513.27
---------------Inter-token Latency----------------
Mean ITL (ms):                           476.10
Median ITL (ms):                         490.85
P99 ITL (ms):                            612.03
==================================================

# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  450.71
Total input tokens:                      1997942
Total generated tokens:                  90389
Request throughput (req/s):              1.11
Output token throughput (tok/s):         200.55
Peak output token throughput (tok/s):    1066.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          4633.41
---------------Time to First Token----------------
Mean TTFT (ms):                          216485.01
Median TTFT (ms):                        215365.76
P99 TTFT (ms):                           436587.02
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          347.13
Median TPOT (ms):                        371.93
P99 TPOT (ms):                           412.29
---------------Inter-token Latency----------------
Mean ITL (ms):                           344.46
Median ITL (ms):                         425.81
P99 ITL (ms):                            436.76
==================================================

# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  196.42
Total input tokens:                      998175
Total generated tokens:                  49495
Request throughput (req/s):              2.55
Output token throughput (tok/s):         251.99
Peak output token throughput (tok/s):    1116.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          5333.91
---------------Time to First Token----------------
Mean TTFT (ms):                          95261.76
Median TTFT (ms):                        94982.78
P99 TTFT (ms):                           189238.63
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          342.39
Median TPOT (ms):                        376.64
P99 TPOT (ms):                           377.99
---------------Inter-token Latency----------------
Mean ITL (ms):                           339.59
Median ITL (ms):                         376.62
P99 ITL (ms):                            380.69
==================================================

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  26.54
Total input tokens:                      127698
Total generated tokens:                  4000
Request throughput (req/s):              37.67
Output token throughput (tok/s):         150.70
Peak output token throughput (tok/s):    311.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          4961.66
---------------Time to First Token----------------
Mean TTFT (ms):                          17260.17
Median TTFT (ms):                        17240.71
P99 TTFT (ms):                           26154.32
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          265.87
Median TPOT (ms):                        272.95
P99 TPOT (ms):                           278.77
---------------Inter-token Latency----------------
Mean ITL (ms):                           199.40
Median ITL (ms):                         272.50
P99 ITL (ms):                            288.23
==================================================
