H200 üzerinde GLM-5.2 işlem hacmi optimizasyonu

Sonuç

İşlem hacmi optimizasyonu sonucu

NVIDIA H200x8 üzerinde zai-org/GLM-5.2-FP8 işlem hacmini optimize etmek için önerilen yapılandırma:

Model sunum komutu
1
2
3
4
5
6
7
8
9
python3 -m sglang.launch_server \
    --model-path zai-org/GLM-5.2-FP8 \
    --tp-size=8 \
    --dp-size=8 \
    --enable-dp-attention \
    --mem-fraction-static=0.85 \
    --moe-a2a-backend=deepep \
    --max-running-requests=256 \
    --kv-cache-dtype=fp8_e4m3

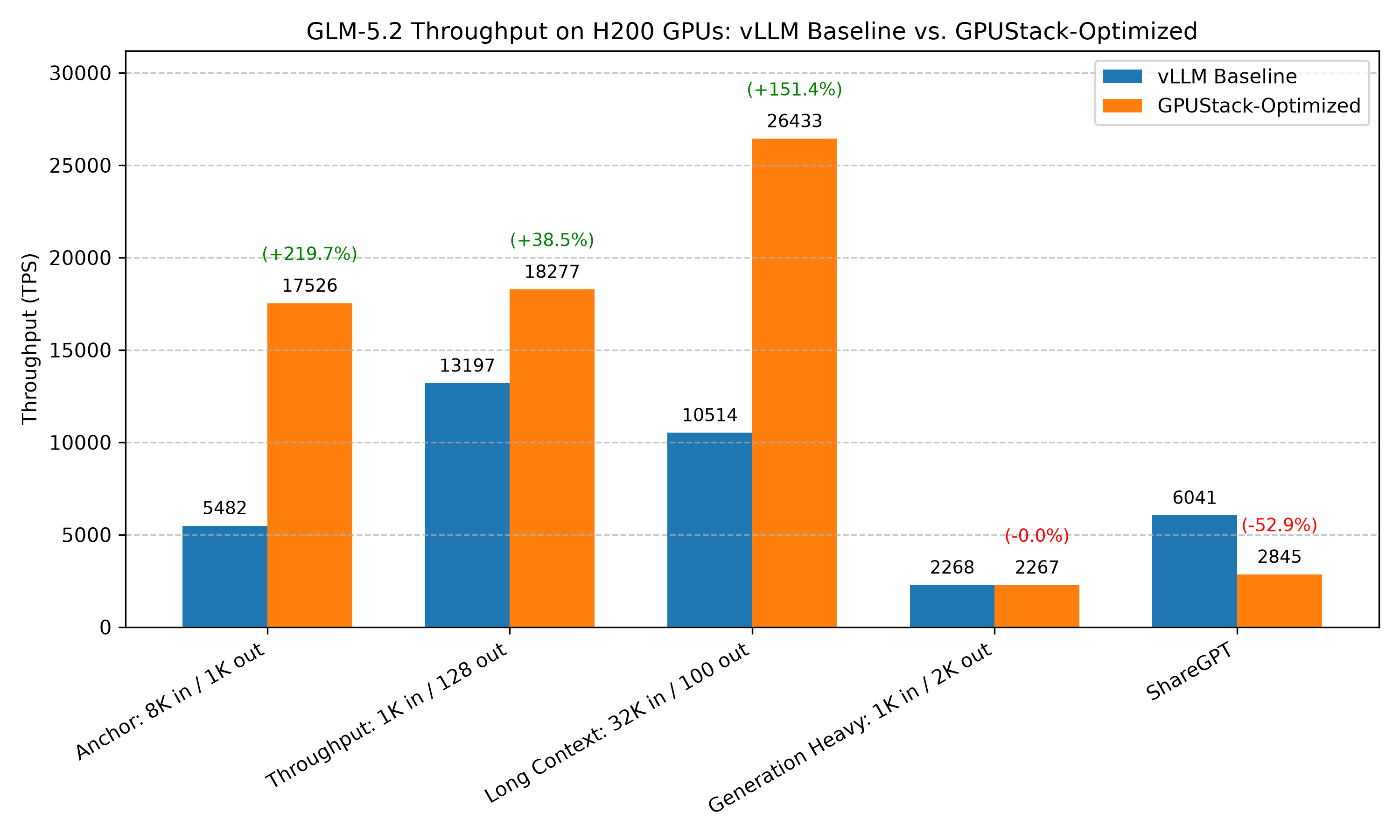

Optimizasyon öncesi ve sonrası benchmark sonuçlarının karşılaştırması:

Benchmark senaryosu temel yapılandırma (optimizasyonsuz vLLM) Optimize edilmiş
Balanced: 8K giriş / 1K çıkış (optimizasyon hedefi) Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24		 Toplam TPS: 17525.76 (+219.70%)
Ortalama TPOT(ms): 217.89
Kısa bağlam (1K giriş / 128 çıkış) Toplam TPS: 13196.90
Ortalama TPOT(ms): 316.73		 Toplam TPS: 18276.60 (+38.49%)
Ortalama TPOT(ms): 211.06
Uzun bağlam (32K giriş / 100 çıkış) Toplam TPS: 10513.68
Ortalama TPOT(ms): 1320.02		 Toplam TPS: 26433.15 (+151.42%)
Ortalama TPOT(ms): 537.26
Yoğun üretim (1K giriş / 2K çıkış) Toplam TPS: 2268.18
Ortalama TPOT(ms): 42.11		 Toplam TPS: 2267.33 (-0.04%)
Ortalama TPOT(ms): 46.54
ShareGPT Toplam TPS: 6040.94
Ortalama TPOT(ms): 149.24		 Toplam TPS: 2845.48 (-52.90%)
Ortalama TPOT(ms): 331.21

Not

  1. Benchmark testlerimiz olası tüm optimizasyon birleşimlerini kapsamaz. Örneğin, varsayılan yapılandırmasında en iyi performansı gösteren çıkarım motorunu sonraki ayarlamalar için başlangıç noktası olarak seçeriz. Bu eleme yaklaşımı yerel bir optimum verir; bu, genel optimum olmayabilir.
  2. En büyük toplu iş boyutu, zamanlama yapılandırması, genişletilmiş KV önbelleği, CUDA graph gibi belirli kullanım senaryolarına bağlı başka optimizasyonlar da vardır. Bu belgedeki sonuçlar, daha hedefli optimizasyonlar için başlangıç noktası olabilir.
  3. Testler belirli donanım ve yazılım yapılandırmalarında yürütülmüştür. Çıkarım motorlarındaki gelişmeler sonuçları değiştirebilir.
  4. Nicemleme doğruluğu etkileyebilir; ancak FP8 nicemleme çoğu modelde %1'den az doğruluk kaybı sağlayabilir. Ayrıntılar için değerlendirme sonuçlarına bakın. Bu nedenle düşük gecikmeli sunum senaryolarında FP8 nicemleme önemle önerilir.
  5. Önerilen yapılandırma yüksek eş zamanlılık ve orta-uzun girdiler için ayarlanmıştır (temel iş yükü: 8K giriş / 1K çıkış). ShareGPT gibi kısa giriş/çıkışlı konuşma iş yüklerinde düz tensör paralelliğinden daha düşük performans verir; çünkü DP-attention ve DeepEP uzun diziler için tasarlanmıştır ve ek yükleri kısa isteklerde karşılanamaz (Diğer Benchmark Senaryoları altındaki ShareGPT'ye bakın). Bu denge GLM-5.2'nin hedef kullanımına uygundur: güçlü kodlama yeteneği, bağlamın çoğunlukla uzun olduğu kodlama ajanı sunumunu başlıca senaryo yapar; yapılandırma tam olarak bu alana göre optimize edilmiştir.

Eksik noktalar veya yeni değişiklikleri yansıtacak güncellemeler varsa bize bildirin.

Deney kurulumu

Model

zai-org/GLM-5.2-FP8

Donanım

NVIDIA H200x8

Motor sürümü

  • vLLM v0.24.0
  • SGLang v0.5.14

Benchmark yöntemi

Bu projede model sunum iş yükleri için GPUStack'in tek tıklamalı benchmark özelliği kullanılır. Bu belgedeki benchmark testleri bu akışla yürütülmüştür.

GPUStack'in benchmark uygulaması guidellm üzerine, sarmalayıcı benchmark-runner projesi aracılığıyla kurulmuştur.

Aşağıda listelenen benchmark yapılandırmalarında model dağıtımı, benchmark işinin gönderilmesi ve sonuçların toplanması GPUStack tarafından yapılır.

Benchmark profilleri

Balanced
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 8192
dataset_output_tokens: 1024
dataset_seed: 42
request_rate: 1000
total_requests: 1000
Kısa bağlam
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 1024
dataset_output_tokens: 128
dataset_seed: 42
request_rate: 1000
total_requests: 1000
Uzun bağlam
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 32000
dataset_output_tokens: 100
dataset_seed: 42
request_rate: 1
total_requests: 100
Yoğun üretim
1
2
3
4
5
6
dataset_name: Random
dataset_input_tokens: 1000
dataset_output_tokens: 2000
dataset_seed: 42
request_rate: 1
total_requests: 200
ShareGPT
1
2
3
dataset_name: ShareGPT
request_rate: 1000
total_requests: 1000

Deney sonuçları

Çıkarım motoru seçimi

vLLM

  • Profil: Balanced
  • Arka uç parametreleri:
    1
    --tensor-parallel-size=8
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1684.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.59
Output token throughput (tok/s):         608.31
Peak output token throughput (tok/s):    21900.04
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5481.90
----------------------Latency---------------------
Mean Latency(s):                          651.51
Median Latency(s):                        823.57
P95 Latency(s):                           857.92
P99 Latency(s):                           858.57
---------------Time to First Token----------------
Mean TTFT (ms):                          592315.54
Median TTFT (ms):                        762631.30
P95 TTFT (ms):                           799738.92
P99 TTFT (ms):                           800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          636.24
Median TPOT (ms):                        804.27
P95 TPOT (ms):                           837.81
P99 TPOT (ms):                           838.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.86
Median ITL (ms):                         56.85
P95 ITL (ms):                            69.41
P99 ITL (ms):                            90.01
==================================================

SGLang

  • Profil: Balanced
  • Arka uç parametreleri:
    1
    --tp-size=8
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1425.58
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         719.90
Peak output token throughput (tok/s):    36770.60
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6487.53
----------------------Latency---------------------
Mean Latency(s):                          553.77
Median Latency(s):                        674.98
P95 Latency(s):                           738.28
P99 Latency(s):                           1087.06
---------------Time to First Token----------------
Mean TTFT (ms):                          499353.08
Median TTFT (ms):                        640537.31
P95 TTFT (ms):                           692823.09
P99 TTFT (ms):                           694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          540.79
Median TPOT (ms):                        659.16
P95 TPOT (ms):                           720.97
P99 TPOT (ms):                           1061.58
---------------Inter-token Latency----------------
Mean ITL (ms):                           53.19
Median ITL (ms):                         41.87
P95 ITL (ms):                            53.14
P99 ITL (ms):                            661.38
==================================================
  • Özet: SGLang Toplam TPS = 6487.53, vLLM Toplam TPS = 5481.90. SGLang, 1005.62 tok/s daha hızlıdır (18.34%); Ortalama TPOT = 540.79 ms ile 636.24 ms, azalma: 95.45 ms (15.00%).

Paralellik stratejisi

TP

  • Profil: Balanced
  • Arka uç parametreleri:
    1
    --tp-size=8
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1425.58
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         719.90
Peak output token throughput (tok/s):    36770.60
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6487.53
----------------------Latency---------------------
Mean Latency(s):                          553.77
Median Latency(s):                        674.98
P95 Latency(s):                           738.28
P99 Latency(s):                           1087.06
---------------Time to First Token----------------
Mean TTFT (ms):                          499353.08
Median TTFT (ms):                        640537.31
P95 TTFT (ms):                           692823.09
P99 TTFT (ms):                           694859.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          540.79
Median TPOT (ms):                        659.16
P95 TPOT (ms):                           720.97
P99 TPOT (ms):                           1061.58
---------------Inter-token Latency----------------
Mean ITL (ms):                           53.19
Median ITL (ms):                         41.87
P95 ITL (ms):                            53.14
P99 ITL (ms):                            661.38
==================================================

TP + DP-Attention

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
    --tp-size=8
--enable-dp-attention
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1464.79
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.68
Output token throughput (tok/s):         707.03
Peak output token throughput (tok/s):    36792.16
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6371.59
----------------------Latency---------------------
Mean Latency(s):                          566.77
Median Latency(s):                        691.84
P95 Latency(s):                           758.76
P99 Latency(s):                           1226.15
---------------Time to First Token----------------
Mean TTFT (ms):                          508420.96
Median TTFT (ms):                        649948.91
P95 TTFT (ms):                           704806.45
P99 TTFT (ms):                           709287.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          553.48
Median TPOT (ms):                        675.62
P95 TPOT (ms):                           740.98
P99 TPOT (ms):                           1197.41
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.03
Median ITL (ms):                         40.44
P95 ITL (ms):                            52.07
P99 ITL (ms):                            658.59
==================================================

TP + DP + DP-Attention

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
    --tp-size=8
--dp-size=8
--enable-dp-attention
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1334.85
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         778.01
Peak output token throughput (tok/s):    33009.89
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          7011.17
----------------------Latency---------------------
Mean Latency(s):                          509.42
Median Latency(s):                        662.31
P95 Latency(s):                           667.58
P99 Latency(s):                           667.92
---------------Time to First Token----------------
Mean TTFT (ms):                          474839.81
Median TTFT (ms):                        625093.03
P95 TTFT (ms):                           635816.93
P99 TTFT (ms):                           636463.47
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          497.48
Median TPOT (ms):                        646.79
P95 TPOT (ms):                           651.93
P99 TPOT (ms):                           652.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           33.81
Median ITL (ms):                         33.03
P95 ITL (ms):                            37.77
P99 ITL (ms):                            38.03
==================================================

TP + DP + DP-Attention + EP

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
    --tp-size=8
--enable-dp-attention
--dp-size=8
--ep-size=8
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1430.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.70
Output token throughput (tok/s):         724.90
Peak output token throughput (tok/s):    36964.00
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6532.56
----------------------Latency---------------------
Mean Latency(s):                          546.29
Median Latency(s):                        710.24
P95 Latency(s):                           716.16
P99 Latency(s):                           716.23
---------------Time to First Token----------------
Mean TTFT (ms):                          509145.51
Median TTFT (ms):                        672291.77
P95 TTFT (ms):                           682441.07
P99 TTFT (ms):                           682611.26
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          533.49
Median TPOT (ms):                        693.59
P95 TPOT (ms):                           699.37
P99 TPOT (ms):                           699.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           36.31
Median ITL (ms):                         35.36
P95 ITL (ms):                            40.52
P99 ITL (ms):                            40.69
==================================================
  • Özet: TP + DP + DP-Attention Toplam TPS = 7011.17, TP + DP-Attention Toplam TPS = 6371.59. TP + DP + DP-Attention, 639.58 tok/s daha hızlıdır (10.04%); Ortalama TPOT = 497.48 ms ile 553.48 ms, azalma: 56.00 ms (10.12%).

Bellek oranı

auto

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
    --tp-size=8
--dp-size=8
--enable-dp-attention
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1587.01
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.63
Output token throughput (tok/s):         652.68
Peak output token throughput (tok/s):    28960.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5881.79
----------------------Latency---------------------
Mean Latency(s):                          608.53
Median Latency(s):                        792.41
P95 Latency(s):                           798.47
P99 Latency(s):                           798.63
---------------Time to First Token----------------
Mean TTFT (ms):                          565850.91
Median TTFT (ms):                        749005.91
P95 TTFT (ms):                           758437.70
P99 TTFT (ms):                           759022.89
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          594.26
Median TPOT (ms):                        773.84
P95 TPOT (ms):                           779.76
P99 TPOT (ms):                           779.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           41.71
Median ITL (ms):                         41.02
P95 ITL (ms):                            45.77
P99 ITL (ms):                            45.99
==================================================

0.8

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.8
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  890.94
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.12
Output token throughput (tok/s):         1173.22
Peak output token throughput (tok/s):    36646.25
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          10572.77
----------------------Latency---------------------
Mean Latency(s):                          352.36
Median Latency(s):                        385.98
P95 Latency(s):                           453.81
P99 Latency(s):                           743.15
---------------Time to First Token----------------
Mean TTFT (ms):                          283237.85
Median TTFT (ms):                        338538.99
P95 TTFT (ms):                           395476.65
P99 TTFT (ms):                           398036.19
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          344.10
Median TPOT (ms):                        376.93
P95 TPOT (ms):                           443.17
P99 TPOT (ms):                           725.73
---------------Inter-token Latency----------------
Mean ITL (ms):                           67.57
Median ITL (ms):                         52.23
P95 ITL (ms):                            61.80
P99 ITL (ms):                            400.53
==================================================

0.85

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  688.60
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1527.01
Peak output token throughput (tok/s):    46500.08
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13760.98
----------------------Latency---------------------
Mean Latency(s):                          273.29
Median Latency(s):                        272.67
P95 Latency(s):                           362.52
P99 Latency(s):                           488.73
---------------Time to First Token----------------
Mean TTFT (ms):                          201642.60
Median TTFT (ms):                        219374.83
P95 TTFT (ms):                           293139.84
P99 TTFT (ms):                           297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.89
Median TPOT (ms):                        266.28
P95 TPOT (ms):                           354.02
P99 TPOT (ms):                           477.28
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.04
Median ITL (ms):                         65.72
P95 ITL (ms):                            85.73
P99 ITL (ms):                            276.51
==================================================
  • Özet: 0.85 Toplam TPS = 13760.98, auto Toplam TPS = 5881.79. 0.85, 7879.19 tok/s daha hızlıdır (133.96%); Ortalama TPOT = 266.89 ms ile 594.26 ms, azalma: 327.38 ms (55.09%).

Parçalı prefill boyutu

Varsayılan (default)

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  688.60
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1527.01
Peak output token throughput (tok/s):    46500.08
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13760.98
----------------------Latency---------------------
Mean Latency(s):                          273.29
Median Latency(s):                        272.67
P95 Latency(s):                           362.52
P99 Latency(s):                           488.73
---------------Time to First Token----------------
Mean TTFT (ms):                          201642.60
Median TTFT (ms):                        219374.83
P95 TTFT (ms):                           293139.84
P99 TTFT (ms):                           297529.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.89
Median TPOT (ms):                        266.28
P95 TPOT (ms):                           354.02
P99 TPOT (ms):                           477.28
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.04
Median ITL (ms):                         65.72
P95 ITL (ms):                            85.73
P99 ITL (ms):                            276.51
==================================================

8K

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--chunked-prefill-size=8192
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  689.11
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.45
Output token throughput (tok/s):         1526.75
Peak output token throughput (tok/s):    52394.68
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13758.60
----------------------Latency---------------------
Mean Latency(s):                          273.27
Median Latency(s):                        272.75
P95 Latency(s):                           362.79
P99 Latency(s):                           489.22
---------------Time to First Token----------------
Mean TTFT (ms):                          201640.48
Median TTFT (ms):                        219319.19
P95 TTFT (ms):                           293076.86
P99 TTFT (ms):                           297429.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          266.86
Median TPOT (ms):                        266.36
P95 TPOT (ms):                           354.28
P99 TPOT (ms):                           477.76
---------------Inter-token Latency----------------
Mean ITL (ms):                           70.02
Median ITL (ms):                         65.70
P95 ITL (ms):                            85.80
P99 ITL (ms):                            276.29
==================================================
  • Özet: default Toplam TPS = 13760.98, 8K Toplam TPS = 13758.60. default, 2.37 tok/s daha hızlıdır (0.02%); Ortalama TPOT = 266.89 ms ile 266.86 ms, artış: 0.03 ms (0.01% daha yavaş).

Büyük parçalı prefill boyutlarında bellek yetersizliği

Bu yapılandırmada --chunked-prefill-size değerini 16384 veya 32768 yapmak bellek yetersizliğiyle çökmeye yol açar. Daha büyük blok, aktivasyon rezervini artırır; bellek planlayıcısı bunu KV önbellek bütçesinden çıkarınca ~700B FP8 ağırlıkları ve KV önbelleği için yeterli alan kalmaz. Yalnızca 8192 ve varsayılan değer çalışır; aralarındaki fark ölçüm gürültüsü düzeyindedir. 8K girdide blok boyutu işlem hacmi kazancı sağlamadığından önerilen yapılandırmada varsayılan bırakılmıştır.

DeepEP ve en fazla çalışan istek

max-running 64

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=64
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  945.02
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.05
Output token throughput (tok/s):         1105.14
Peak output token throughput (tok/s):    49070.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          9959.18
----------------------Latency---------------------
Mean Latency(s):                          367.92
Median Latency(s):                        462.73
P95 Latency(s):                           516.66
P99 Latency(s):                           517.52
---------------Time to First Token----------------
Mean TTFT (ms):                          325930.74
Median TTFT (ms):                        419854.01
P95 TTFT (ms):                           468446.97
P99 TTFT (ms):                           469030.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          359.30
Median TPOT (ms):                        451.88
P95 TPOT (ms):                           504.55
P99 TPOT (ms):                           505.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           41.05
Median ITL (ms):                         41.00
P95 ITL (ms):                            47.87
P99 ITL (ms):                            48.31
==================================================

max-running 256

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

max-running 512

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=512
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  666.14
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.50
Output token throughput (tok/s):         1581.39
Peak output token throughput (tok/s):    38164.10
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14251.08
----------------------Latency---------------------
Mean Latency(s):                          265.47
Median Latency(s):                        292.45
P95 Latency(s):                           368.40
P99 Latency(s):                           482.40
---------------Time to First Token----------------
Mean TTFT (ms):                          203755.52
Median TTFT (ms):                        239495.62
P95 TTFT (ms):                           301525.04
P99 TTFT (ms):                           304478.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          259.25
Median TPOT (ms):                        285.59
P95 TPOT (ms):                           359.76
P99 TPOT (ms):                           471.09
---------------Inter-token Latency----------------
Mean ITL (ms):                           60.33
Median ITL (ms):                         54.22
P95 ITL (ms):                            70.59
P99 ITL (ms):                            291.22
==================================================
  • Özet: max-running 256 Toplam TPS = 14451.05, max-running 64 Toplam TPS = 9959.18. max-running 256, 4491.87 tok/s daha hızlıdır (45.10%); Ortalama TPOT = 255.63 ms ile 359.30 ms, azalma: 103.67 ms (28.85%).

DeepEP modu

auto

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

normal

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--deepep-mode=normal
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  2722.41
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.37
Output token throughput (tok/s):         378.79
Peak output token throughput (tok/s):    63639.56
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          3413.56
----------------------Latency---------------------
Mean Latency(s):                          1084.11
Median Latency(s):                        1206.16
P95 Latency(s):                           1510.02
P99 Latency(s):                           1897.83
---------------Time to First Token----------------
Mean TTFT (ms):                          773983.92
Median TTFT (ms):                        924140.14
P95 TTFT (ms):                           1214572.96
P99 TTFT (ms):                           1217017.99
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1058.70
Median TPOT (ms):                        1177.89
P95 TPOT (ms):                           1474.63
P99 TPOT (ms):                           1853.35
---------------Inter-token Latency----------------
Mean ITL (ms):                           303.15
Median ITL (ms):                         277.82
P95 ITL (ms):                            294.11
P99 ITL (ms):                            1229.38
==================================================
  • Özet: auto Toplam TPS = 14451.05, normal Toplam TPS = 3413.56. auto, 11037.49 tok/s daha hızlıdır (323.34%); Ortalama TPOT = 255.63 ms ile 1058.70 ms, azalma: 803.07 ms (75.85%).

KV önbelleği veri türü

bf16

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
    --tp-size=8
--dp-size=8
--enable-dp-attention
--moe-a2a-backend=deepep
--mem-fraction-static=0.85
--max-running-requests=256
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  657.33
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.52
Output token throughput (tok/s):         1603.58
Peak output token throughput (tok/s):    53623.54
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          14451.05
----------------------Latency---------------------
Mean Latency(s):                          261.76
Median Latency(s):                        288.37
P95 Latency(s):                           362.40
P99 Latency(s):                           474.82
---------------Time to First Token----------------
Mean TTFT (ms):                          200415.03
Median TTFT (ms):                        235618.38
P95 TTFT (ms):                           296378.61
P99 TTFT (ms):                           299199.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          255.63
Median TPOT (ms):                        281.61
P95 TPOT (ms):                           353.91
P99 TPOT (ms):                           463.69
---------------Inter-token Latency----------------
Mean ITL (ms):                           59.97
Median ITL (ms):                         53.70
P95 ITL (ms):                            70.44
P99 ITL (ms):                            286.92
==================================================

fp8_e4m3

  • Profil: Balanced
  • Arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  539.39
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.85
Output token throughput (tok/s):         1944.77
Peak output token throughput (tok/s):    60301.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          17525.76
----------------------Latency---------------------
Mean Latency(s):                          223.12
Median Latency(s):                        219.64
P95 Latency(s):                           327.25
P99 Latency(s):                           327.80
---------------Time to First Token----------------
Mean TTFT (ms):                          143076.43
Median TTFT (ms):                        151142.06
P95 TTFT (ms):                           234645.47
P99 TTFT (ms):                           239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          217.89
Median TPOT (ms):                        214.49
P95 TPOT (ms):                           319.58
P99 TPOT (ms):                           320.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           78.24
Median ITL (ms):                         74.83
P95 ITL (ms):                            105.11
P99 ITL (ms):                            217.21
==================================================
  • Özet: fp8_e4m3 Toplam TPS = 17525.76, bf16 Toplam TPS = 14451.05. fp8_e4m3, 3074.72 tok/s daha hızlıdır (21.28%); Ortalama TPOT = 217.89 ms ile 255.63 ms, azalma: 37.74 ms (14.76%).

FP8 KV önbelleği doğruluk denetimi (GSM8K)

Hopper'da FP8 KV önbelleği varsayılan değildir (SGLang otomatik olarak bf16 seçer); yalnızca KV ile sınırlı, yüksek eş zamanlılık ve uzun bağlam koşullarında işlem hacmini artırır. Kaliteyi düşürmediğini doğrulamak için bir GSM8K kontrol testi yaptık (200 örnek, düşünme kapalı, açgözlü çözümleme):

KV veri türü GSM8K puanı
bf16 0.975
fp8_e4m3 0.980

Fark ölçüm gürültüsü düzeyindedir (~1 soru / 200); ölçülebilir bir doğruluk kaybı yoktur. Yine de özellikle FP8 nicemleme hatasının birikebildiği uzun bağlamlarda kendi iş yükünüzün doğruluğunu doğrulayın.

Optimizasyon seçeneklerinin özeti

Benchmark senaryoları Optimize edilmiş Temel yapılandırma
Çıkarım motoru seçimi Toplam TPS: 6487.53 (+18.34%)
Ortalama TPOT(ms): 540.79		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
Paralellik stratejisi Toplam TPS: 7011.17 (+27.90%)
Ortalama TPOT(ms): 497.48		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
Bellek oranı Toplam TPS: 13760.98 (+151.03%)
Ortalama TPOT(ms): 266.89		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
Parçalı prefill boyutu Toplam TPS: 13760.98 (+151.03%)
Ortalama TPOT(ms): 266.89		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
DeepEP ve en fazla çalışan istek Toplam TPS: 14451.05 (+163.61%)
Ortalama TPOT(ms): 255.63		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
DeepEP modu Toplam TPS: 14451.05 (+163.61%)
Ortalama TPOT(ms): 255.63		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24
KV önbelleği veri türü Toplam TPS: 17525.76 (+219.70%)
Ortalama TPOT(ms): 217.89		 Toplam TPS: 5481.90
Ortalama TPOT(ms): 636.24

Diğer benchmark senaryoları

Balanced: 8K giriş / 1K çıkış (optimizasyon hedefi)

  • Temel arka uç parametreleri:
    1
    --tensor-parallel-size=8
Temel benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  1684.76
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              0.59
Output token throughput (tok/s):         608.31
Peak output token throughput (tok/s):    21900.04
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          5481.90
----------------------Latency---------------------
Mean Latency(s):                          651.51
Median Latency(s):                        823.57
P95 Latency(s):                           857.92
P99 Latency(s):                           858.57
---------------Time to First Token----------------
Mean TTFT (ms):                          592315.54
Median TTFT (ms):                        762631.30
P95 TTFT (ms):                           799738.92
P99 TTFT (ms):                           800277.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          636.24
Median TPOT (ms):                        804.27
P95 TPOT (ms):                           837.81
P99 TPOT (ms):                           838.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           57.86
Median ITL (ms):                         56.85
P95 ITL (ms):                            69.41
P99 ITL (ms):                            90.01
==================================================
  • Optimize edilmiş arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Optimize edilmiş benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  539.39
Total input tokens:                      8204000
Total generated tokens:                  1024000
Request throughput (req/s):              1.85
Output token throughput (tok/s):         1944.77
Peak output token throughput (tok/s):    60301.69
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          17525.76
----------------------Latency---------------------
Mean Latency(s):                          223.12
Median Latency(s):                        219.64
P95 Latency(s):                           327.25
P99 Latency(s):                           327.80
---------------Time to First Token----------------
Mean TTFT (ms):                          143076.43
Median TTFT (ms):                        151142.06
P95 TTFT (ms):                           234645.47
P99 TTFT (ms):                           239552.62
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          217.89
Median TPOT (ms):                        214.49
P95 TPOT (ms):                           319.58
P99 TPOT (ms):                           320.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           78.24
Median ITL (ms):                         74.83
P95 ITL (ms):                            105.11
P99 ITL (ms):                            217.21
==================================================

Kısa bağlam (1K giriş / 128 çıkış)

  • Temel arka uç parametreleri:N/A
Temel benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  88.45
Total input tokens:                      1036000
Total generated tokens:                  128000
Request throughput (req/s):              11.29
Output token throughput (tok/s):         1451.20
Peak output token throughput (tok/s):    102180.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          13196.90
----------------------Latency---------------------
Mean Latency(s):                          40.54
Median Latency(s):                        39.42
P95 Latency(s):                           57.97
P99 Latency(s):                           60.17
---------------Time to First Token----------------
Mean TTFT (ms):                          19596.45
Median TTFT (ms):                        22675.56
P95 TTFT (ms):                           34452.65
P99 TTFT (ms):                           36690.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          316.73
Median TPOT (ms):                        307.96
P95 TPOT (ms):                           452.86
P99 TPOT (ms):                           470.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           164.92
Median ITL (ms):                         179.87
P95 ITL (ms):                            185.20
P99 ITL (ms):                            223.80
==================================================
  • Optimize edilmiş arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Optimize edilmiş benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  65.34
Total input tokens:                      1036000
Total generated tokens:                  128000
Request throughput (req/s):              15.29
Output token throughput (tok/s):         2009.80
Peak output token throughput (tok/s):    54517.94
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          18276.60
----------------------Latency---------------------
Mean Latency(s):                          27.02
Median Latency(s):                        29.93
P95 Latency(s):                           30.87
P99 Latency(s):                           44.75
---------------Time to First Token----------------
Mean TTFT (ms):                          17437.67
Median TTFT (ms):                        19408.58
P95 TTFT (ms):                           24509.18
P99 TTFT (ms):                           31027.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          211.06
Median TPOT (ms):                        233.85
P95 TPOT (ms):                           241.16
P99 TPOT (ms):                           349.60
---------------Inter-token Latency----------------
Mean ITL (ms):                           75.41
Median ITL (ms):                         75.81
P95 ITL (ms):                            109.63
P99 ITL (ms):                            113.08
==================================================

Uzun bağlam (32K giriş / 100 çıkış)

  • Temel arka uç parametreleri:N/A
Temel benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             77
Benchmark duration (s):                  308.44
Total input tokens:                      3201200
Total generated tokens:                  10000
Request throughput (req/s):              0.32
Output token throughput (tok/s):         32.74
Peak output token throughput (tok/s):    4245.77
Peak concurrent requests:                77.00
Total Token throughput (tok/s):          10513.68
----------------------Latency---------------------
Mean Latency(s):                          132.00
Median Latency(s):                        131.48
P95 Latency(s):                           214.57
P99 Latency(s):                           217.83
---------------Time to First Token----------------
Mean TTFT (ms):                          106054.23
Median TTFT (ms):                        104360.05
P95 TTFT (ms):                           198608.95
P99 TTFT (ms):                           206310.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1320.02
Median TPOT (ms):                        1314.76
P95 TPOT (ms):                           2145.71
P99 TPOT (ms):                           2178.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           262.10
Median ITL (ms):                         274.05
P95 ITL (ms):                            281.04
P99 ITL (ms):                            281.32
==================================================
  • Optimize edilmiş arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Optimize edilmiş benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             77
Benchmark duration (s):                  135.63
Total input tokens:                      3201200
Total generated tokens:                  10000
Request throughput (req/s):              0.74
Output token throughput (tok/s):         82.32
Peak output token throughput (tok/s):    13906.10
Peak concurrent requests:                77.00
Total Token throughput (tok/s):          26433.15
----------------------Latency---------------------
Mean Latency(s):                          53.73
Median Latency(s):                        53.63
P95 Latency(s):                           76.27
P99 Latency(s):                           78.63
---------------Time to First Token----------------
Mean TTFT (ms):                          23225.41
Median TTFT (ms):                        20088.83
P95 TTFT (ms):                           34063.13
P99 TTFT (ms):                           35622.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          537.26
Median TPOT (ms):                        536.30
P95 TPOT (ms):                           762.65
P99 TPOT (ms):                           786.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           308.09
Median ITL (ms):                         304.06
P95 ITL (ms):                            621.19
P99 ITL (ms):                            625.53
==================================================

Yoğun üretim (1K giriş / 2K çıkış)

  • Temel arka uç parametreleri:N/A
Temel benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             91
Benchmark duration (s):                  265.81
Total input tokens:                      202400
Total generated tokens:                  400000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         1506.10
Peak output token throughput (tok/s):    41424.97
Peak concurrent requests:                91.00
Total Token throughput (tok/s):          2268.18
----------------------Latency---------------------
Mean Latency(s):                          84.22
Median Latency(s):                        86.45
P95 Latency(s):                           90.73
P99 Latency(s):                           90.83
---------------Time to First Token----------------
Mean TTFT (ms):                          236.63
Median TTFT (ms):                        235.39
P95 TTFT (ms):                           254.39
P99 TTFT (ms):                           257.63
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          42.11
Median TPOT (ms):                        43.22
P95 TPOT (ms):                           45.37
P99 TPOT (ms):                           45.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           42.01
Median ITL (ms):                         43.13
P95 ITL (ms):                            45.27
P99 ITL (ms):                            45.32
==================================================
  • Optimize edilmiş arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Optimize edilmiş benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             103
Benchmark duration (s):                  266.01
Total input tokens:                      202400
Total generated tokens:                  400000
Request throughput (req/s):              0.75
Output token throughput (tok/s):         1505.53
Peak output token throughput (tok/s):    33577.32
Peak concurrent requests:                103.00
Total Token throughput (tok/s):          2267.33
----------------------Latency---------------------
Mean Latency(s):                          93.09
Median Latency(s):                        96.15
P95 Latency(s):                           102.79
P99 Latency(s):                           102.95
---------------Time to First Token----------------
Mean TTFT (ms):                          374.11
Median TTFT (ms):                        355.12
P95 TTFT (ms):                           479.63
P99 TTFT (ms):                           747.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          46.54
Median TPOT (ms):                        48.07
P95 TPOT (ms):                           51.40
P99 TPOT (ms):                           51.47
---------------Inter-token Latency----------------
Mean ITL (ms):                           46.38
Median ITL (ms):                         47.92
P95 ITL (ms):                            51.24
P99 ITL (ms):                            51.32
==================================================

ShareGPT

  • Temel arka uç parametreleri:N/A
Temel benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  99.70
Total input tokens:                      328145
Total generated tokens:                  270248
Request throughput (req/s):              10.03
Output token throughput (tok/s):         2728.23
Peak output token throughput (tok/s):    99078.05
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6040.94
----------------------Latency---------------------
Mean Latency(s):                          40.33
Median Latency(s):                        36.92
P95 Latency(s):                           80.82
P99 Latency(s):                           89.73
---------------Time to First Token----------------
Mean TTFT (ms):                          3745.78
Median TTFT (ms):                        1735.57
P95 TTFT (ms):                           11581.05
P99 TTFT (ms):                           13380.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          149.24
Median TPOT (ms):                        140.13
P95 TPOT (ms):                           242.35
P99 TPOT (ms):                           318.37
---------------Inter-token Latency----------------
Mean ITL (ms):                           135.88
Median ITL (ms):                         132.05
P95 ITL (ms):                            209.02
P99 ITL (ms):                            246.28
==================================================
  • Optimize edilmiş arka uç parametreleri:
    1
2
3
4
5
6
7
    --tp-size=8
--dp-size=8
--enable-dp-attention
--mem-fraction-static=0.85
--moe-a2a-backend=deepep
--max-running-requests=256
--kv-cache-dtype=fp8_e4m3
Optimize edilmiş benchmark sonucu
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  211.07
Total input tokens:                      328145
Total generated tokens:                  270248
Request throughput (req/s):              4.74
Output token throughput (tok/s):         1285.09
Peak output token throughput (tok/s):    33224.09
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          2845.48
----------------------Latency---------------------
Mean Latency(s):                          89.51
Median Latency(s):                        87.50
P95 Latency(s):                           162.23
P99 Latency(s):                           186.86
---------------Time to First Token----------------
Mean TTFT (ms):                          41335.55
Median TTFT (ms):                        53587.71
P95 TTFT (ms):                           71490.14
P99 TTFT (ms):                           79840.34
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          331.21
Median TPOT (ms):                        270.24
P95 TPOT (ms):                           620.79
P99 TPOT (ms):                           1143.93
---------------Inter-token Latency----------------
Mean ITL (ms):                           178.92
Median ITL (ms):                         205.22
P95 ITL (ms):                            223.71
P99 ITL (ms):                            239.28
==================================================
