NVIDIA H200 GPU üzerinde DeepSeek-V3.2 işlem hacmi optimizasyonu

Sonuç

tek düğümde H200x8 üzerinde DeepSeek-V3.2 işlem hacmini optimize etmek için önerilen yapılandırma:

Model sunum komutu

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

tool_chat_template_deepseekv32.jinja bağlantısı.

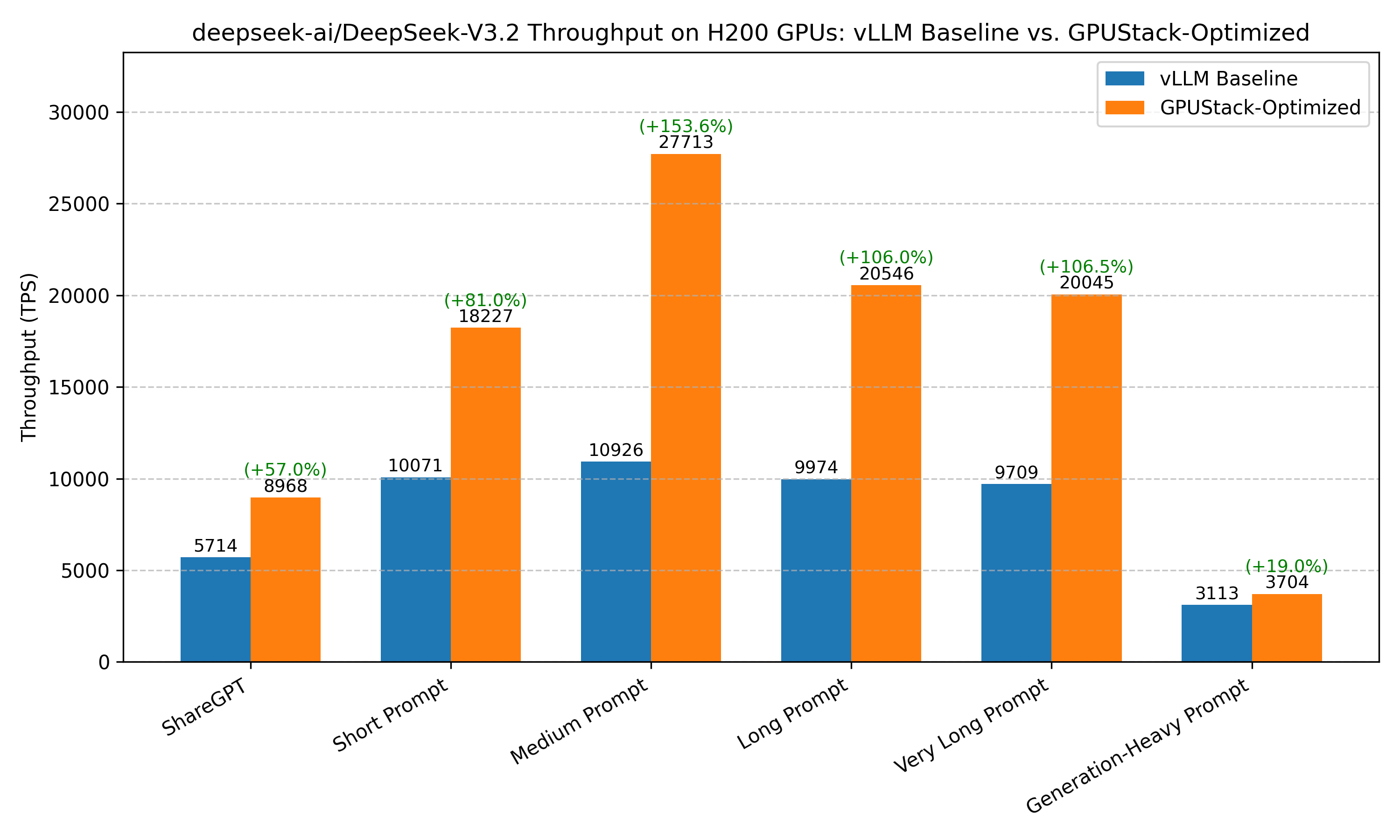

Aşağıdaki benchmark sonuçlarına göre 8×H200 üzerinde DeepSeek-V3.2 işlem hacmini optimize etmek için yukarıdaki yapılandırmayı öneririz.

Paralellik ve Araç Çağrısı Yapılandırması en büyük performans kazançlarını sağladığından önerilen komuta dahil edilmiştir. Bağlam Uzunluğu Ayarı işlem hacmini daha da artırabilir; ancak iş yüküne çok bağlıdır ve gerçek kullanıma göre ayarlanmalıdır. Dikkat Arka Ucu optimizasyonları olumlu etki gösterse de kazançları görece küçüktür ve veri kümesine göre değişebilir; bu nedenle varsayılan öneriye dahil edilmez.

Optimizasyon öncesi ve sonrası benchmark sonuçlarının karşılaştırması:

Benchmark senaryosu	temel yapılandırma (optimizasyonsuz vLLM)	Optimize edilmiş
ShareGPT	Toplam TPS: 5713.95 Ortalama TPOT(ms): 275.03	Toplam TPS: 8968.32 (+56.95%) Ortalama TPOT(ms): 203.05
Kısa istem	Toplam TPS: 10071.49 Ortalama TPOT(ms): 781.80	Toplam TPS: 18227.38 (+80.98%) Ortalama TPOT(ms): 776.55
Orta uzunlukta istem	Toplam TPS: 10925.59 Ortalama TPOT(ms): 354.59	Toplam TPS: 27712.54 (+153.65%) Ortalama TPOT(ms): 192.24
Uzun istem	Toplam TPS: 9974.26 Ortalama TPOT(ms): 226.74	Toplam TPS: 20545.67 (+105.99%) Ortalama TPOT(ms): 177.95
Çok uzun istem	Toplam TPS: 9709.27 Ortalama TPOT(ms): 472.52	Toplam TPS: 20045.18 (+106.45%) Ortalama TPOT(ms): 246.26
Generation-Heavy Prompt	Toplam TPS: 3112.52 Ortalama TPOT(ms): 45.72	Toplam TPS: 3703.98 (+19.0%) Ortalama TPOT(ms): 39.45

Not

Benchmark testlerimiz olası tüm optimizasyon birleşimlerini kapsamaz. Örneğin, varsayılan yapılandırmasında en iyi performansı gösteren çıkarım motorunu sonraki ayarlamalar için başlangıç noktası olarak seçeriz. Bu eleme yaklaşımı yerel bir optimum verir; bu, genel optimum olmayabilir.
En büyük toplu iş boyutu, zamanlama yapılandırması, genişletilmiş KV önbelleği, CUDA graph gibi belirli kullanım senaryolarına bağlı başka optimizasyonlar da vardır. Bu belgedeki sonuçlar, daha hedefli optimizasyonlar için başlangıç noktası olabilir.
Testler belirli donanım ve yazılım yapılandırmalarında yürütülmüştür. Çıkarım motorlarındaki gelişmeler sonuçları değiştirebilir.

Eksik noktalar veya yeni değişiklikleri yansıtacak güncellemeler varsa bize bildirin.

Optimizasyon hedefi

Yüksek eş zamanlı isteklerde yüksek işlem hacmi sağlar.

Deney kurulumu

Model

deepseek-ai/DeepSeek-V3.2

Donanım

Tek düğümde 8 × NVIDIA H200 SXM GPU.

Motor sürümü

vLLM: v0.13.0
SGLang: v0.5.6.post2
TensorRT-LLM: 1.2.0rc5

Benchmark veri kümesi

ShareGPT
Farklı dizi uzunluklarına sahip rastgele veri kümesi:
- Çok uzun istem: 32000 giriş token'ı, 100 çıkış token'ı
- Uzun istem: 4000 giriş token'ı, 200 çıkış token'ı
- Orta uzunlukta istem: 2000 giriş token'ı, 100 çıkış token'ı
- Kısa istem: 128 giriş token'ı, 4 çıkış token'ı
- Yoğun üretim istemi: 1K giriş token'ı, 2K çıkış token'ı

Benchmark betiği

Model performansını ölçmek için vLLM bench CLI aracını kullanıyoruz. Benchmark şu komutla çalıştırılır:

# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 1000

# Benchmark on random dataset (fixed seed for reproducibility)
vllm bench serve --model deepseek-ai/DeepSeek-V3.2 --backend openai-chat --endpoint /v1/chat/completions --dataset-name random --random-input-len 4000 --random-output-len 200 --num-prompts 500 --seed 42

Deney sonuçları

1. Çıkarım motorunun temel yapılandırması

vLLM

Model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  72.75
Total input tokens:                      219111
Total generated tokens:                  196599
Request throughput (req/s):              13.75
Output token throughput (tok/s):         2702.26
Peak output token throughput (tok/s):    6009.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5713.95
---------------Time to First Token----------------
Mean TTFT (ms):                          13054.63
Median TTFT (ms):                        12849.39
P99 TTFT (ms):                           22754.42
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          275.03
Median TPOT (ms):                        171.63
P99 TPOT (ms):                           666.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           131.14
Median ITL (ms):                         81.97
P99 ITL (ms):                            668.29
==================================================

SGLang

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  138.25
Total input tokens:                      219111
Total generated tokens:                  197337
Request throughput (req/s):              7.23
Output token throughput (tok/s):         1427.44
Peak output token throughput (tok/s):    7949.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          3012.37
---------------Time to First Token----------------
Mean TTFT (ms):                          11470.15
Median TTFT (ms):                        11240.35
P99 TTFT (ms):                           22363.90
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1103.96
Median TPOT (ms):                        672.86
P99 TPOT (ms):                           4231.55
---------------Inter-token Latency----------------
Mean ITL (ms):                           389.06
Median ITL (ms):                         64.46
P99 ITL (ms):                            3013.62
==================================================

TensorRT-LLM

Model sunum betiği

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  236.70
Total input tokens:                      215176
Total generated tokens:                  194893
Request throughput (req/s):              4.16
Output token throughput (tok/s):         823.39
Peak output token throughput (tok/s):    4212.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          1732.48
---------------Time to First Token----------------
Mean TTFT (ms):                          65710.22
Median TTFT (ms):                        66076.17
P99 TTFT (ms):                           125723.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          1391.76
Median TPOT (ms):                        608.74
P99 TPOT (ms):                           4785.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           459.69
Median ITL (ms):                         141.56
P99 ITL (ms):                            4910.46
==================================================

Sonuç: vLLM (5713.95 tok/s) > SGLang(3012.37 tok/s) > TensorRT-LLM (1732.48 tok/s)

2. Optimizasyon: vLLM

Paralellik: DP+EP

Model sunum betiği

# 81920 is half context, full context OOM
vllm serve deepseek-ai/DeepSeek-V3.2 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-tp 1 -dp 8 --enable-expert-parallel --max-model-len 81920

Benchmark sonucu

Successful requests:                     1000
Benchmark duration (s):                  65.62
Total input tokens:                      219111
Total generated tokens:                  197109
Request throughput (req/s):              15.24
Output token throughput (tok/s):         3003.90
Peak output token throughput (tok/s):    10222.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          6343.10
---------------Time to First Token----------------
Mean TTFT (ms):                          9144.24
Median TTFT (ms):                        10233.68
P99 TTFT (ms):                           14920.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          278.22
Median TPOT (ms):                        115.72
P99 TPOT (ms):                           2048.82
---------------Inter-token Latency----------------
Mean ITL (ms):                           100.47
Median ITL (ms):                         74.61
P99 ITL (ms):                            1239.62
==================================================

Paralellik: DCP

Model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
-dcp 8

DeepSeek V3.2, decode aşamasında şu anda softmax log-sum-exp (LSE) değerini sunmayan FlashMLA seyrek dikkat arka ucuna dayanır. Decode Context Parallelism (DCP), rank'ler arasında doğru toplama için softmax LSE gerektirdiğinden FlashMLA ile DCP şu anda desteklenmez ve vLLM'de çalışma zamanı hatasına yol açar. Bu sınırlama vLLM deposunda tartışılmıştır (issue #27544).

MTP

Model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 \
--speculative-config {"method":"mtp","num_speculative_tokens":1}

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.13
Total input tokens:                      219111
Total generated tokens:                  197345
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2626.63
Peak output token throughput (tok/s):    3940.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5542.96
---------------Time to First Token----------------
Mean TTFT (ms):                          11110.51
Median TTFT (ms):                        10739.31
P99 TTFT (ms):                           21886.92
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          291.48
Median TPOT (ms):                        250.14
P99 TPOT (ms):                           735.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           290.48
Median ITL (ms):                         144.81
P99 ITL (ms):                            4636.00
==================================================

vLLM için DeepGEMM'i devre dışı bırakma

Model sunum betiği

export VLLM_USE_DEEP_GEMM=0
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.92
Total input tokens:                      219111
Total generated tokens:                  197222
Request throughput (req/s):              13.35
Output token throughput (tok/s):         2632.38
Peak output token throughput (tok/s):    6010.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5556.92
---------------Time to First Token----------------
Mean TTFT (ms):                          11250.21
Median TTFT (ms):                        10762.25
P99 TTFT (ms):                           20723.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.49
Median TPOT (ms):                        188.99
P99 TPOT (ms):                           667.67
---------------Inter-token Latency----------------
Mean ITL (ms):                           140.98
Median ITL (ms):                         83.88
P99 ITL (ms):                            671.43
==================================================

Araç çağrısı yapılandırmasını etkinleştirme

Model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --tool-call-parser deepseek_v32 --enable-auto-tool-choice

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  74.16
Total input tokens:                      219111
Total generated tokens:                  197012
Request throughput (req/s):              13.48
Output token throughput (tok/s):         2656.40
Peak output token throughput (tok/s):    6095.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5610.78
---------------Time to First Token----------------
Mean TTFT (ms):                          13648.83
Median TTFT (ms):                        13557.38
P99 TTFT (ms):                           23498.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          280.78
Median TPOT (ms):                        176.29
P99 TPOT (ms):                           677.36
---------------Inter-token Latency----------------
Mean ITL (ms):                           132.99
Median ITL (ms):                         82.69
P99 ITL (ms):                            683.11
==================================================

Bağlam uzunluğu ayarı

Model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3 --max-model-len 32768

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  75.12
Total input tokens:                      219111
Total generated tokens:                  196938
Request throughput (req/s):              13.31
Output token throughput (tok/s):         2621.48
Peak output token throughput (tok/s):    6293.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5538.11
---------------Time to First Token----------------
Mean TTFT (ms):                          10439.14
Median TTFT (ms):                        10296.60
P99 TTFT (ms):                           23842.17
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          357.68
Median TPOT (ms):                        223.35
P99 TPOT (ms):                           1169.74
---------------Inter-token Latency----------------
Mean ITL (ms):                           154.24
Median ITL (ms):                         78.13
P99 ITL (ms):                            660.95
==================================================

Dikkat arka ucu: CUTLASS_MLA

Model sunum betiği

export VLLM_ATTENTION_BACKEND="CUTLASS_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.CUTLASS_MLA is not valid for this configuration. Reason: ['sparse not supported', 'compute capability not supported']

Dikkat arka ucu: FLASHMLA

Model sunum betiği

export VLLM_ATTENTION_BACKEND="FLASHMLA"

ValueError: Selected backend AttentionBackendEnum.FLASHMLA is not valid for this configuration. Reason: ['sparse not supported']

Dikkat arka ucu: TRITON_MLA

Model sunum betiği

export VLLM_ATTENTION_BACKEND="TRITON_MLA"
vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

ValueError: Selected backend AttentionBackendEnum.TRITON_MLA is not valid for this configuration. Reason: ['sparse not supported']

3. Optimizasyon: SGLang

Paralellik: TP+DP Attention

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --enable-dp-attention

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  99.46
Total input tokens:                      219111
Total generated tokens:                  197633
Request throughput (req/s):              10.05
Output token throughput (tok/s):         1987.11
Peak output token throughput (tok/s):    8911.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          4190.17
---------------Time to First Token----------------
Mean TTFT (ms):                          13679.11
Median TTFT (ms):                        12663.74
P99 TTFT (ms):                           21665.97
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          608.90
Median TPOT (ms):                        398.19
P99 TPOT (ms):                           3453.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           230.03
Median ITL (ms):                         59.95
P99 ITL (ms):                            1824.84
==================================================

Paralellik: TP+DP+DP Attention

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  56.62
Total input tokens:                      219111
Total generated tokens:                  197116
Request throughput (req/s):              17.66
Output token throughput (tok/s):         3481.55
Peak output token throughput (tok/s):    11298.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7351.59
---------------Time to First Token----------------
Mean TTFT (ms):                          7815.00
Median TTFT (ms):                        8024.81
P99 TTFT (ms):                           12928.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          287.86
Median TPOT (ms):                        107.58
P99 TPOT (ms):                           2096.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           91.68
Median ITL (ms):                         58.87
P99 ITL (ms):                            317.43
==================================================

Paralellik: TP+DP+DP Attention+EP

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention --ep-size 8

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  57.14
Total input tokens:                      219111
Total generated tokens:                  197614
Request throughput (req/s):              17.50
Output token throughput (tok/s):         3458.68
Peak output token throughput (tok/s):    11757.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          7293.61
---------------Time to First Token----------------
Mean TTFT (ms):                          8437.36
Median TTFT (ms):                        8346.50
P99 TTFT (ms):                           15410.07
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          319.46
Median TPOT (ms):                        111.65
P99 TPOT (ms):                           2443.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           94.48
Median ITL (ms):                         56.54
P99 ITL (ms):                            451.92
==================================================

MTP

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--tp-size 8 \
--speculative-algorithm EAGLE --speculative-num-steps 1 --speculative-eagle-topk 1 --speculative-num-draft-tokens 2

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  278.36
Total input tokens:                      219111
Total generated tokens:                  193349
Request throughput (req/s):              3.59
Output token throughput (tok/s):         694.61
Peak output token throughput (tok/s):    974.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          1481.77
---------------Time to First Token----------------
Mean TTFT (ms):                          139046.94
Median TTFT (ms):                        144733.94
P99 TTFT (ms):                           260932.68
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          68.88
Median TPOT (ms):                        63.31
P99 TPOT (ms):                           280.02
---------------Inter-token Latency----------------
Mean ITL (ms):                           115.50
Median ITL (ms):                         48.42
P99 ITL (ms):                            337.68
==================================================

DeepGEMM'i devre dışı bırakma

Model sunum betiği

export SGLANG_ENABLE_JIT_DEEPGEMM=0
python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8

DeepGEMM devre dışı bırakıldığında sunucu başlatılamaz.

Araç çağrısı yapılandırmasını etkinleştirme

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.70
Total input tokens:                      219111
Total generated tokens:                  197192
Request throughput (req/s):              20.12
Output token throughput (tok/s):         3967.70
Peak output token throughput (tok/s):    13083.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8376.43
---------------Time to First Token----------------
Mean TTFT (ms):                          6577.70
Median TTFT (ms):                        6815.18
P99 TTFT (ms):                           11936.83
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          250.64
Median TPOT (ms):                        95.20
P99 TPOT (ms):                           1825.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           81.42
Median ITL (ms):                         53.51
P99 ITL (ms):                            269.50
==================================================

Bağlam uzunluğu ayarı

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  47.60
Total input tokens:                      219111
Total generated tokens:                  197380
Request throughput (req/s):              21.01
Output token throughput (tok/s):         4146.96
Peak output token throughput (tok/s):    12798.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8750.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5615.34
Median TTFT (ms):                        5448.81
P99 TTFT (ms):                           10053.28
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          214.05
Median TPOT (ms):                        87.57
P99 TPOT (ms):                           1553.18
---------------Inter-token Latency----------------
Mean ITL (ms):                           76.04
Median ITL (ms):                         54.16
P99 ITL (ms):                            210.36
==================================================

KV önbelleği veri türü

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--kv-cache-dtype fp8_e4m3

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  49.00
Total input tokens:                      219111
Total generated tokens:                  197078
Request throughput (req/s):              20.41
Output token throughput (tok/s):         4022.27
Peak output token throughput (tok/s):    12674.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8494.23
---------------Time to First Token----------------
Mean TTFT (ms):                          5472.04
Median TTFT (ms):                        5289.41
P99 TTFT (ms):                           9731.02
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          213.50
Median TPOT (ms):                        92.04
P99 TPOT (ms):                           1471.85
---------------Inter-token Latency----------------
Mean ITL (ms):                           79.15
Median ITL (ms):                         58.50
P99 ITL (ms):                            100.53
==================================================

Dikkat arka ucu: fa3 + fa3

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  46.37
Total input tokens:                      219111
Total generated tokens:                  196786
Request throughput (req/s):              21.56
Output token throughput (tok/s):         4243.46
Peak output token throughput (tok/s):    13860.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          8968.32
---------------Time to First Token----------------
Mean TTFT (ms):                          5303.50
Median TTFT (ms):                        5145.47
P99 TTFT (ms):                           9366.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          203.05
Median TPOT (ms):                        85.23
P99 TPOT (ms):                           1399.48
---------------Inter-token Latency----------------
Mean ITL (ms):                           74.03
Median ITL (ms):                         53.86
P99 ITL (ms):                            177.03
==================================================

Dikkat arka ucu: flashmla_sparse + flashmla_kv

Model sunum betiği

python3 -m sglang.launch_server --model-path deepseek-ai/DeepSeek-V3.2 --host 0.0.0.0 --port 8000 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 \
--enable-dp-attention \
--dp 8 \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend flashmla_sparse \
--nsa-decode-backend flashmla_kv

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  77.68
Total input tokens:                      219111
Total generated tokens:                  197443
Request throughput (req/s):              12.87
Output token throughput (tok/s):         2541.62
Peak output token throughput (tok/s):    8352.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          5362.16
---------------Time to First Token----------------
Mean TTFT (ms):                          4811.25
Median TTFT (ms):                        4727.17
P99 TTFT (ms):                           9086.60
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          260.25
Median TPOT (ms):                        128.33
P99 TPOT (ms):                           1625.53
---------------Inter-token Latency----------------
Mean ITL (ms):                           114.47
Median ITL (ms):                         91.44
P99 ITL (ms):                            256.14
==================================================

4. Optimizasyon: TensorRT-LLM

Paralellik: TP+EP

Model sunum betiği

trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  142.99
Total input tokens:                      216405
Total generated tokens:                  195740
Request throughput (req/s):              6.88
Output token throughput (tok/s):         1368.90
Peak output token throughput (tok/s):    4635.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          2882.32
---------------Time to First Token----------------
Mean TTFT (ms):                          24155.45
Median TTFT (ms):                        23945.42
P99 TTFT (ms):                           45683.09
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          561.24
Median TPOT (ms):                        312.75
P99 TPOT (ms):                           1473.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           248.40
Median ITL (ms):                         142.18
P99 ITL (ms):                            1819.83
==================================================

DeepGEMM'i devre dışı bırakma

Model sunum betiği

export TRTLLM_DG_ENABLED=0
trtllm-serve /workspace/DeepSeek-v3.2 --tp_size 8 --ep_size 8 --pp_size 1

Benchmark sonucu

============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  134.65
Total input tokens:                      216484
Total generated tokens:                  194509
Request throughput (req/s):              7.31
Output token throughput (tok/s):         1444.56
Peak output token throughput (tok/s):    4661.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          3052.33
---------------Time to First Token----------------
Mean TTFT (ms):                          23229.65
Median TTFT (ms):                        23100.28
P99 TTFT (ms):                           44648.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          541.07
Median TPOT (ms):                        264.04
P99 TPOT (ms):                           1588.04
---------------Inter-token Latency----------------
Mean ITL (ms):                           226.30
Median ITL (ms):                         137.80
P99 ITL (ms):                            1624.47
==================================================

Optimizasyon seçeneklerinin özeti

Optimizasyon seçeneği	İşlem hacmi iyileşmesi
Paralellik	+28.66%
Araç çağrısı yapılandırması	+13.94%
Bağlam uzunluğu ayarı	+4.47%
Dikkat arka ucu	+2.49%
KV önbelleği veri türü	-
MTP	-
DeepGEMM	-
Toplam (temel yapılandırmaya göre)	+56.97%

Diğer benchmark senaryoları

Optimize edilmiş yapılandırmanın farklı iş yüklerine genellenebilirliğini değerlendirmek için ek benchmark testleri yaptık.

Temel model sunum betiği

vllm serve deepseek-ai/DeepSeek-V3.2 -tp 8 --tokenizer-mode deepseek_v32 --reasoning-parser deepseek_v3

Temel benchmark sonuçları

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     1000
Benchmark duration (s):                  13.11
Total input tokens:                      128000
Total generated tokens:                  4000
Request throughput (req/s):              76.30
Output token throughput (tok/s):         305.20
Peak output token throughput (tok/s):    1029.00
Peak concurrent requests:                1000.00
Total Token throughput (tok/s):          10071.49
---------------Time to First Token----------------
Mean TTFT (ms):                          5786.15
Median TTFT (ms):                        4666.02
P99 TTFT (ms):                           12922.46
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          781.80
Median TPOT (ms):                        687.63
P99 TPOT (ms):                           1637.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           586.79
Median ITL (ms):                         664.73
P99 ITL (ms):                            3545.51
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  96.10
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              5.20
Output token throughput (tok/s):         520.27
Peak output token throughput (tok/s):    4085.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          10925.59
---------------Time to First Token----------------
Mean TTFT (ms):                          45667.57
Median TTFT (ms):                        43997.53
P99 TTFT (ms):                           87384.57
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          354.59
Median TPOT (ms):                        433.59
P99 TPOT (ms):                           452.30
---------------Inter-token Latency----------------
Mean ITL (ms):                           353.26
Median ITL (ms):                         68.59
P99 ITL (ms):                            661.87
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  210.54
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              2.37
Output token throughput (tok/s):         474.96
Peak output token throughput (tok/s):    2769.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          9974.26
---------------Time to First Token----------------
Mean TTFT (ms):                          103386.88
Median TTFT (ms):                        97324.68
P99 TTFT (ms):                           200514.23
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          226.74
Median TPOT (ms):                        246.98
P99 TPOT (ms):                           275.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           228.79
Median ITL (ms):                         49.50
P99 ITL (ms):                            683.63
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  330.61
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.30
Output token throughput (tok/s):         30.25
Peak output token throughput (tok/s):    384.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          9709.27
---------------Time to First Token----------------
Mean TTFT (ms):                          164003.81
Median TTFT (ms):                        164174.93
P99 TTFT (ms):                           325134.01
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          472.52
Median TPOT (ms):                        512.36
P99 TPOT (ms):                           514.39
---------------Inter-token Latency----------------
Mean ITL (ms):                           477.69
Median ITL (ms):                         741.90
P99 ITL (ms):                            949.57
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  96.39
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.04
Output token throughput (tok/s):         2075.01
Peak output token throughput (tok/s):    2598.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3112.52
---------------Time to First Token----------------
Mean TTFT (ms):                          4789.20
Median TTFT (ms):                        4590.83
P99 TTFT (ms):                           10608.88
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          45.72
Median TPOT (ms):                        45.83
P99 TPOT (ms):                           47.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           46.34
Median ITL (ms):                         43.13
P99 ITL (ms):                            44.29
==================================================

Optimize edilmiş model sunum betiği

python3 -m sglang.launch_server --model deepseek-ai/DeepSeek-V3.2 \
--chat-template ./tool_chat_template_deepseekv32.jinja \
--tp-size 8 --dp-size 8 --enable-dp-attention \
--reasoning-parser deepseek-v3 \
--tool-call-parser deepseekv32 \
--context-length=32768 \
--attention-backend nsa \
--nsa-prefill-backend fa3 \
--nsa-decode-backend fa3

Optimize edilmiş benchmark sonuçları

# random 128 input
============ Serving Benchmark Result ============
Successful requests:                     984
Benchmark duration (s):                  7.13
Total input tokens:                      125952
Total generated tokens:                  3936
Request throughput (req/s):              138.09
Output token throughput (tok/s):         552.34
Peak output token throughput (tok/s):    2526.00
Peak concurrent requests:                984.00
Total Token throughput (tok/s):          18227.38
---------------Time to First Token----------------
Mean TTFT (ms):                          4441.81
Median TTFT (ms):                        4685.89
P99 TTFT (ms):                           6735.22
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          776.55
Median TPOT (ms):                        714.97
P99 TPOT (ms):                           1659.07
---------------Inter-token Latency----------------
Mean ITL (ms):                           465.93
Median ITL (ms):                         59.97
P99 ITL (ms):                            4564.16
==================================================


# random 2K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  37.89
Total input tokens:                      1000000
Total generated tokens:                  50000
Request throughput (req/s):              13.20
Output token throughput (tok/s):         1319.64
Peak output token throughput (tok/s):    9477.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          27712.54
---------------Time to First Token----------------
Mean TTFT (ms):                          18696.78
Median TTFT (ms):                        18939.89
P99 TTFT (ms):                           32138.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          192.24
Median TPOT (ms):                        189.20
P99 TPOT (ms):                           349.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           189.18
Median ITL (ms):                         55.05
P99 ITL (ms):                            219.74
==================================================


# random 4K input
============ Serving Benchmark Result ============
Successful requests:                     500
Benchmark duration (s):                  102.21
Total input tokens:                      2000000
Total generated tokens:                  100000
Request throughput (req/s):              4.89
Output token throughput (tok/s):         978.37
Peak output token throughput (tok/s):    7180.00
Peak concurrent requests:                500.00
Total Token throughput (tok/s):          20545.67
---------------Time to First Token----------------
Mean TTFT (ms):                          44019.81
Median TTFT (ms):                        40806.24
P99 TTFT (ms):                           90171.38
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          177.95
Median TPOT (ms):                        161.14
P99 TPOT (ms):                           321.10
---------------Inter-token Latency----------------
Mean ITL (ms):                           177.57
Median ITL (ms):                         49.55
P99 ITL (ms):                            224.52
==================================================


# random 32k input
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  160.14
Total input tokens:                      3200000
Total generated tokens:                  10000
Request throughput (req/s):              0.62
Output token throughput (tok/s):         62.45
Peak output token throughput (tok/s):    1189.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          20045.18
---------------Time to First Token----------------
Mean TTFT (ms):                          83964.72
Median TTFT (ms):                        88265.70
P99 TTFT (ms):                           157005.30
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          246.26
Median TPOT (ms):                        229.67
P99 TPOT (ms):                           514.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           244.63
Median ITL (ms):                         33.21
P99 ITL (ms):                            898.58
==================================================


1k random input + 2k generation
============ Serving Benchmark Result ============
Successful requests:                     100
Benchmark duration (s):                  80.99
Total input tokens:                      100000
Total generated tokens:                  200000
Request throughput (req/s):              1.23
Output token throughput (tok/s):         2469.32
Peak output token throughput (tok/s):    2800.00
Peak concurrent requests:                100.00
Total Token throughput (tok/s):          3703.98
---------------Time to First Token----------------
Mean TTFT (ms):                          2103.54
Median TTFT (ms):                        2216.52
P99 TTFT (ms):                           3514.77
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          39.45
Median TPOT (ms):                        39.40
P99 TPOT (ms):                           40.17
---------------Inter-token Latency----------------
Mean ITL (ms):                           40.56
Median ITL (ms):                         38.90
P99 ITL (ms):                            43.63
==================================================
