NVIDIA H100 GPU 上での Qwen3-8B のレイテンシー最適化

結論

H100 GPU 上で Qwen3-8B のレイテンシーを最適化するための推奨設定：

推論サービスのコマンド

python3 -m sglang.launch_server \
    --model Qwen/Qwen3-8B-FP8 \
    --speculative-algorithm EAGLE3 \
    --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 \
    --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16

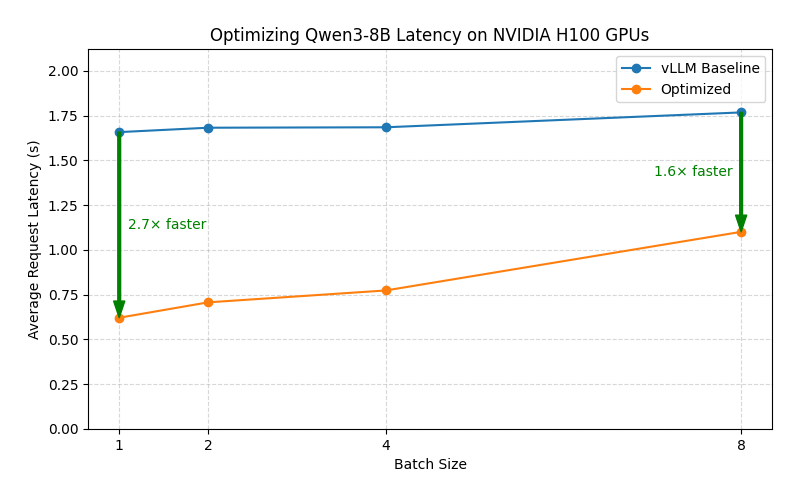

最適化前後のベンチマーク結果の比較：

ベンチマークケース	基準設定（最適化なしの vLLM）	最適化後
ShareGPT BS=1	平均レイテンシー： 1.66s/req	平均レイテンシー： 0.62s/req (2.7x 高速)
ShareGPT BS=2	平均レイテンシー： 1.68s/req	平均レイテンシー： 0.71s/req (2.4x 高速)
ShareGPT BS=4	平均レイテンシー： 1.68s/req	平均レイテンシー： 0.77s/req (2.2x 高速)
ShareGPT BS=8	平均レイテンシー： 1.78s/req	平均レイテンシー： 1.10s/req (1.6x 高速)

注記

本ベンチマークは、考えられるすべての最適化の組み合わせを網羅していません。たとえば、デフォルト設定で最も性能が高い推論エンジンを選び、それを追加調整の出発点としています。このような候補の絞り込みで得られるのは局所最適解であり、大域最適解とは限りません。
最大バッチサイズ、スケジューリング設定、拡張 KV キャッシュ、CUDA graph など、利用シナリオに応じた最適化もあります。本書の結論は、用途に合わせてさらに最適化するための出発点として利用できます。
本テストは特定のハードウェアとソフトウェアの構成で実施しています。推論エンジンの進化により、結論が変わる可能性があります。
量子化は精度に影響する場合がありますが、多くのモデルでは FP8 量子化による精度低下は 1% 未満です。詳細は評価結果を参照してください。そのため、低レイテンシーでのモデル提供には FP8 量子化を強く推奨します。
投機的デコーディングは、低並列度のリクエストのレイテンシーを大きく短縮できます。ただし、ベンチマークデータセットの分布やドラフトモデルの選択によって効果が異なります。たとえば、ここで選んだドラフトモデルは英語データで学習されているため、他の言語では十分な性能が得られない場合があります。

記載漏れや最新の変更を反映すべき点があれば、お知らせください。

最適化の目標

低並列度（バッチサイズ < 8）のリクエストで低レイテンシーを実現します。

実験環境

モデル

Qwen/Qwen3-8B

ハードウェア

単一の NVIDIA H100 SXM GPU。

エンジンのバージョン

vLLM: v0.11.0
SGLang: v0.5.3.post3
TensorRT-LLM: v1.2.0rc1

ベンチマークデータセット

ShareGPT

ベンチマークスクリプト

モデルの性能評価には vLLM bench CLI ツールを使用します。ベンチマークを実行するコマンドは次のとおりです：

# Prepare the ShareGPT dataset
wget https://huggingface.co/datasets/anon8231489123/ShareGPT_Vicuna_unfiltered/resolve/main/ShareGPT_V3_unfiltered_cleaned_split.json

# Benchmark on ShareGPT dataset
vllm bench serve --model Qwen/Qwen3-8B --backend openai-chat --endpoint /v1/chat/completions --dataset-name sharegpt --dataset-path ShareGPT_V3_unfiltered_cleaned_split.json --num-prompts 100 --max-concurrency 4

実験結果

1. 推論エンジンの選択

vLLM

推論サービスのスクリプト

1	`vllm serve Qwen/Qwen3-8B`

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  44.40
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.25
Output token throughput (tok/s):         496.88
Peak output token throughput (tok/s):    540.00
Peak concurrent requests:                13.00
Total Token throughput (tok/s):          1020.76
---------------Time to First Token----------------
Mean TTFT (ms):                          64.00
Median TTFT (ms):                        60.26
P99 TTFT (ms):                           98.59
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.38
Median TPOT (ms):                        7.40
P99 TPOT (ms):                           7.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.78
Median ITL (ms):                         7.37
P99 ITL (ms):                            40.98
==================================================

SGLang

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  41.97
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.38
Output token throughput (tok/s):         525.59
Peak output token throughput (tok/s):    572.00
Peak concurrent requests:                12.00
Total Token throughput (tok/s):          1079.74
---------------Time to First Token----------------
Mean TTFT (ms):                          27.70
Median TTFT (ms):                        27.25
P99 TTFT (ms):                           43.35
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.19
Median TPOT (ms):                        7.14
P99 TPOT (ms):                           7.90
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.08
Median ITL (ms):                         7.04
P99 ITL (ms):                            11.48
==================================================

TensorRT-LLM

推論サービスのスクリプト

1	`trtllm-serve Qwen/Qwen3-8B`

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  45.26
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.21
Output token throughput (tok/s):         487.38
Peak output token throughput (tok/s):    541.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1001.25
---------------Time to First Token----------------
Mean TTFT (ms):                          51.61
Median TTFT (ms):                        45.46
P99 TTFT (ms):                           134.71
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.67
Median TPOT (ms):                        7.58
P99 TPOT (ms):                           10.15
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.59
Median ITL (ms):                         7.41
P99 ITL (ms):                            24.38
==================================================

リクエストあたりの平均レイテンシー：SGLang(1.61 s) < vLLM (1.68 s) > TensorRT-LLM (1.74 s)

2. CUDA graph の最大バッチサイズ：SGLang

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B --cuda-graph-max-bs 8

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  42.04
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.38
Output token throughput (tok/s):         524.71
Peak output token throughput (tok/s):    572.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1077.94
---------------Time to First Token----------------
Mean TTFT (ms):                          28.46
Median TTFT (ms):                        27.35
P99 TTFT (ms):                           39.82
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.20
Median TPOT (ms):                        7.15
P99 TPOT (ms):                           8.13
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.09
Median ITL (ms):                         7.04
P99 ITL (ms):                            11.56
==================================================

3. 量子化

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B-FP8

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  33.54
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.98
Output token throughput (tok/s):         657.83
Peak output token throughput (tok/s):    741.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1351.41
---------------Time to First Token----------------
Mean TTFT (ms):                          39.66
Median TTFT (ms):                        33.38
P99 TTFT (ms):                           134.98
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          5.65
Median TPOT (ms):                        5.58
P99 TPOT (ms):                           7.35
---------------Inter-token Latency----------------
Mean ITL (ms):                           5.58
Median ITL (ms):                         5.39
P99 ITL (ms):                            22.20
==================================================

4. アテンションバックエンド

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B-FP8 --attention-backend triton

ベンチマーク結果

# triton
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  34.73
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.88
Output token throughput (tok/s):         635.15
Peak output token throughput (tok/s):    744.00
Peak concurrent requests:                10.00
Total Token throughput (tok/s):          1304.82
---------------Time to First Token----------------
Mean TTFT (ms):                          60.18
Median TTFT (ms):                        43.84
P99 TTFT (ms):                           493.14
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          5.77
Median TPOT (ms):                        5.63
P99 TPOT (ms):                           7.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           5.71
Median ITL (ms):                         5.40
P99 ITL (ms):                            28.58
==================================================

# flashinfer
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  39.63
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.52
Output token throughput (tok/s):         556.61
Peak output token throughput (tok/s):    728.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1143.47
---------------Time to First Token----------------
Mean TTFT (ms):                          269.33
Median TTFT (ms):                        40.70
P99 TTFT (ms):                           5700.99
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          5.71
Median TPOT (ms):                        5.63
P99 TPOT (ms):                           7.44
---------------Inter-token Latency----------------
Mean ITL (ms):                           5.65
Median ITL (ms):                         5.40
P99 ITL (ms):                            28.71
==================================================

5. 投機的デコーディング

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B-FP8 \
    --speculative-algorithm EAGLE3 \
    --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 \
    --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16

ベンチマーク結果

# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  22.53
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.44
Output token throughput (tok/s):         979.24
Peak output token throughput (tok/s):    393.00
Peak concurrent requests:                15.00
Total Token throughput (tok/s):          2011.70
---------------Time to First Token----------------
Mean TTFT (ms):                          50.70
Median TTFT (ms):                        43.71
P99 TTFT (ms):                           368.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.75
Median TPOT (ms):                        3.32
P99 TPOT (ms):                           9.63
---------------Inter-token Latency----------------
Mean ITL (ms):                           11.05
Median ITL (ms):                         9.86
P99 ITL (ms):                            38.76
==================================================

# --speculative-algorithm EAGLE3 --speculative-draft-model-path AngelSlim/Qwen3-8B_eagle3 --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  26.89
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              3.72
Output token throughput (tok/s):         820.28
Peak output token throughput (tok/s):    404.00
Peak concurrent requests:                13.00
Total Token throughput (tok/s):          1685.15
---------------Time to First Token----------------
Mean TTFT (ms):                          44.60
Median TTFT (ms):                        44.68
P99 TTFT (ms):                           78.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          4.45
Median TPOT (ms):                        4.40
P99 TPOT (ms):                           7.91
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.49
Median ITL (ms):                         9.88
P99 ITL (ms):                            38.17
==================================================

# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 2 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  24.16
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.14
Output token throughput (tok/s):         913.20
Peak output token throughput (tok/s):    433.00
Peak concurrent requests:                12.00
Total Token throughput (tok/s):          1876.03
---------------Time to First Token----------------
Mean TTFT (ms):                          49.89
Median TTFT (ms):                        44.38
P99 TTFT (ms):                           277.15
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.98
Median TPOT (ms):                        3.74
P99 TPOT (ms):                           7.81
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.82
Median ITL (ms):                         8.86
P99 ITL (ms):                            38.40
==================================================
# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 8 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  27.17
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              3.68
Output token throughput (tok/s):         811.85
Peak output token throughput (tok/s):    336.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1667.83
---------------Time to First Token----------------
Mean TTFT (ms):                          64.58
Median TTFT (ms):                        56.79
P99 TTFT (ms):                           366.49
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          4.27
Median TPOT (ms):                        4.00
P99 TPOT (ms):                           8.41
---------------Inter-token Latency----------------
Mean ITL (ms):                           13.94
Median ITL (ms):                         12.20
P99 ITL (ms):                            63.04
==================================================
# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 4 --speculative-eagle-topk 8 --speculative-num-draft-tokens 16
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  22.72
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.40
Output token throughput (tok/s):         971.03
Peak output token throughput (tok/s):    382.00
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          1994.83
---------------Time to First Token----------------
Mean TTFT (ms):                          49.08
Median TTFT (ms):                        36.31
P99 TTFT (ms):                           335.43
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.62
Median TPOT (ms):                        3.36
P99 TPOT (ms):                           9.61
---------------Inter-token Latency----------------
Mean ITL (ms):                           11.24
Median ITL (ms):                         10.14
P99 ITL (ms):                            41.05
==================================================

# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 32
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  22.68
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.41
Output token throughput (tok/s):         972.69
Peak output token throughput (tok/s):    354.00
Peak concurrent requests:                15.00
Total Token throughput (tok/s):          1998.25
---------------Time to First Token----------------
Mean TTFT (ms):                          50.97
Median TTFT (ms):                        40.01
P99 TTFT (ms):                           361.52
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.54
Median TPOT (ms):                        3.38
P99 TPOT (ms):                           7.82
---------------Inter-token Latency----------------
Mean ITL (ms):                           11.90
Median ITL (ms):                         10.67
P99 ITL (ms):                            40.09
==================================================


# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 8
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  23.94
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.18
Output token throughput (tok/s):         921.47
Peak output token throughput (tok/s):    399.00
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          1893.03
---------------Time to First Token----------------
Mean TTFT (ms):                          47.83
Median TTFT (ms):                        45.01
P99 TTFT (ms):                           255.59
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.71
Median TPOT (ms):                        3.59
P99 TPOT (ms):                           6.20
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.71
Median ITL (ms):                         9.78
P99 ITL (ms):                            39.48
==================================================

# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 --speculative-num-steps 2 --speculative-eagle-topk 1 --speculative-num-draft-tokens 4
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  26.70
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              3.75
Output token throughput (tok/s):         826.28
Peak output token throughput (tok/s):    521.00
Peak concurrent requests:                12.00
Total Token throughput (tok/s):          1697.47
---------------Time to First Token----------------
Mean TTFT (ms):                          56.09
Median TTFT (ms):                        44.66
P99 TTFT (ms):                           327.69
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          4.37
Median TPOT (ms):                        4.10
P99 TPOT (ms):                           7.78
---------------Inter-token Latency----------------
Mean ITL (ms):                           8.78
Median ITL (ms):                         7.62
P99 ITL (ms):                            48.17
==================================================

# --speculative-algorithm EAGLE3 --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  25.80
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              3.88
Output token throughput (tok/s):         854.98
Peak output token throughput (tok/s):    392.00
Peak concurrent requests:                11.00
Total Token throughput (tok/s):          1756.43
---------------Time to First Token----------------
Mean TTFT (ms):                          53.61
Median TTFT (ms):                        45.08
P99 TTFT (ms):                           374.04
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          4.07
Median TPOT (ms):                        3.68
P99 TPOT (ms):                           12.12
---------------Inter-token Latency----------------
Mean ITL (ms):                           11.69
Median ITL (ms):                         10.35
P99 ITL (ms):                            40.08
==================================================

6. Torch.compile

推論サービスのスクリプト

python3 -m sglang.launch_server --model-path Qwen/Qwen3-8B-FP8 \
  --enable-torch-compile \
  --speculative-algorithm EAGLE3 \
  --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 \
  --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16

ベンチマーク結果

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  23.14
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.32
Output token throughput (tok/s):         953.40
Peak output token throughput (tok/s):    386.00
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          1958.61
---------------Time to First Token----------------
Mean TTFT (ms):                          54.86
Median TTFT (ms):                        45.34
P99 TTFT (ms):                           410.48
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.53
Median TPOT (ms):                        3.30
P99 TPOT (ms):                           9.67
---------------Inter-token Latency----------------
Mean ITL (ms):                           11.38
Median ITL (ms):                         9.96
P99 ITL (ms):                            41.21
==================================================

最適化項目の一覧

最適化項目	スループット改善率
エンジンの選択	+4.3%
量子化	+25.8%
投機的デコーディング	+66.2%
CUDA graph の最大バッチサイズ	-
アテンションバックエンド	-
Torch.compile	-

その他のベンチマークケース

さらに、バッチサイズを変えて最適化済み設定のベンチマークを実施しました。

基準設定の推論スクリプト

1	`vllm serve Qwen/Qwen3-8B`

基準設定のベンチマーク結果

# BS=1
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             1
Benchmark duration (s):                  166.04
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              0.60
Output token throughput (tok/s):         132.86
Peak output token throughput (tok/s):    140.00
Peak concurrent requests:                5.00
Total Token throughput (tok/s):          272.95
---------------Time to First Token----------------
Mean TTFT (ms):                          59.01
Median TTFT (ms):                        60.38
P99 TTFT (ms):                           73.49
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.28
Median TPOT (ms):                        7.22
P99 TPOT (ms):                           7.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.26
Median ITL (ms):                         7.23
P99 ITL (ms):                            8.17
==================================================

# BS=2
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             2
Benchmark duration (s):                  85.78
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              1.17
Output token throughput (tok/s):         257.19
Peak output token throughput (tok/s):    277.00
Peak concurrent requests:                7.00
Total Token throughput (tok/s):          528.35
---------------Time to First Token----------------
Mean TTFT (ms):                          63.78
Median TTFT (ms):                        64.78
P99 TTFT (ms):                           93.70
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.37
Median TPOT (ms):                        7.30
P99 TPOT (ms):                           8.57
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.44
Median ITL (ms):                         7.28
P99 ITL (ms):                            8.75
==================================================

# BS=4
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  44.40
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.25
Output token throughput (tok/s):         496.88
Peak output token throughput (tok/s):    540.00
Peak concurrent requests:                13.00
Total Token throughput (tok/s):          1020.76
---------------Time to First Token----------------
Mean TTFT (ms):                          64.00
Median TTFT (ms):                        60.26
P99 TTFT (ms):                           98.59
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.38
Median TPOT (ms):                        7.40
P99 TPOT (ms):                           7.96
---------------Inter-token Latency----------------
Mean ITL (ms):                           7.78
Median ITL (ms):                         7.37
P99 ITL (ms):                            40.98
==================================================

# BS=8
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             8
Benchmark duration (s):                  24.05
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.16
Output token throughput (tok/s):         917.28
Peak output token throughput (tok/s):    1039.00
Peak concurrent requests:                15.00
Total Token throughput (tok/s):          1884.42
---------------Time to First Token----------------
Mean TTFT (ms):                          74.57
Median TTFT (ms):                        60.77
P99 TTFT (ms):                           204.11
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          7.71
Median TPOT (ms):                        7.67
P99 TPOT (ms):                           8.19
---------------Inter-token Latency----------------
Mean ITL (ms):                           8.57
Median ITL (ms):                         7.63
P99 ITL (ms):                            45.48
==================================================

最適化後の推論スクリプト

python3 -m sglang.launch_server \
  --model Qwen/Qwen3-8B-FP8 \
  --speculative-algorithm EAGLE3 \
  --speculative-draft-model-path Tengyunw/qwen3_8b_eagle3 \
  --speculative-num-steps 4 --speculative-eagle-topk 4 --speculative-num-draft-tokens 16

最適化後のベンチマーク結果

# BS=1
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             1
Benchmark duration (s):                  65.82
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              1.52
Output token throughput (tok/s):         335.15
Peak output token throughput (tok/s):    112.00
Peak concurrent requests:                6.00
Total Token throughput (tok/s):          688.51
---------------Time to First Token----------------
Mean TTFT (ms):                          34.70
Median TTFT (ms):                        34.11
P99 TTFT (ms):                           40.56
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          2.67
Median TPOT (ms):                        2.63
P99 TPOT (ms):                           3.46
---------------Inter-token Latency----------------
Mean ITL (ms):                           8.74
Median ITL (ms):                         8.95
P99 ITL (ms):                            10.46
==================================================

# BS=2
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             2
Benchmark duration (s):                  37.62
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              2.66
Output token throughput (tok/s):         586.35
Peak output token throughput (tok/s):    210.00
Peak concurrent requests:                8.00
Total Token throughput (tok/s):          1204.57
---------------Time to First Token----------------
Mean TTFT (ms):                          39.41
Median TTFT (ms):                        41.19
P99 TTFT (ms):                           57.69
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.04
Median TPOT (ms):                        2.96
P99 TPOT (ms):                           5.41
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.69
Median ITL (ms):                         9.57
P99 ITL (ms):                            34.00
==================================================

# BS=4
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             4
Benchmark duration (s):                  21.09
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              4.74
Output token throughput (tok/s):         1046.22
Peak output token throughput (tok/s):    387.00
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          2149.30
---------------Time to First Token----------------
Mean TTFT (ms):                          39.93
Median TTFT (ms):                        41.92
P99 TTFT (ms):                           61.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          3.34
Median TPOT (ms):                        3.17
P99 TPOT (ms):                           5.61
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.54
Median ITL (ms):                         9.84
P99 ITL (ms):                            35.23
==================================================

# BS=8
============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             8
Benchmark duration (s):                  13.46
Total input tokens:                      23260
Total generated tokens:                  22061
Request throughput (req/s):              7.43
Output token throughput (tok/s):         1638.82
Peak output token throughput (tok/s):    655.00
Peak concurrent requests:                19.00
Total Token throughput (tok/s):          3366.71
---------------Time to First Token----------------
Mean TTFT (ms):                          42.27
Median TTFT (ms):                        43.26
P99 TTFT (ms):                           93.68
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          4.82
Median TPOT (ms):                        3.94
P99 TPOT (ms):                           21.36
---------------Inter-token Latency----------------
Mean ITL (ms):                           13.06
Median ITL (ms):                         10.94
P99 ITL (ms):                            37.37
==================================================
