Optimizing Qwen3.5-9B Throughput

Conclusion

Recommended configuration for optimizing throughput of Qwen/Qwen3.5-9B on NVIDIA H100 80GB HBM3:

Serving Command

vllm serve Qwen/Qwen3.5-9B \
    --reasoning-parser=qwen3 \
    --performance-mode=throughput \
    --max-model-len=32768 \
    --max-num-seqs=512

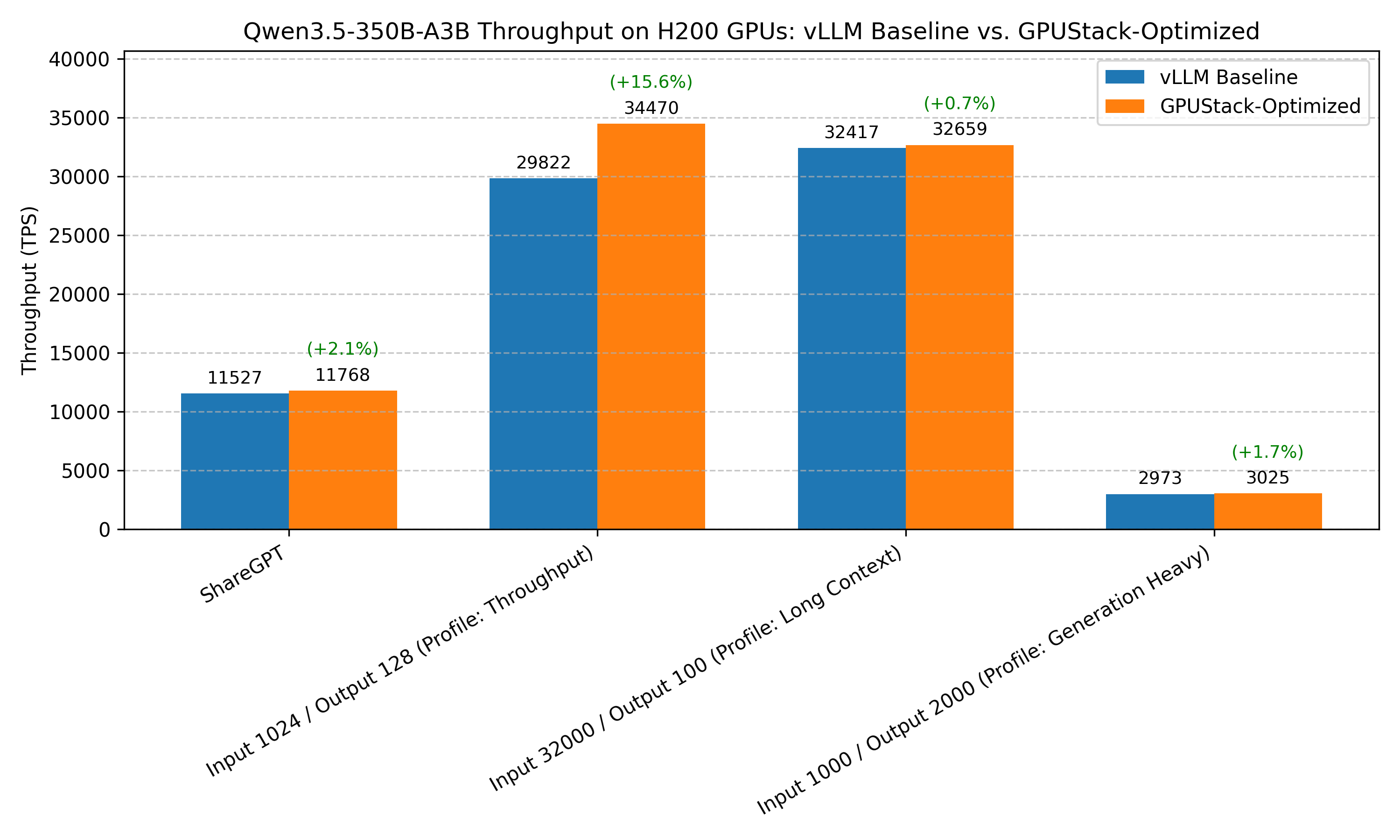

Comparison of benchmark results before and after optimization:

Benchmark Case	baseline (vLLM without any optimizations)	Optimized
ShareGPT Profile	Total TPS: 11527.14 Mean TPOT(ms): 15.12	Total TPS: 11768.22 (+2.09%) Mean TPOT(ms): 15.85
Throughput Profile	Total TPS: 29822.16 Mean TPOT(ms): 34.63	Total TPS: 34470.14 (+15.59%) Mean TPOT(ms): 36.97
Long Context Profile	Total TPS: 32416.84 Mean TPOT(ms): 10.21	Total TPS: 32658.73 (+0.75%) Mean TPOT(ms): 9.97
Generation Heavy Profile	Total TPS: 2973.42 Mean TPOT(ms): 0.33	Total TPS: 3025.11 (+1.74%) Mean TPOT(ms): 0.12

Note

Our benchmark tests do not cover all possible optimization combinations. For example, we select the inference engine that performs best under its default configuration as the starting point for further tuning. This pruning approach yields a local optimum, which may not be the global optimum.
There are other optimization methods that depend on specific user scenarios, including max batch size, schedule configuration, extended KV cache, CUDA graph, etc. The conclusions in this document can serve as a starting point for more targeted optimizations.
The tests are conducted on specific hardware and software setups. Advances in the inference engine may lead to new conclusions.
Although using quantization may impact accuracy. FP8 quantization can achieve less than 1% accuracy drop for most models. See the evaluation results for more details. Therefore, it is highly recommended to use FP8 quantization for low-latency serving scenarios.
Speculative decoding can significantly reduce latency for low-concurrency requests. However, the acceleration effect may vary depending on the data distribution of different benchmark datasets and the choice of draft models. For example, the chosen draft model here is trained on English data, which may lead to suboptimal performance on other languages.

If there are any missing points or updates reflecting new changes, please let us know.

Experimental Setup

Model

Qwen/Qwen3.5-9B

Hardware

NVIDIA H100 80GB HBM3

Engine Version

vLLM v0.17.1
SGLang v0.5.9

Benchmark Method

This project uses GPUStack's one-click benchmark capability for serving workloads. The benchmark tests in this document were executed with that workflow.

GPUStack's benchmark implementation is built on top of guidellm via the wrapper project benchmark-runner.

GPUStack handles model deployment, benchmark job submission, and result collection for the benchmark configurations listed below.

Benchmark Profiles

ShareGPT

dataset_name: ShareGPT
request_rate: 1000
total_requests: 1000

Throughput

dataset_name: Random
dataset_input_tokens: 1024
dataset_output_tokens: 128
dataset_seed: 42
request_rate: 1000
total_requests: 1000

Long Context

dataset_name: Random
dataset_input_tokens: 32000
dataset_output_tokens: 100
dataset_seed: 42
request_rate: 1
total_requests: 100

Generation Heavy

dataset_name: Random
dataset_input_tokens: 1000
dataset_output_tokens: 2000
dataset_seed: 42
request_rate: 1
total_requests: 200

Experiment Results

Choosing the Inference Engine

vLLM

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.74
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.27
Output token throughput (tok/s):         5202.94
Peak output token throughput (tok/s):    20132659.20
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11527.14
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.90
P99 Latency(s):                           51.16
---------------Time to First Token----------------
Mean TTFT (ms):                          1604.23
Median TTFT (ms):                        646.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5737.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.12
Median TPOT (ms):                        3.42
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.45
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            118.73
==================================================

SGLang

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--context-length=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  96.01
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              10.42
Output token throughput (tok/s):         2933.60
Peak output token throughput (tok/s):    92831.68
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          6499.41
----------------------Latency---------------------
Mean Latency(s):                          39.08
Median Latency(s):                        41.18
P99 Latency(s):                           74.40
---------------Time to First Token----------------
Mean TTFT (ms):                          26217.15
Median TTFT (ms):                        34401.34
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           41101.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          138.86
Median TPOT (ms):                        112.19
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           591.70
---------------Inter-token Latency----------------
Mean ITL (ms):                           45.86
Median ITL (ms):                         49.31
P95 ITL (ms):                            N/A
P99 ITL (ms):                            59.71
==================================================

Summary: vLLM Total TPS = 11527.14, SGLang Total TPS = 6499.41. vLLM is faster by 5027.72 tok/s (77.36%); Mean TPOT = 15.12 ms vs 138.86 ms, reduced by 123.74 ms (89.11%).

Prefix Cache

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--enable-prefix-caching
--max-model-len=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  56.47
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              17.71
Output token throughput (tok/s):         5066.42
Peak output token throughput (tok/s):    31242972.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11224.70
----------------------Latency---------------------
Mean Latency(s):                          24.90
Median Latency(s):                        22.40
P99 Latency(s):                           52.82
---------------Time to First Token----------------
Mean TTFT (ms):                          1995.45
Median TTFT (ms):                        1341.75
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           6549.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.66
Median TPOT (ms):                        5.21
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           130.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.60
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            120.90
==================================================

Speculative Decoding

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--speculative-config={"method":"mtp","num_speculative_tokens":4}
--max-model-len=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     514
Maximum request concurrency:             512
Benchmark duration (s):                  12.27
Total input tokens:                      23313
Total generated tokens:                  131530
Request throughput (req/s):              41.90
Output token throughput (tok/s):         12792.49
Peak output token throughput (tok/s):    13918875.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          15059.89
----------------------Latency---------------------
Mean Latency(s):                          11.77
Median Latency(s):                        11.81
P99 Latency(s):                           12.07
---------------Time to First Token----------------
Mean TTFT (ms):                          268.95
Median TTFT (ms):                        0.00
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           3010.96
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          42.50
Median TPOT (ms):                        31.35
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           214.99
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

Performance Mode

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.66
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.29
Output token throughput (tok/s):         5189.06
Peak output token throughput (tok/s):    30482939.47
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11496.39
----------------------Latency---------------------
Mean Latency(s):                          24.00
Median Latency(s):                        21.51
P95 Latency(s):                           N/A
P99 Latency(s):                           51.01
---------------Time to First Token----------------
Mean TTFT (ms):                          1824.24
Median TTFT (ms):                        982.10
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5550.00
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.41
Median TPOT (ms):                        4.53
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.10
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.96
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            115.72
==================================================

Max Num Seqs

Seqs 512

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=512

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.89
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.22
Output token throughput (tok/s):         5174.68
Peak output token throughput (tok/s):    21197768.76
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11464.53
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.96
P95 Latency(s):                           48.41
P99 Latency(s):                           51.17
---------------Time to First Token----------------
Mean TTFT (ms):                          1893.47
Median TTFT (ms):                        1233.85
P95 TTFT (ms):                           5659.91
P99 TTFT (ms):                           6222.94
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.18
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           91.71
P99 TPOT (ms):                           127.60
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.48
Median ITL (ms):                         0.00
P95 ITL (ms):                            83.92
P99 ITL (ms):                            116.65
==================================================

Seqs 1024

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=1024

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.87
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.23
Output token throughput (tok/s):         5205.42
Peak output token throughput (tok/s):    22885338.88
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11532.64
----------------------Latency---------------------
Mean Latency(s):                          24.15
Median Latency(s):                        21.71
P95 Latency(s):                           48.49
P99 Latency(s):                           51.24
---------------Time to First Token----------------
Mean TTFT (ms):                          1864.39
Median TTFT (ms):                        1137.51
P95 TTFT (ms):                           5803.37
P99 TTFT (ms):                           6125.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.87
Median TPOT (ms):                        4.70
P95 TPOT (ms):                           93.65
P99 TPOT (ms):                           127.45
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.28
Median ITL (ms):                         0.00
P95 ITL (ms):                            87.39
P99 ITL (ms):                            116.13
==================================================

Seqs 2048

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768
--max-num-seqs=2048

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.28
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.09
Output token throughput (tok/s):         5140.19
Peak output token throughput (tok/s):    23553347.13
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11388.13
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.16
P95 Latency(s):                           48.86
P99 Latency(s):                           51.63
---------------Time to First Token----------------
Mean TTFT (ms):                          1853.85
Median TTFT (ms):                        1166.25
P95 TTFT (ms):                           5543.84
P99 TTFT (ms):                           6126.03
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.91
Median TPOT (ms):                        4.35
P95 TPOT (ms):                           100.86
P99 TPOT (ms):                           129.26
---------------Inter-token Latency----------------
Mean ITL (ms):                           10.36
Median ITL (ms):                         0.00
P95 ITL (ms):                            94.30
P99 ITL (ms):                            118.29
==================================================

Summary: Seqs 1024 Total TPS = 11532.64, Seqs 2048 Total TPS = 11388.13. Seqs 1024 is faster by 144.51 tok/s (1.27%); Mean TPOT = 16.87 ms vs 16.91 ms, reduced by 0.04 ms (0.25%).

Max Batched Tokens && Performance Mode

24k

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=24576

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.56
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.33
Output token throughput (tok/s):         5196.51
Peak output token throughput (tok/s):    32356059.43
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11512.90
----------------------Latency---------------------
Mean Latency(s):                          23.98
Median Latency(s):                        21.78
P99 Latency(s):                           50.95
---------------Time to First Token----------------
Mean TTFT (ms):                          1870.77
Median TTFT (ms):                        1771.31
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5297.37
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.83
Median TPOT (ms):                        4.86
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           125.06
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.22
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            113.92
==================================================

32k

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.20
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.45
Output token throughput (tok/s):         5268.65
Peak output token throughput (tok/s):    29985425.61
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11672.72
----------------------Latency---------------------
Mean Latency(s):                          23.72
Median Latency(s):                        21.21
P99 Latency(s):                           50.44
---------------Time to First Token----------------
Mean TTFT (ms):                          1970.35
Median TTFT (ms):                        1344.71
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5206.15
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.53
Median TPOT (ms):                        5.04
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           125.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.56
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            111.59
==================================================

Summary: 32k Total TPS = 11672.72, 24k Total TPS = 11512.90. 32k is faster by 159.82 tok/s (1.39%); Mean TPOT = 16.53 ms vs 15.83 ms, increased by 0.70 ms (4.43% slower).

Max Num Seqs && Performance Mode

Max Num Seqs 256

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=256

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  57.32
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              17.45
Output token throughput (tok/s):         4973.66
Peak output token throughput (tok/s):    30062067.31
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11019.18
----------------------Latency---------------------
Mean Latency(s):                          23.57
Median Latency(s):                        22.86
P99 Latency(s):                           49.24
---------------Time to First Token----------------
Mean TTFT (ms):                          11061.67
Median TTFT (ms):                        14983.14
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           18807.73
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          44.58
Median TPOT (ms):                        31.66
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           229.02
---------------Inter-token Latency----------------
Mean ITL (ms):                           5.29
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            54.12
==================================================

Max Num Seqs 512

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  53.72
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.62
Output token throughput (tok/s):         5311.75
Peak output token throughput (tok/s):    23159852.52
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11768.22
----------------------Latency---------------------
Mean Latency(s):                          23.50
Median Latency(s):                        21.13
P99 Latency(s):                           50.04
---------------Time to First Token----------------
Mean TTFT (ms):                          1826.53
Median TTFT (ms):                        1004.67
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5582.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.85
Median TPOT (ms):                        4.49
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.40
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.39
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            112.55
==================================================

Summary: Max Num Seqs 512 Total TPS = 11768.22, Max Num Seqs 256 Total TPS = 11019.18. Max Num Seqs 512 is faster by 749.05 tok/s (6.80%); Mean TPOT = 15.85 ms vs 44.58 ms, reduced by 28.73 ms (64.45%).

Max Num Seqs && Max Batched Tokens

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768
--max-num-seqs=512

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.33
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.07
Output token throughput (tok/s):         5115.71
Peak output token throughput (tok/s):    34751436.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11333.89
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.08
P99 Latency(s):                           51.69
---------------Time to First Token----------------
Mean TTFT (ms):                          1831.81
Median TTFT (ms):                        1345.90
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5161.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.39
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.92
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            116.48
==================================================

Max Num Seqs && Max Batched Tokens && Performance Mode

Batch Token 32k and Seqs 512

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=32768
--max-num-seqs=512

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  55.33
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.07
Output token throughput (tok/s):         5115.71
Peak output token throughput (tok/s):    34751436.57
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11333.89
----------------------Latency---------------------
Mean Latency(s):                          24.34
Median Latency(s):                        22.08
P95 Latency(s):                           N/A
P99 Latency(s):                           51.69
---------------Time to First Token----------------
Mean TTFT (ms):                          1831.81
Median TTFT (ms):                        1345.90
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5161.86
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.39
Median TPOT (ms):                        4.48
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.14
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.92
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            116.48
==================================================

Batch Token 48k and Seqs 512

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=49152
--max-num-seqs=512

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.48
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.36
Output token throughput (tok/s):         5223.82
Peak output token throughput (tok/s):    33459752.45
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11573.41
----------------------Latency---------------------
Mean Latency(s):                          23.96
Median Latency(s):                        21.63
P95 Latency(s):                           N/A
P99 Latency(s):                           50.92
---------------Time to First Token----------------
Mean TTFT (ms):                          2022.91
Median TTFT (ms):                        2480.42
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5146.54
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          16.20
Median TPOT (ms):                        5.63
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           124.01
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.04
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            111.00
==================================================

Batch Token 48k and Seqs 768

Profile: ShareGPT

Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-batched-tokens=49152
--max-num-seqs=768

Benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.07
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.49
Output token throughput (tok/s):         5248.67
Peak output token throughput (tok/s):    36318641.50
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11628.47
----------------------Latency---------------------
Mean Latency(s):                          23.72
Median Latency(s):                        21.75
P95 Latency(s):                           N/A
P99 Latency(s):                           50.48
---------------Time to First Token----------------
Mean TTFT (ms):                          1817.87
Median TTFT (ms):                        1821.59
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5041.22
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.65
Median TPOT (ms):                        4.57
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.59
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.23
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            114.09
==================================================

Summary: Batch Token 48k and Seqs 768 Total TPS = 11628.47, Batch Token 32k and Seqs 512 Total TPS = 11333.89. Batch Token 48k and Seqs 768 is faster by 294.57 tok/s (2.60%); Mean TPOT = 15.65 ms vs 16.39 ms, reduced by 0.74 ms (4.51%).

Summary of Optimization Options

Benchmark Cases	Optimized	Baseline
Choosing the Inference Engine	Total TPS: 11527.14 (+0.00%) Mean TPOT(ms): 15.12	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Prefix Cache	Total TPS: 11224.70 (-2.62%) Mean TPOT(ms): 16.66	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Speculative Decodng	Total TPS: 15059.89 (Success rate: 51.5%, optimization skipped) Mean TPOT(ms): 42.50	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Performance Mode	Total TPS: 11496.39 (-0.27%) Mean TPOT(ms): 16.41	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Max Num Seqs	Total TPS: 11532.64 (+0.05%) Mean TPOT(ms): 16.87	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Max Batched Tokens && Performance Mode	Total TPS: 11672.72 (+1.26%) Mean TPOT(ms): 16.53	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Max Num Seqs && Performance Mode	Total TPS: 11768.22 (+2.09%) Mean TPOT(ms): 15.85	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Max Num Seqs && Max Batched Tokens	Total TPS: 11333.89 (-1.68%) Mean TPOT(ms): 16.39	Total TPS: 11527.14 Mean TPOT(ms): 15.12
Max Num Seqs && Max Batched Tokens && Performance Mode	Total TPS: 11628.47 (+0.88%) Mean TPOT(ms): 15.65	Total TPS: 11527.14 Mean TPOT(ms): 15.12

Other Benchmark Cases

ShareGPT Profile

Baseline Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768

Baseline benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  54.74
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.27
Output token throughput (tok/s):         5202.94
Peak output token throughput (tok/s):    20132659.20
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11527.14
----------------------Latency---------------------
Mean Latency(s):                          24.11
Median Latency(s):                        21.90
P99 Latency(s):                           51.16
---------------Time to First Token----------------
Mean TTFT (ms):                          1604.23
Median TTFT (ms):                        646.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5737.27
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.12
Median TPOT (ms):                        3.42
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           127.68
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.45
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            118.73
==================================================

Optimized Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

Optimized benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  53.72
Total input tokens:                      342058
Total generated tokens:                  281412
Request throughput (req/s):              18.62
Output token throughput (tok/s):         5311.75
Peak output token throughput (tok/s):    23159852.52
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          11768.22
----------------------Latency---------------------
Mean Latency(s):                          23.50
Median Latency(s):                        21.13
P99 Latency(s):                           50.04
---------------Time to First Token----------------
Mean TTFT (ms):                          1826.53
Median TTFT (ms):                        1004.67
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           5582.79
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          15.85
Median TPOT (ms):                        4.49
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           123.40
---------------Inter-token Latency----------------
Mean ITL (ms):                           9.39
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            112.55
==================================================

Throughput Profile

Baseline Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768

Baseline benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  43.00
Total input tokens:                      1033932
Total generated tokens:                  128000
Request throughput (req/s):              23.26
Output token throughput (tok/s):         3285.25
Peak output token throughput (tok/s):    4418690.63
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          29822.16
----------------------Latency---------------------
Mean Latency(s):                          21.27
Median Latency(s):                        21.11
P99 Latency(s):                           36.40
---------------Time to First Token----------------
Mean TTFT (ms):                          4433.02
Median TTFT (ms):                        1510.44
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           14914.93
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          34.63
Median TPOT (ms):                        11.80
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           116.52
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

Optimized Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

Optimized benchmark result

============ Serving Benchmark Result ============
Successful requests:                     1000
Maximum request concurrency:             512
Benchmark duration (s):                  39.10
Total input tokens:                      1033932
Total generated tokens:                  128000
Request throughput (req/s):              25.55
Output token throughput (tok/s):         3797.28
Peak output token throughput (tok/s):    7724761.32
Peak concurrent requests:                512.00
Total Token throughput (tok/s):          34470.14
----------------------Latency---------------------
Mean Latency(s):                          19.38
Median Latency(s):                        19.24
P99 Latency(s):                           31.36
---------------Time to First Token----------------
Mean TTFT (ms):                          4731.56
Median TTFT (ms):                        2442.61
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           13309.82
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          36.97
Median TPOT (ms):                        19.08
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           103.98
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

Long Context Profile

Baseline Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768

Baseline benchmark result

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             9
Benchmark duration (s):                  100.89
Total input tokens:                      3200993
Total generated tokens:                  10000
Request throughput (req/s):              0.99
Output token throughput (tok/s):         100.96
Peak output token throughput (tok/s):    198.08
Peak concurrent requests:                9.00
Total Token throughput (tok/s):          32416.84
----------------------Latency---------------------
Mean Latency(s):                          7.88
Median Latency(s):                        8.10
P95 Latency(s):                           N/A
P99 Latency(s):                           8.54
---------------Time to First Token----------------
Mean TTFT (ms):                          1021.12
Median TTFT (ms):                        1020.12
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           1041.80
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          10.21
Median TPOT (ms):                        10.20
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           10.42
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

Optimized Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

Optimized benchmark result

============ Serving Benchmark Result ============
Successful requests:                     100
Maximum request concurrency:             14
Benchmark duration (s):                  100.13
Total input tokens:                      3200993
Total generated tokens:                  10000
Request throughput (req/s):              1.00
Output token throughput (tok/s):         101.71
Peak output token throughput (tok/s):    227.24
Peak concurrent requests:                14.00
Total Token throughput (tok/s):          32658.73
----------------------Latency---------------------
Mean Latency(s):                          8.00
Median Latency(s):                        8.00
P99 Latency(s):                           12.36
---------------Time to First Token----------------
Mean TTFT (ms):                          997.50
Median TTFT (ms):                        981.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           1421.73
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          9.97
Median TPOT (ms):                        9.81
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           14.22
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.00
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================

Generation Heavy Profile

Baseline Backend Parameters:

--reasoning-parser=qwen3
--max-model-len=32768

Baseline benchmark result

============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             18
Benchmark duration (s):                  214.96
Total input tokens:                      201982
Total generated tokens:                  400000
Request throughput (req/s):              0.93
Output token throughput (tok/s):         1975.75
Peak output token throughput (tok/s):    123795.17
Peak concurrent requests:                18.00
Total Token throughput (tok/s):          2973.42
----------------------Latency---------------------
Mean Latency(s):                          17.48
Median Latency(s):                        17.59
P99 Latency(s):                           17.60
---------------Time to First Token----------------
Mean TTFT (ms):                          54.95
Median TTFT (ms):                        55.17
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           59.50
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          0.33
Median TPOT (ms):                        0.03
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           8.79
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.31
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            8.77
==================================================

Optimized Backend Parameters:

--reasoning-parser=qwen3
--performance-mode=throughput
--max-model-len=32768
--max-num-seqs=512

Optimized benchmark result

============ Serving Benchmark Result ============
Successful requests:                     200
Maximum request concurrency:             18
Benchmark duration (s):                  214.98
Total input tokens:                      201982
Total generated tokens:                  400000
Request throughput (req/s):              0.93
Output token throughput (tok/s):         2010.10
Peak output token throughput (tok/s):    59750.47
Peak concurrent requests:                18.00
Total Token throughput (tok/s):          3025.11
----------------------Latency---------------------
Mean Latency(s):                          17.55
Median Latency(s):                        17.66
P99 Latency(s):                           17.67
---------------Time to First Token----------------
Mean TTFT (ms):                          55.85
Median TTFT (ms):                        56.01
P95 TTFT (ms):                           N/A
P99 TTFT (ms):                           60.00
-----Time per Output Token (excl. 1st token)------
Mean TPOT (ms):                          0.12
Median TPOT (ms):                        0.03
P95 TPOT (ms):                           N/A
P99 TPOT (ms):                           0.03
---------------Inter-token Latency----------------
Mean ITL (ms):                           0.09
Median ITL (ms):                         0.00
P95 ITL (ms):                            N/A
P99 ITL (ms):                            0.00
==================================================
